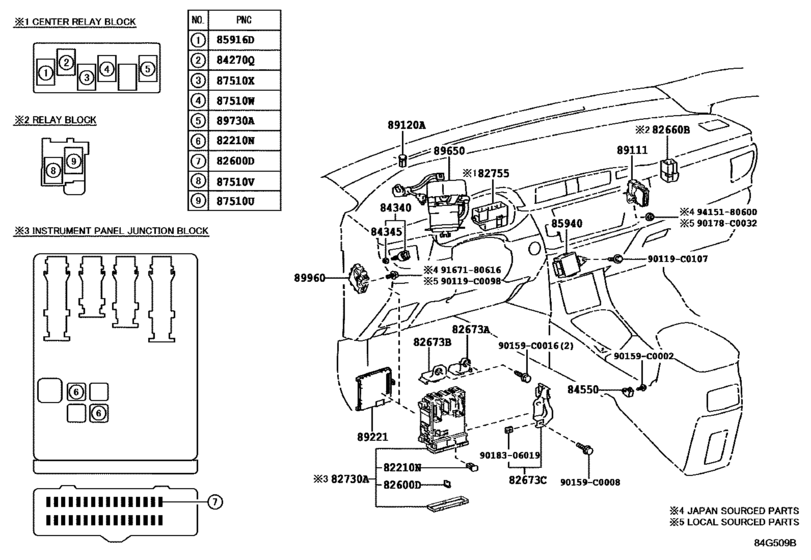

Switch & Relay & Computer ([12.2015 - ] COWL (1512- )ZWE182) Diagram Toyota COROLLA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ZWE182
- grade
- GLI
- body
- SED
- ENGINE
- 8ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 12.2015
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210N
|
82210N
90982-08306 Fusible Link[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 7.5A,MINI FUSE |
90982-09020 |
from US $0.92 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82673A
|
82673A
82673-02170
Bracket, Junction Block
[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 |
82673-02170 |
— | ||
|
82673B
|
82673B
82673-02180
Bracket, Junction Block
[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 |
82673-02180 |
— | ||
|
82673C
|
82673C
82673-02190
Bracket, Junction Block
[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 |
82673-02190 |
— | ||
|
82730A
|
82730A
82730-02Z70
Block Assy, Driver Side Junction
[12.2015 - 02.2016] ZWE182..GLI MOON ROOF PACKAGE |
82730-02Z70 |
— | ||
| replacement | |||||
|
82730A
|
82730A
82730-02Z71
Block Assy, Driver Side Junction
[12.2015 - 02.2016] ZWE182..GLI MOON ROOF PACKAGE |
82730-02Z71 |
— | ||
|
82730A
|
82730A
82730-02Z71
Block Assy, Driver Side Junction
[03.2016 - 03.2017] ZWE182..GLXI;NRE181,ZRE18#..GLI,GLXI,PREM; ZWE182..GLI MOON ROOF PACKAGE |
82730-02Z71 |
— | ||
|
82730A
|
82730A
82730-02Z80
Block Assy, Driver Side Junction
[06.2014 - 02.2016] ZRE181..GL;ZWE182..GLI |
82730-02Z80 |
— | ||
| replacement | |||||
|
82730A
|
82730A
82730-02Z81
Block Assy, Driver Side Junction
[06.2014 - 02.2016] ZRE181..GL;ZWE182..GLI |
82730-02Z81 |
— | ||
|
82730A
|
82730A
82730-02Z81
Block Assy, Driver Side Junction
[03.2016 - 03.2017] NRE181..GL;ZWE182..GLI |
82730-02Z81 |
— | ||
|
82755
|
82755
82755-02060
Block, Center Relay
[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 |
82755-02060 |
— | ||
|
84270Q
|
84270Q
90987-T2005
Relay, Water Pump
[06.2014 -] NRE181,ZRE18#,ZWE182 |
90987-T2005 |
— | ||
|
84340
|
84340
84340-09120
Switch Assy, Stop Lamp
[06.2014 - 08.2016] ZWE182;ZRE18#..GLXI,PREM; ZRE181..GLI LEATHER PACKAGE |
84340-09120 |
— | ||
|
84340
|
84340
84340-09240
Switch Assy, Stop Lamp
[08.2016 - 03.2017] ZWE182;NRE181,ZRE18#..GLXI,PREM; NRE181,ZRE181..GLI LEATHER PACKAGE |
84340-09240 |
— | ||
|
84345
|
84345
84345-0R010
Adjuster, Stop Lamp Switch Mounting
[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 |
84345-0R010 |
— | ||
|
84550
|
84550
84550-02050
Switch Assy, Parking Brake
[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 (L) |
84550-02050 |
— | ||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 (J) |
84550-33010 |
from US $18.39 |
||
|
85916D
|
85916D
90987-T2005
Relay, Water Pump
[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 |
90987-T2005 |
— | ||
|
89111
|
89111
89100-02010
Computer, Network Gateway
[12.2015 - 03.2017] ZWE182 |
89100-02010 |
— | ||
|
89111
|
89111
89100-02050
Computer, Network Gateway
[04.2017 -] ZWE182 |
89100-02050 |
— | ||
|
89120A
|
89120A
89121-0F030
Sensor, Automatic Light Control
[12.2015 - 03.2017] ZWE182..GLI MOON ROOF PACKAGE |
89121-0F030 |
— | ||
|
89221
|
89221
89220-02780
Computer, Multiplex Network Body
[12.2015 - 03.2017] ZWE182..GLI |
89220-02780 |
— | ||
|
89650
|
89650
89650-12C30
Computer Assy, Power Steering
[12.2015 - 03.2017] ZWE182 |
89650-12C30 |
— | ||
|
89650
|
89650
89650-12F10
Computer Assy, Power Steering
[04.2017 -] ZWE182 |
89650-12F10 |
— | ||
|
89730A
|
89730A
90987-T2005
Relay, Water Pump
[06.2014 - 03.2017] NRE181,ZRE18#,ZWE182..GLI,GLXI,PREM |
90987-T2005 |
— | ||
|
89960
|
89960
89960-12670
Computer Assy, Headlamp Leveling
[12.2015 - 03.2017] ZWE182 |
89960-12670 |
— | ||
|
89960
|
89960
89960-12740
Computer Assy, Headlamp Leveling
[04.2017 -] ZWE182 |
89960-12740 |
— | ||
|
90119C0098
|
90119C0098
90119-C0098
New Genuine Part
|
90119-C0098 |
— | ||
|
90119C0107
|
90119C0107
90119-C0107
New Genuine Part
|
90119-C0107 |
— | ||
|
90159C0002
|
90159C0002
90159-C0002
New Genuine Part
|
90159-C0002 |
— | ||
|
90159C0008
|
90159C0008
90159-C0008
New Genuine Part
|
90159-C0008 |
— | ||
|
90159C0016
|
90159C0016
90159-C0016
New Genuine Part
|
90159-C0016 |
— | ||
|
90178C0032
|
90178C0032
90178-C0032
Nut, Wire Adjusting, No.1
|
90178-C0032 |
— | ||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.86 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
