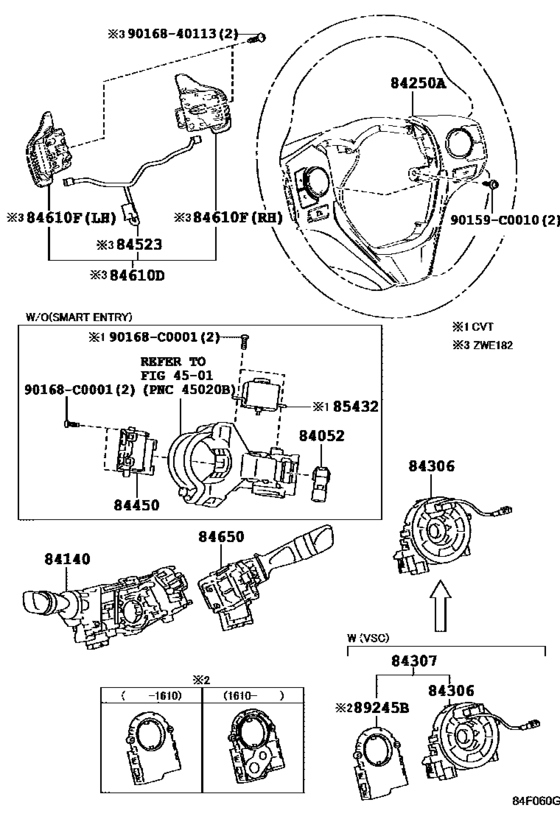

Switch & Relay & Computer ([06.2014 - ] STEERING (1406- )) Diagram Toyota COROLLA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ZWE182
- grade
- GLI
- body
- SED
- ENGINE
- 8ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 12.2015
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-02C00
Switch Assy, Headlamp Dimmer
[12.2015 - 03.2017] ZWE182..GLI MOON ROOF PACKAGE |
84140-02C00 |
— | ||
|
84140
|
84140
84140-02C50
Switch Assy, Headlamp Dimmer
[06.2014 - 03.2017] NRE181,ZRE181,ZWE182..GLI |
84140-02C50 |
— | ||
|
84250A
|
84250A
84250-02730-C0
Switch Assy, Steering Pad
[12.2015 - 03.2017] ZWE182..GLI BLACK,TRIM0#,2# |
84250-02730-C0 |
— | ||
|
84250A
|
84250A
84250-02B50-C0
Switch Assy, Steering Pad
[04.2017 -] ZRE182,ZWE182 BLACK,TRIM0#,2# |
84250-02B50-C0 |
— | ||
|
84306
|
84306
84308-02020
Cable Sub-Assy, Spiral
[06.2014 - 03.2017] ZWE182;NRE181,ZRE182..GLXI,PREM |
84308-02020 |
— | ||
|
84307
|
84307
84307-02250
Cable Sub-Assy, Spiral W/sensor
[06.2014 - 10.2016] ZRE182,ZWE182 |
84307-02250 |
— | ||
|
84307
|
84307
84307-02300
Cable Sub-Assy, Spiral W/sensor
[10.2016 - 03.2017] ZWE182;NRE181,ZRE182..GLXI,PREM; NRE181..GLI LEATHER PACKAGE |
84307-02300 |
— | ||
|
84523
|
84523
84523-42010 Wire, Switch No.1SWITCH NO.1 [12.2015 - 03.2017] ZWE182 |
84523-42010 |
US $14.50 |
||
|
84610D
|
84610D
84702-02030
Switch, Transmission Shift, Main
[12.2015 - 03.2017] ZWE182 |
84702-02030 |
— | ||
|
84610F
|
84610F
84610-12120 Switch Assy, Transmission Shift[12.2015 - 03.2017] ZWE182 LH |
84610-12120 |
US $34.07 |
||
|
84610F
|
84610F
84610-12130 Switch Assy, Transmission Shift[12.2015 - 03.2017] ZWE182 RH |
84610-12130 |
US $39.67 |
||
|
84650
|
84650
84652-02860
Switch Assy, Windshield Wiper
[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182..GL,GLI,GLXI |
84652-02860 |
— | ||
|
89245B
|
89245B
8924B-02020
Sensor, Steering
[06.2014 - 10.2016] ZRE182,ZWE182 |
8924B-02020 |
— | ||
|
89245B
|
89245B
8924B-0N010
Sensor, Steering
[10.2016 - 03.2017] NRE181,ZRE182,ZWE182 |
8924B-0N010 |
— | ||
|
90159C0010
|
90159C0010
90159-C0010
New Genuine Part
|
90159-C0010 |
— | ||
|
90168C0001
|
90168C0001
90168-C0001
New Genuine Part
|
90168-C0001 |
— | ||
|
9016840113
|
9016840113
90168-40113 Screw, Steering Wheel Pad Attaching |
90168-40113 |
US $0.96 |
