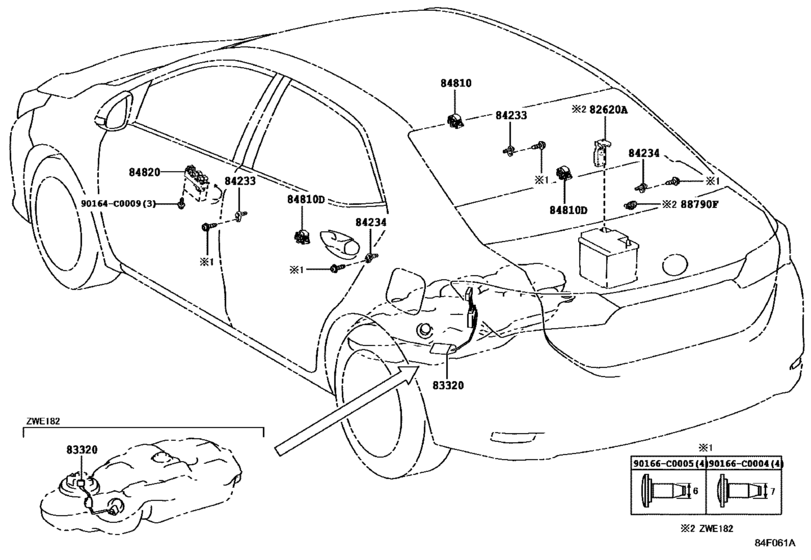

Switch & Relay & Computer ([06.2014 - ] DOOR,ROOF,FLOOR & LUGGAGE (1406- )) Diagram Toyota COROLLA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ZWE182
- grade
- GLI
- body
- SED
- ENGINE
- 8ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- CHI
- Model
- COROLLA (CHINA)
- From
- 12.2015
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82620A
|
82620A
82620-12300
Block Assy, Fusible Link
[12.2015 - 03.2017] ZWE182 |
82620-12300 |
— | ||
|
83320
|
83320
83320-02330
Gage Assy, Fuel Sender
[12.2015 - 03.2017] ZWE182 |
83320-02330 |
— | ||
|
84233
|
84233
84231-0R010
Switch Assy, Courtesy Lamp (For Front Door)
[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 |
84231-0R010 |
— | ||
|
84234
|
84234
84231-0R010
Switch Assy, Courtesy Lamp (For Front Door)
[06.2014 - 03.2017] ZRE182..CVT;NRE181,ZWE182 |
84231-0R010 |
— | ||
|
84810
|
84810
84810-0D080
Switch Assy, Power Window Regulator
[06.2014 -] NRE181,ZRE18#,ZWE182 |
84810-0D080 |
— | ||
|
84810D
|
84810D
84810-0D080
Switch Assy, Power Window Regulator
[06.2014 -] NRE181,ZRE18#,ZWE182 |
84810-0D080 |
— | ||
|
84820
|
84820
84820-02380
Master Switch Assy, Power Window Regulator
[06.2014 -] ZWE182..GLI;NRE181,ZRE181..GL |
84820-02380 |
— | ||
|
84820
|
84820
84820-0R050
Master Switch Assy, Power Window Regulator
[12.2015 - 03.2017] ZWE182..GLI MOON ROOF PACKAGE |
84820-0R050 |
— | ||
|
88790F
|
88790F
88790-0D020
Thermistor, Cooler (Ambient Temp. Sensor)
[12.2015 - 03.2017] ZWE182 (L) |
88790-0D020 |
— | ||
|
88790F
|
88790F
88790-22131 Thermistor, Cooler[12.2015 - 03.2017] ZWE182 (J) |
88790-22131 |
US $33.55 |
||
|
90164C0009
|
90164C0009
90164-C0009
New Genuine Part
|
90164-C0009 |
— | ||
|
90166C0004
|
90166C0004
90166-C0004
New Genuine Part
|
90166-C0004 |
— | ||
|
90166C0005
|
90166C0005
90166-C0005
New Genuine Part
|
90166-C0005 |
— |
