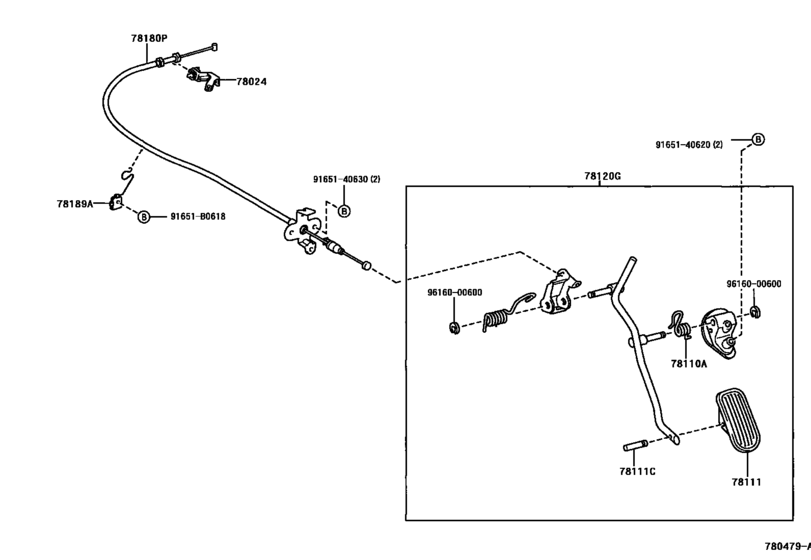

Accelerator Link ([05.2000 - ] (0005- )ZZE11#) Diagram Toyota COROLLA
- Year
- 2000 - 2002
- Sales region
- General
- Frame
- ZZE111
- grade
- XLI
- body
- SED
- ENGINE
- 4ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- TUR
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.2000
- To
- 01.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-12060 Bracket Sub-Assy, Accelerator Control CableACCELERATOR CONTROL CABLE [05.2000 - 01.2002] ZZE11# |
78024-12060 |
US $8.44 |
||
|
78110A
|
78110A
90508-26036 Spring (For Accelerator Pedal Rod)[05.1995 - 08.2002] ZZE11#;CE110..RHD..GEN;EE111..5F..(GEN,VEN) |
90508-26036 |
US $7.28 |
||
|
78111
|
78111
78111-20060 Pedal, Accelerator[02.2000 - 08.2002] ZZE11#;AE111,112,CE110,EE11#..LHD..(GCC,GEN,VEN) |
78111-20060 |
US $11.39 |
||
|
78111C
|
78111C
90254-04019 Pin (For Accelerator Pedal)[02.2000 - 08.2002] ZZE11#;AE111,112,CE110,EE11#..LHD..(GCC,GEN,VEN) |
90254-04019 |
US $1.12 |
||
|
78120G
|
78120G
78120-12201
Rod Assy, Accelerator Pedal
[09.1999 - 08.2002] ZZE11#;EE111..VEN |
78120-12201 |
— | ||
|
78180P
|
78180P
78180-1A690 Cable Assy, Accelerator ControlACCELERATOR CONTROL [05.2000 - 01.2002] ZZE11# |
78180-1A690 |
US $37.17 |
||
|
78189A
|
78189A
78189-12050 Support, Accelerator Control Cable, No.2ACCELERATOR CONTROL CABLE, NO.2 [05.2000 - 01.2002] ZZE11# |
78189-12050 |
US $8.59 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140630
|
9165140630
91651-40630 BOLT |
91651-40630 |
US $1.28 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
