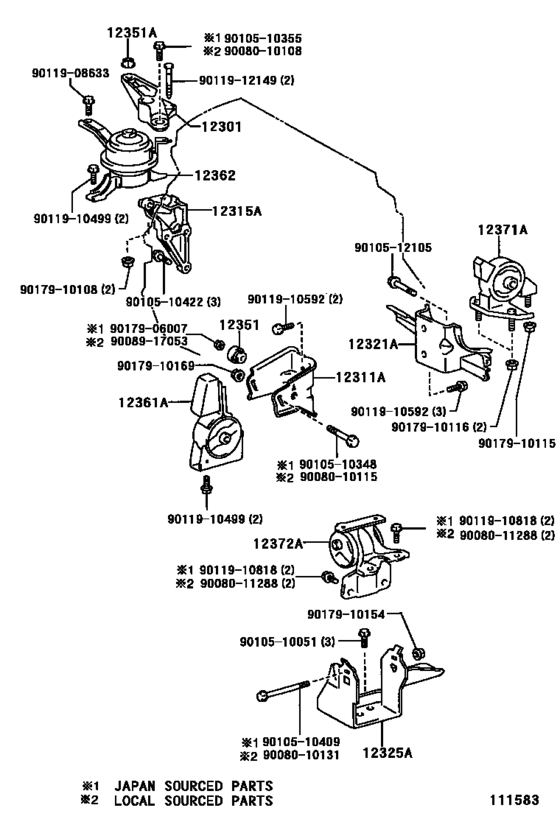

Mounting ([10.1999 - ] (9910- )3ZZFE..4FC) Diagram Toyota COROLLA
- Year
- 1999 - 2001
- Sales region
- Europe
- Frame
- ZZE112
- grade
- SOL
- body
- LB
- ENGINE
- 3ZZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 10.1999
- To
- 07.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12301
|
12301
12301-22040
Bracket Sub-Assy, Engine Mounting, Front Rh
[10.1999 - 11.2001] 3ZZFE,4ZZFE..ZZE11# |
12301-22040 |
— | ||
|
12311A
|
12311A
12311-22050
Bracket, Engine Mounting, Front(For Transverse Engine)
[10.1999 - 09.2001] 3ZZFE,4ZZFE..ZZE11#..JPP |
12311-22050 |
— | ||
|
12315A
|
12315A
12315-22010 Bracket, Engine Mounting, Rh(For Transverse Engine)ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) [10.1999 - 09.2001] 3ZZFE,4ZZFE..ZZE11#..JPP |
12315-22010 |
US $58.53 |
||
|
12321A
|
12321A
12321-22020
Bracket, Engine Mounting, Rear(For Transverse Engine)
[10.1999 - 11.2001] 3ZZFE..ZZE112..4FC |
12321-22020 |
— | ||
|
12325A
|
12325A
12325-15100 Bracket, Engine Mounting, Lh(For Transverse Engine)[10.1999 - 11.2001] 3ZZFE..ZZE112..4FC |
12325-15100 |
US $35.38 |
||
|
12351
|
12351
12351-15060 Damper, Engine Mounting[10.1999 - 11.2001] 3ZZFE,4ZZFE..ZZE11# |
12351-15060 |
US $8.21 |
||
|
12351A
|
12351A
12351-22040
Damper, Engine Mounting(For Insulator)
[10.1999 - 11.2001] 3ZZFE,4ZZFE..ZZE11# |
12351-22040 |
— | ||
|
12361A
|
12361A
12361-22020 Insulator, Engine Mounting, Front(For Transverse Engine)ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) [10.1999 - 11.2001] 3ZZFE..ZZE112..4FC |
12361-22020 |
US $70.18 |
||
|
12362
|
12362
12362-22020
Insulator, Engine Mounting, Rh(For Transverse Engine)
[10.1999 - 11.2001] 3ZZFE,4ZZFE..ZZE11# |
12362-22020 |
— | ||
|
12371A
|
12371A
12371-22050
Insulator, Engine Mounting, Rear
[10.1999 - 11.2001] 3ZZFE..ZZE112..4FC |
12371-22050 |
— | ||
|
12372A
|
12372A
12372-16400 Insulator, Engine Mounting, Lh(For Transverse Engine)ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) [10.1999 - 11.2001] 3ZZFE..ZZE112..4FC |
12372-16400 |
US $133.95 |
||
|
9008010108
|
9008010108
90080-10108
New Genuine Part
|
90080-10108 |
— | ||
|
9008010115
|
9008010115
90080-10115
New Genuine Part
|
90080-10115 |
— | ||
|
9008010131
|
9008010131
90080-10131
New Genuine Part
|
90080-10131 |
— | ||
|
9008011288
|
9008011288
90080-11288
New Genuine Part
|
90080-11288 |
— | ||
|
9008917053
|
9008917053
90089-17053
New Genuine Part
|
90089-17053 |
— | ||
|
9010510051
|
9010510051
90105-10051
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
|
90105-10051 |
— | ||
| replacement | |||||
|
9010510051
|
9010510051
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.56 |
||
|
9010510348
|
9010510348
90105-10348 BOLT WASHER BASED |
90105-10348 |
US $4.96 |
||
|
9010510355
|
9010510355
90105-10355 BOLT WASHER BASED |
90105-10355 |
US $2.62 |
||
|
9010510409
|
9010510409
90105-10409 New Genuine Part |
90105-10409 |
US $4.32 |
||
|
9010510422
|
9010510422
90105-10422 New Genuine Part |
90105-10422 |
US $2.33 |
||
|
9010512105
|
9010512105
90105-12105 Bolt, Hexagon(For Idler Arm Support Setting) |
90105-12105 |
US $3.64 |
||
|
9011908633
|
9011908633
90119-08633 New Genuine Part |
90119-08633 |
from US $1.60 |
||
|
9011910499
|
9011910499
90119-10499 BOLT WWASHER |
90119-10499 |
US $3.20 |
||
|
9011910592
|
9011910592
90119-10592 New Genuine Part |
90119-10592 |
US $3.20 |
||
|
9011910818
|
9011910818
90119-10818 BOLT WWASHER |
90119-10818 |
US $1.60 |
||
|
9011912149
|
9011912149
90119-12149 New Genuine Part |
90119-12149 |
US $3.20 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017910115
|
9017910115
90179-10115 New Genuine Part |
90179-10115 |
US $3.49 |
||
|
9017910116
|
9017910116
90179-10116 New Genuine Part |
90179-10116 |
US $3.20 |
||
|
9017910154
|
9017910154
90179-10154 NUT |
90179-10154 |
from US $1.01 |
||
|
9017910169
|
9017910169
90179-10169 NUT |
90179-10169 |
US $2.62 |
||
