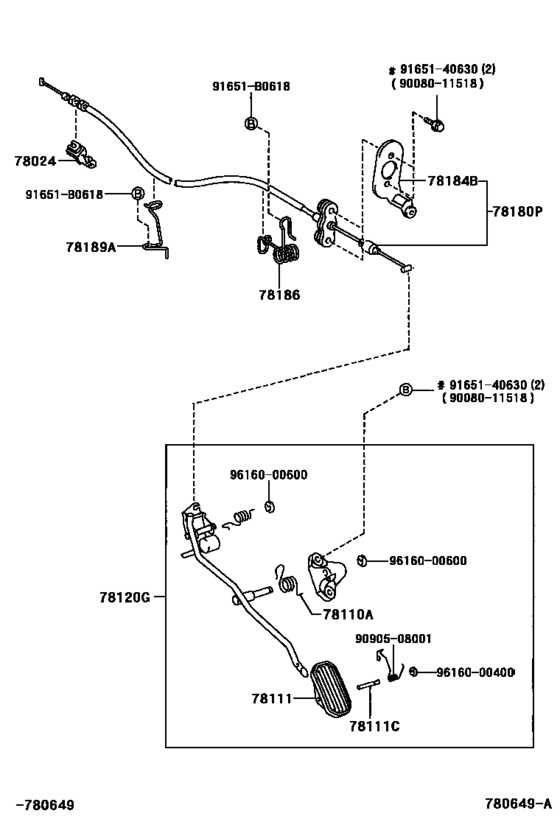

Accelerator Link ([01.2002 - 06.2004] (0201-0406)UKP..LHD..4FC) Diagram Toyota COROLLA
- Year
- 2002 - 2004
- Sales region
- Europe
- Frame
- ZZE121
- grade
- TERRA
- body
- WG
- ENGINE
- 3ZZFE
- TRANSMISSION
- ATM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2002
- To
- 06.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-12090 Bracket Sub-Assy, Accelerator Control CableACCELERATOR CONTROL CABLE [01.2002 - 06.2004] ZZE12#..UKP |
78024-12090 |
US $11.07 |
||
|
78110A
|
78110A
90508-26036 Spring (For Accelerator Pedal Rod)[01.2002 - 06.2004] ZZE12#..UKP..LHD |
90508-26036 |
US $7.28 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[01.2002 - 06.2004] ZZE121..UKP..LHD..4FC |
78111-32010 |
US $10.13 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[01.2002 - 06.2004] ZZE121..UKP..LHD..4FC |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-13030
Rod Assy, Accelerator Pedal
[01.2002 - 06.2004] ZZE121..UKP..LHD..4FC |
78120-13030 |
— | ||
|
78180P
|
78180P
78180-02250
Cable Assy, Accelerator Control
[01.2002 - 07.2003] ZZE12#..UKP..LHD |
78180-02250 |
— | ||
|
78180P
|
78180P
78180-02320
Cable Assy, Accelerator Control
[07.2003 - 06.2004] ZZE12#..UKP..LHD FRAME NO.=RXXXXXX |
78180-02320 |
— | ||
|
78184B
|
78184B
78184-02080
Bracket, Accelerator Control Cable
[01.2002 - 06.2004] ZZE12#..UKP..LHD |
78184-02080 |
— | ||
|
78186
|
78186
78186-13040 Support, Accelerator Control Cable, No.1ACCELERATOR CONTROL CABLE, NO.1 [01.2002 - 06.2004] ZZE12#..UKP..LHD |
78186-13040 |
US $9.03 |
||
|
78189A
|
78189A
78189-12100 Support, Accelerator Control Cable, No.2[01.2002 - 06.2004] ZZE12#..UKP |
78189-12100 |
US $8.44 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
9008011518
|
9008011518
90080-11518
New Genuine Part
|
90080-11518 |
— | ||
|
9090508001
|
9090508001
90905-08001 Spring (For Accelerator Pedal) |
90905-08001 |
US $2.18 |
||
|
9165140630
|
9165140630
91651-40630 BOLT |
91651-40630 |
US $1.28 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
