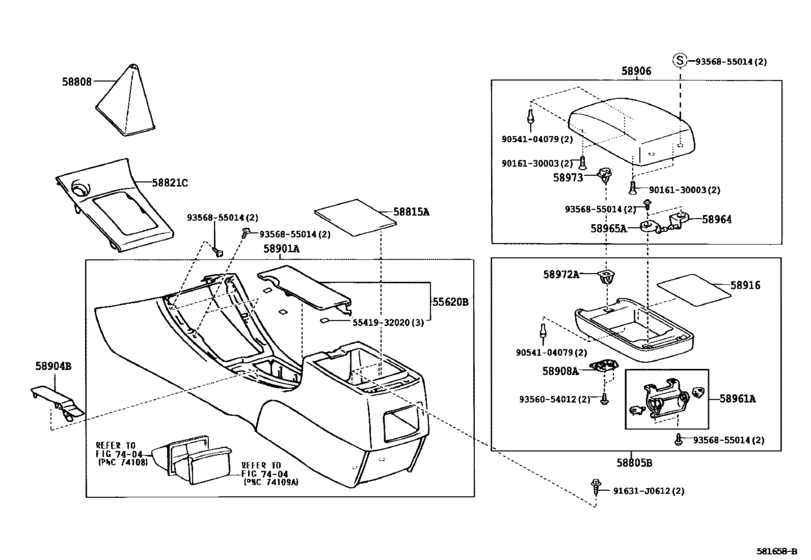

Console Box & Bracket ([09.2002 - ] (0209- )VEN) Diagram Toyota COROLLA
- Year
- 2002 - 2008
- Sales region
- General
- Frame
- ZZE121
- grade
- XLI
- body
- SED
- ENGINE
- 3ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- VEN
- Model
- COROLLA (S.AMERICA)
- From
- 09.2002
- To
- 09.2008
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55620B
|
55620B
55620-02070-B0
Holder, Instrument Panel Cup
[05.2002 - 05.2007] CDE120,ZZE12# STONE,TRIM1# |
55620-02070-B0 |
— | ||
|
58805B
|
58805B
58805-02030-B2
Panel Sub-Assy, Console, Lower
[09.2002 - 08.2005] ZZE121..VEN STONE,TRIM1# |
58805-02030-B2 |
— | ||
|
58805B
|
58805B
58805-02030-B3
Panel Sub-Assy, Console, Lower
[08.2005 -] ZZE121..VEN STONE,TRIM1# |
58805-02030-B3 |
— | ||
|
58808
|
58808
58808-02110-B0
Cover Sub-Assy, Shifting Hole
[05.2002 - 05.2007] CDE120,ZZE12#..MTM DK.GRAY,TRIM1# |
58808-02110-B0 |
— | ||
| replacement | |||||
|
58808
|
58808
58808-12180-B0 Cover Sub-Assy, Shifting Hole[05.2002 - 05.2007] CDE120,ZZE12#..MTM DK.GRAY,TRIM1# |
58808-12180-B0 |
US $42.05 |
||
|
58815A
|
58815A
58815-02070
Carpet, Console Box
[05.2002 - 08.2005] ZZE12#..VEN |
58815-02070 |
— | ||
|
58821C
|
58821C
58821-02210-B0
Panel, Console, Upper
[05.2002 - 05.2007] CDE120,ZZE12# DARK GRAY,TRIM1# |
58821-02210-B0 |
— | ||
|
58901A
|
58901A
58901-02150-B0
Box Sub-Assy, Console, Rear
[05.2002 - 05.2007] CDE120,ZZE12# STONE,TRIM1# |
58901-02150-B0 |
— | ||
|
58904B
|
58904B
58904-02070-B0
Cover Sub-Assy, Parking Brake Hole
[05.2002 - 05.2007] CDE120,ZZE12# STONE,TRIM1# |
58904-02070-B0 |
— | ||
|
58906
|
58906
58906-02040-B0
Door Sub-Assy, Upper Console
[09.2002 - 09.2004] ZZE121..VEN STONE,TRIM1# |
58906-02040-B0 |
— | ||
|
58906
|
58906
58906-02040-B1
Door Sub-Assy, Upper Console
[08.2005 -] ZZE121..VEN STONE,TRIM1# |
58906-02040-B1 |
— | ||
|
58906
|
58906
58906-02050-B1
Door Sub-Assy, Upper Console
[09.2004 - 08.2005] ZZE121..VEN STONE,TRIM1# |
58906-02050-B1 |
— | ||
|
58908A
|
58908A
58908-33030 Lock Sub-Assy, Console Compartment Door[05.2002 - 08.2005] ZZE12#..VEN |
58908-33030 |
from US $11.36 |
||
|
58916
|
58916
58916-02080
Mat, Box Bottom
[05.2002 - 08.2005] ZZE12#..VEN |
58916-02080 |
— | ||
|
58961A
|
58961A
58907-12050 Hinge Sub-Assy, Console Compartment Door[05.2002 - 08.2005] ZZE12#..VEN |
58907-12050 |
from US $15.78 |
||
|
58964
|
58964
58964-20040 Stopper, Console Compartment Door, No.1[05.2002 - 08.2005] ZZE12#..VEN |
58964-20040 |
from US $4.80 |
||
|
58965A
|
58965A
58965-20050 Stopper, Console Compartment Door, No.2[05.2002 - 08.2005] ZZE12#..VEN |
58965-20050 |
from US $4.06 |
||
|
58972A
|
58972A
58972-34010 Base, Console Compartment Door Lock[05.2002 - 08.2005] ZZE12#..VEN |
58972-34010 |
US $4.72 |
||
|
58973
|
58973
58973-34010 Pin, Console Compartment Door Lock[05.2002 - 08.2005] ZZE12#..VEN |
58973-34010 |
US $3.84 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
5541932020
|
5541932020
55419-32020 Cushion, Instrument Cluster Finish Panel |
55419-32020 |
US $1.88 |
||
|
9016130003
|
9016130003
90161-30003 SCREW COUNTERSUNK |
90161-30003 |
US $0.52 |
||
|
9054104079
|
9054104079
90541-04079 Cushion(For Glove Compartment Door) |
90541-04079 |
from US $1.22 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.70 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
