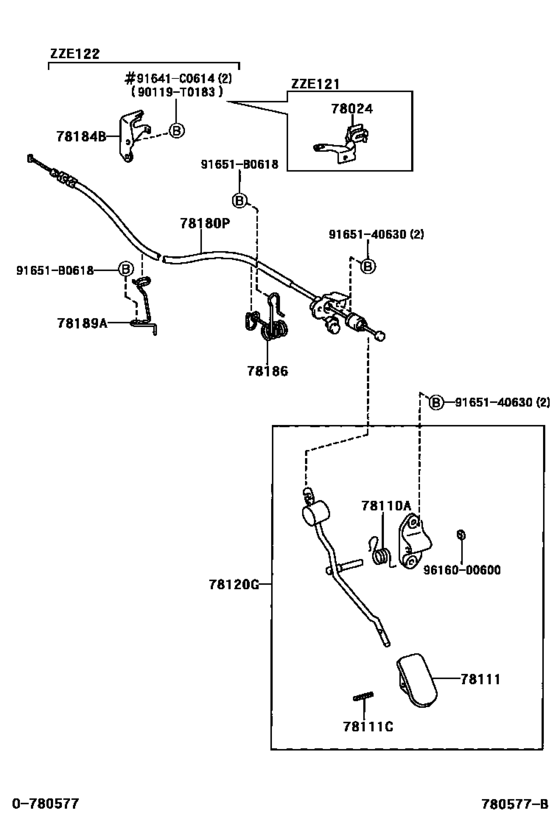

Accelerator Link ([03.2001 - ] (0103- )LHD) Diagram Toyota COROLLA
- Year
- 2001 - 2008
- Sales region
- General
- Frame
- ZZE121
- grade
- 16J
- ENGINE
- 3ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- Model
- COROLLA (ASIA/INDIA)
- From
- 07.2001
- To
- 02.2008
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-12090 Bracket Sub-Assy, Accelerator Control CableACCELERATOR CONTROL CABLE [03.2001 - 01.2004] ZZE121 |
78024-12090 |
US $11.07 |
||
|
78110A
|
78110A
90508-26036 Spring (For Accelerator Pedal Rod)[03.2001 - 03.2004] NZE120,ZZE12#..LHD |
90508-26036 |
US $7.28 |
||
|
78111
|
78111
78111-20060 Pedal, Accelerator[03.2001 - 03.2004] NZE120,ZZE12#..LHD |
78111-20060 |
US $11.39 |
||
|
78111C
|
78111C
90254-04019 Pin (For Accelerator Pedal)[03.2001 - 08.2005] NZE120,ZZE12# |
90254-04019 |
US $1.12 |
||
|
78120G
|
78120G
78120-12310 Rod Assy, Accelerator PedalACCELERATOR PEDAL [03.2001 - 03.2004] NZE120,ZZE12#..LHD |
78120-12310 |
US $58.24 |
||
|
78180P
|
78180P
78180-02210
Cable Assy, Accelerator Control
[03.2001 - 01.2004] ZZE121..LHD |
78180-02210 |
— | ||
|
78186
|
78186
78186-13040 Support, Accelerator Control Cable, No.1ACCELERATOR CONTROL CABLE, NO.1 [03.2001 - 03.2004] ZZE12#..LHD |
78186-13040 |
US $9.03 |
||
|
78189A
|
78189A
78189-02010
Support, Accelerator Control Cable, No.2
[03.2002 - 08.2005] NZE120,ZZE12#..IDN,MA,PHL,VN |
78189-02010 |
— | ||
|
78189A
|
78189A
78189-12100 Support, Accelerator Control Cable, No.2[03.2001 - 03.2002] NZE120,ZZE12#..IDN,MA,PHL,VN |
78189-12100 |
US $8.44 |
||
|
90119T0183
|
90119T0183
90119-T0183
BOLT WWASHER
|
90119-T0183 |
— | ||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
from US $0.72 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
9165140630
|
9165140630
91651-40630 BOLT |
91651-40630 |
US $1.28 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $1.07 |
