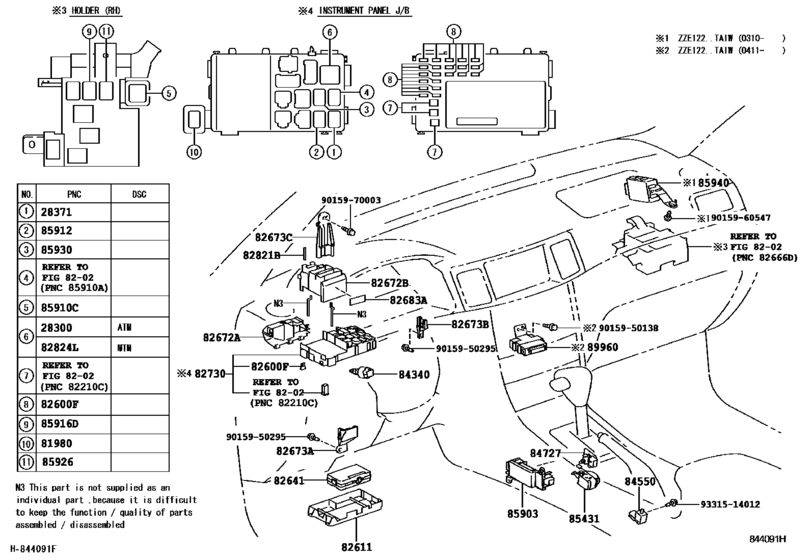

Switch & Relay & Computer ([03.2001 - ] COWL (0103- )LHD) Diagram Toyota COROLLA
- Year
- 2001 - 2008
- Sales region
- General
- Frame
- ZZE121
- grade
- 16J
- ENGINE
- 3ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- Model
- COROLLA (ASIA/INDIA)
- From
- 07.2001
- To
- 02.2008
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90080-87008
Relay Assy, Circuit Opening (For Efi)
[03.2001 - 01.2004] 1ZZFE,3ZZFE..ZZE12#..MA,PHL P/N LABEL=9008087008 |
90080-87008 |
— | ||
|
28371
|
28371
90080-87010 Relay, Ignition, No.1[03.2001 - 01.2004] 1ZZFE,3ZZFE..ZZE12#..MA,PHL P/N LABEL=9008087010 |
90080-87010 |
US $14.27 |
||
|
28371
|
28371
90080-87027
Relay, Lamp Cut
[10.2002 - 01.2004] 1ZZFE,3ZZFE..ZZE12#..MA,PHL P/N LABEL=9008087027 |
90080-87027 |
— | ||
| replacement | |||||
|
28371
|
28371
90080-87021
Relay, Lamp Cut
[10.2002 - 01.2004] 1ZZFE,3ZZFE..ZZE12#..MA,PHL P/N LABEL=9008087027 |
90080-87021 |
— | ||
|
81980
|
81980
81980-02020
Flasher Assy, Turn Signal
[03.2001 - 08.2005] NZE120,ZZE12# (L) |
81980-02020 |
— | ||
|
81980
|
81980
81980-50030 Flasher Assy, Turn Signal[03.2001 - 08.2005] NZE120,ZZE12# (J) |
81980-50030 |
from US $58.40 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[03.2001 - 01.2004] ZZE12#..MA,PHL 5A,MINI FUSE |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[03.2001 - 01.2004] ZZE12#..MA,PHL 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[03.2001 - 01.2004] ZZE12#..MA,PHL 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[03.2001 - 01.2004] ZZE12#..MA,PHL 15A,MINI FUSE |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[03.2001 - 01.2004] ZZE12#..MA,PHL 25A,MINI FUSE |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[03.2001 - 01.2004] ZZE12#..MA,PHL 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82611
|
82611
82611-12120
Cover, Fuse Block
[03.2001 - 01.2004] ZZE12#..MA,PHL |
82611-12120 |
— | ||
|
82641
|
82641
82641-02100 Relay, Integration No.1[12.2001 - 08.2005] ZZE122..MA,PHL,VN;ZZE12#..16E,16G,16J,18J (L) |
82641-02100 |
US $91.73 |
||
|
82641
|
82641
82641-12200 Relay, Integration No.1[12.2001 - 08.2005] ZZE122..MA,PHL,VN;ZZE12#..16E,16G,16J,18J (J) |
82641-12200 |
US $122.30 |
||
| replacement | |||||
|
82641
|
82641
82641-12320 Relay, Integration No.1[12.2001 - 08.2005] ZZE122..MA,PHL,VN;ZZE12#..16E,16G,16J,18J (J) |
82641-12320 |
from US $108.81 |
||
|
82672A
|
82672A
82672-12400 Cover, Junction Block[03.2001 - 01.2004] ZZE12#..MA,PHL |
82672-12400 |
US $13.54 |
||
|
82672B
|
82672B
82672-12410 Cover, Junction Block[03.2001 - 01.2004] ZZE12#..MA,PHL |
82672-12410 |
US $28.68 |
||
|
82673A
|
82673A
82673-12050 Bracket, Junction BlockJUNCTION BLOCK [03.2001 - 01.2004] ZZE12#..PHL |
82673-12050 |
US $10.19 |
||
|
82673B
|
82673B
82673-12060 Bracket, Junction BlockJUNCTION BLOCK [03.2001 - 01.2004] ZZE12#..PHL |
82673-12060 |
US $9.17 |
||
|
82673C
|
82673C
82673-12080 Bracket, Junction BlockJUNCTION BLOCK [03.2001 - 01.2004] ZZE12#..PHL |
82673-12080 |
US $13.98 |
||
|
82730
|
82730
82730-12150 Block Assy, Instrument Panel JunctionINSTRUMENT PANEL JUNCTION [03.2001 - 01.2004] ZZE12#..PHL |
82730-12150 |
US $362.54 |
||
|
82824L
|
82824L
82824-30140 Connector, Wiring HarnessSHORT [05.2001 - 11.2003] ZZE121..MTM..16J..PHL;NZE120,ZZE12#..MTM..(TH,VN) |
82824-30140 |
US $28.25 |
||
|
84340
|
84340
84340-04010
Switch Assy, Stop Lamp
[03.2001 - 01.2004] ZZE12#..MA,PHL |
84340-04010 |
— | ||
|
84340
|
84340
84340-04011
Switch Assy, Stop Lamp
[10.2003 - 12.2005] ZZE121..TH;ZZE121..MTM..PHL;ZZE122..IDN,MA,PHL,TH,VN;ZZE121..ATM..16E..(MA,PHL) |
84340-04011 |
— | ||
|
84340
|
84340
84340-47010 Switch Assy, Stop Lamp[12.2005 -] ZZE12#..IDN,TH; ZZE12#..PHL; ZZE12#..IND,MA,VN |
84340-47010 |
US $33.90 |
||
|
84550
|
84550
84550-02040
Switch Assy, Parking Brake
[03.2001 - 10.2003] ZZE121..PHL;ZZE121..16J..TAIW;NZE120,ZZE122..LHD |
84550-02040 |
— | ||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[03.2001 - 08.2005] NZE120,ZZE12# |
90987-04010 |
US $42.71 |
||
|
85912
|
85912
90080-87008
Relay Assy, Circuit Opening (For Efi)
[03.2001 - 08.2005] ZZE121..LHD..16J;ZZE122..IDN,MA,PHL,TH;NZE120,ZZE12#..(16,16E,16J,18J,J)..(IND,TH, VN) P/N LABEL=9008087008 |
90080-87008 |
— | ||
|
85912
|
85912
90080-87010 Relay, Ignition, No.1[03.2001 - 08.2005] ZZE121..16J..PHL;ZZE122..18G..TAIW;ZZE122..(18E,18J)..(IDN,TAIW);NZE120,ZZE12#..(1 6,16E,16J,18J,J)..(IND,TAIW,TH,VN) P/N LABEL=9008087010 |
90080-87010 |
US $14.27 |
||
|
85912
|
85912
90987-02020 Relay, Ignition, No.1[03.2001 - 08.2005] ZZE121..16J..PHL;ZZE121..16E..TAIW;NZE120,ZZE12#..(16,18J,J)..(IND,TH,VN);ZZE122.. (18E,18G)..(IDN,MA,PHL,TAIW,TH) P/N LABEL=9098702020 |
90987-02020 |
from US $50.84 |
||
|
85930
|
85930
90080-87008
Relay Assy, Circuit Opening (For Efi)
[03.2001 - 01.2004] ZZE12#..MA,PHL P/N LABEL=9008087008 |
90080-87008 |
— | ||
|
85930
|
85930
90080-87010 Relay, Ignition, No.1[03.2001 - 01.2004] ZZE12#..MA,PHL P/N LABEL=9008087010 |
90080-87010 |
US $14.27 |
||
|
85930
|
85930
90080-87027
Relay, Lamp Cut
[10.2002 - 01.2004] ZZE12#..MA,PHL P/N LABEL=9008087027 |
90080-87027 |
— | ||
| replacement | |||||
|
85930
|
85930
90080-87021
Relay, Lamp Cut
[10.2002 - 01.2004] ZZE12#..MA,PHL P/N LABEL=9008087027 |
90080-87021 |
— | ||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.12 |
||
|
9015950295
|
9015950295
90159-50295 New Genuine Part |
90159-50295 |
US $1.60 |
||
|
9015960547
|
9015960547
90159-60547 New Genuine Part |
90159-60547 |
US $0.70 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
