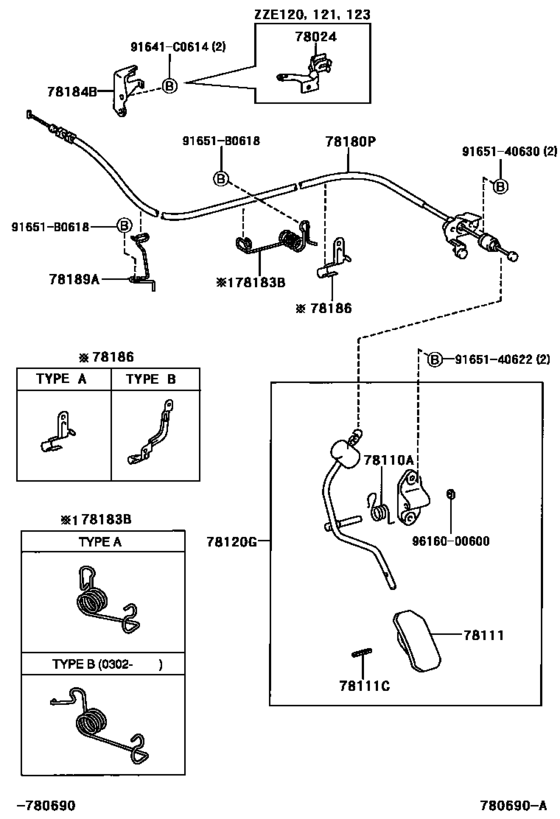

Accelerator Link ([08.2002 - 07.2007] (0208-0707)) Diagram Toyota COROLLA
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- ZZE121
- grade
- STD
- body
- SED
- ENGINE
- 3ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 08.2002
- To
- 08.2004
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-12090 Bracket Sub-Assy, Accelerator Control CableACCELERATOR CONTROL CABLE [08.2002 - 08.2004] ZZE120,121 |
78024-12090 |
US $11.07 |
||
|
78110A
|
78110A
90959-03307 Spring (For Accelerator Pedal Rod)[08.2002 - 08.2004] ZZE12# |
90959-03307 |
US $3.35 |
||
|
78111
|
78111
78111-32020 Pedal, Accelerator[08.2002 - 08.2004] ZZE12# |
78111-32020 |
US $8.44 |
||
|
78111C
|
78111C
90254-04019 Pin (For Accelerator Pedal)[08.2002 - 08.2004] ZZE12# |
90254-04019 |
US $1.12 |
||
|
78120G
|
78120G
78120-12290
Rod Assy, Accelerator Pedal
[08.2002 - 08.2004] ZZE120,121 |
78120-12290 |
— | ||
|
78180P
|
78180P
78180-13040 Cable Assy, Accelerator ControlACCELERATOR CONTROL [08.2002 - 12.2002] ZZE120,121 |
78180-13040 |
US $81.54 |
||
| replacement | |||||
|
78180P
|
78180P
78180-13041
Cable Assy, Accelerator Control
[08.2002 - 12.2002] ZZE120,121 |
78180-13041 |
— | ||
|
78180P
|
78180P
78180-13041
Cable Assy, Accelerator Control
[12.2002 - 08.2004] ZZE120,121 |
78180-13041 |
— | ||
|
78183B
|
78183B
78183-12240 Clamp, Accelerator Control Cable[08.2002 - 08.2004] ZZE123;ZZE120,121,122..SA TYPE A:REFER TO ILLUSTRATION |
78183-12240 |
US $4.22 |
||
| replacement | |||||
|
78183B
|
78183B
78183-13010 Clamp, Accelerator Control Cable[08.2002 - 08.2004] ZZE123;ZZE120,121,122..SA TYPE A:REFER TO ILLUSTRATION |
78183-13010 |
US $4.08 |
||
|
78186
|
78186
78186-12370 Support, Accelerator Control Cable, No.1[08.2002 - 08.2004] ZZE122..ARL;ZZE120,121,123;ZZE122..MTM..SA TYPE A:REFER TO ILLUSTRATION |
78186-12370 |
US $10.34 |
||
|
78186
|
78186
78186-12420 Support, Accelerator Control Cable, No.1ACCELERATOR CONTROL CABLE, NO.1 [08.2002 - 08.2004] ZZE120,121,122..SA..STD TYPE B:REFER TO ILLUSTRATION |
78186-12420 |
US $19.36 |
||
|
78189A
|
78189A
78189-12100 Support, Accelerator Control Cable, No.2[08.2002 - 08.2004] ZZE12# |
78189-12100 |
US $8.44 |
||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
from US $0.72 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
9165140622
|
9165140622
91651-40622 New Genuine Part |
91651-40622 |
US $0.67 |
||
|
9165140630
|
9165140630
91651-40630 BOLT |
91651-40630 |
US $1.28 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $1.07 |
||
