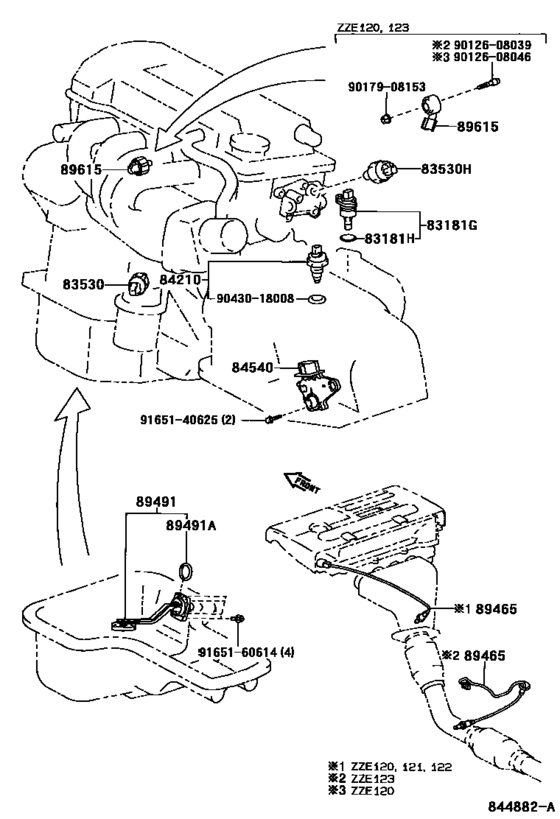

Switch & Relay & Computer ([08.2002 - 07.2007] ENGINE & TRANSMISSION (0208-0707)) Diagram Toyota COROLLA
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- ZZE121
- grade
- STD
- body
- SED
- ENGINE
- 3ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 08.2002
- To
- 08.2004
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-12020 Sensor, Speedometer[08.2002 - 08.2004] ZZE120,121;ZZE122..ARL;ZZE122..MTM..SA |
83181-12020 |
from US $169.48 |
||
|
83181H
|
83181H
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[08.2002 - 08.2004] ZZE120,121;ZZE122..ARL;ZZE122..MTM..SA |
96711-24030 |
from US $2.32 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[08.2002 - 08.2004] ZZE12# DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2002 - 08.2004] ZZE12# DENSO |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[08.2002 - 08.2004] ZZE12# DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2002 - 08.2004] ZZE12# YAZAKI |
83530-60020 |
from US $25.55 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[08.2002 - 08.2004] ZZE12#..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[08.2002 - 08.2004] ZZE12#..MTM |
84210-52050 |
from US $20.67 |
||
|
89465
|
89465
89465-02130
Oxygen Sensor
[08.2002 - 08.2004] ZZE121,122 |
89465-02130 |
— | ||
|
89615
|
89615
89615-12120 Sensor, Knock Control[08.2002 - 08.2004] ZZE121,122 |
89615-12120 |
from US $135.51 |
||
|
9012608039
|
9012608039
90126-08039 Bolt, Stud(For Oil Pan) |
90126-08039 |
US $3.84 |
||
|
9012608046
|
9012608046
90126-08046 New Genuine Part |
90126-08046 |
US $3.52 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
