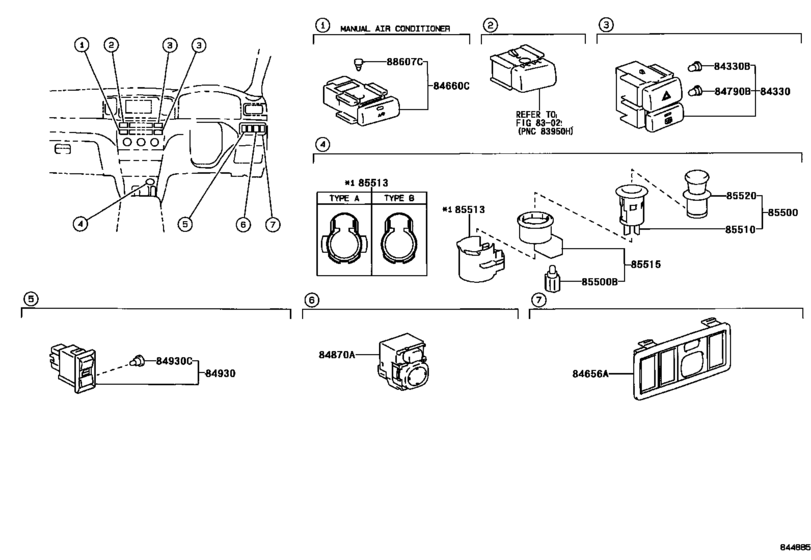

Switch & Relay & Computer ([08.2002 - 07.2007] INSTRUMENT PANEL (0208-0707)) Diagram Toyota COROLLA
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- ZZE121
- grade
- STD
- body
- SED
- ENGINE
- 3ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA (S.AFRICA)
- From
- 08.2002
- To
- 08.2004
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84330
|
84330
84332-12440 Switch Assy, Hazard Warning Signal[08.2002 - 08.2004] ZZE120,121,122 |
84332-12440 |
US $82.12 |
||
|
84330B
|
84330B
84999-10310 Bulb, Air Conditioner Control[08.2002 - 08.2004] ZZE120,121,122 14V 0.91W |
84999-10310 |
from US $2.93 |
||
|
84656A
|
84656A
84656-12090-A0 Bezel, Switch[08.2002 - 08.2004] ZZE121,123..STD;ZZE122..4D..ARL;ZZE122..MTM..SA IVORY,TRIM0# |
84656-12090-A0 |
US $15.43 |
||
| replacement | |||||
|
84656A
|
84656A
84656-12090-C0 Cover, Bezel Switch Hole[08.2002 - 08.2004] ZZE121,123..STD;ZZE122..4D..ARL;ZZE122..MTM..SA IVORY,TRIM0# |
84656-12090-C0 |
US $15.72 |
||
|
84656A
|
84656A
84656-12090-B0
Bezel, Switch
[08.2002 - 08.2004] ZZE121,122,123..MTM..SA W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM1# |
84656-12090-B0 |
— | ||
| replacement | |||||
|
84656A
|
84656A
84656-12090-C0 Cover, Bezel Switch Hole[08.2002 - 08.2004] ZZE121,122,123..MTM..SA W(ELECTRIC REMOTE CONTROL MIRROR),DK.GRAY,TRIM1# |
84656-12090-C0 |
US $15.72 |
||
|
84656A
|
84656A
84656-12110-B0 Bezel, SwitchSWITCH [08.2002 - 08.2004] ZZE120,121,122..SA DK.GRAY,TRIM1# |
84656-12110-B0 |
US $16.31 |
||
|
84660C
|
84660C
84660-12200 Switch, Cooler[08.2002 - 08.2004] ZZE120,121,122 |
84660-12200 |
US $72.45 |
||
|
84790B
|
84790B
90010-01060 Bulb(For Rear Window Defogger Switch)[08.2002 - 08.2004] ZZE120,121,122 14V0.84W,W(GREEN CAP) |
90010-01060 |
US $5.82 |
||
|
84870A
|
84870A
84872-52030 Switch Assy, Outer Mirror[08.2002 - 08.2004] ZZE122..ARL;ZZE121,123..STD;ZZE122..MTM..SA |
84872-52030 |
US $53.29 |
||
|
84930
|
84930
84930-52010 Switch Assy, Door Control[08.2002 - 08.2004] ZZE120,121;ZZE122..ARL;ZZE122..MTM..SA |
84930-52010 |
US $69.01 |
||
|
84930C
|
84930C
84999-10310 Bulb, Air Conditioner Control[08.2002 - 08.2004] ZZE120,121;ZZE122..ARL;ZZE122..MTM..SA 14V 0.91W |
84999-10310 |
from US $2.93 |
||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[08.2002 - 08.2004] ZZE12# |
85500-12240 |
from US $28.68 |
||
|
85500B
|
85500B
90010-01065
Bulb, Cigarette Lighter
[08.2002 - 08.2004] ZZE12# 14V 1.4W,W(GREEN CAP) |
90010-01065 |
— | ||
| replacement | |||||
|
85500B
|
85500B
84999-10250 Bulb, Key Cylinder Lamp[08.2002 - 08.2004] ZZE12# 14V 1.4W,W(GREEN CAP) |
84999-10250 |
from US $4.62 |
||
|
85510
|
85510
85510-16040 Socket & Retainer Assy, Cigarlighter[08.2002 - 08.2004] ZZE12# |
85510-16040 |
US $24.47 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[08.2002 - 08.2004] ZZE12# TYPE A:REFER ILLUST. |
85513-12020 |
from US $5.21 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[08.2002 - 08.2004] ZZE12# TYPE B:REFER ILLUST. |
85513-28010 |
from US $2.65 |
||
|
85515
|
85515
85515-12110 Stay, Cigarette Lighter Bezel[08.2002 - 08.2004] ZZE12# |
85515-12110 |
US $20.09 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[08.2002 - 08.2004] ZZE12# |
85520-28010 |
from US $17.90 |
||
|
88607C
|
88607C
90010-03044
Lamp Sub-Assy, Indicator
[08.2002 - 08.2004] ZZE120,121,122 14V0.84W,W(GREEN CAP) |
90010-03044 |
— | ||
