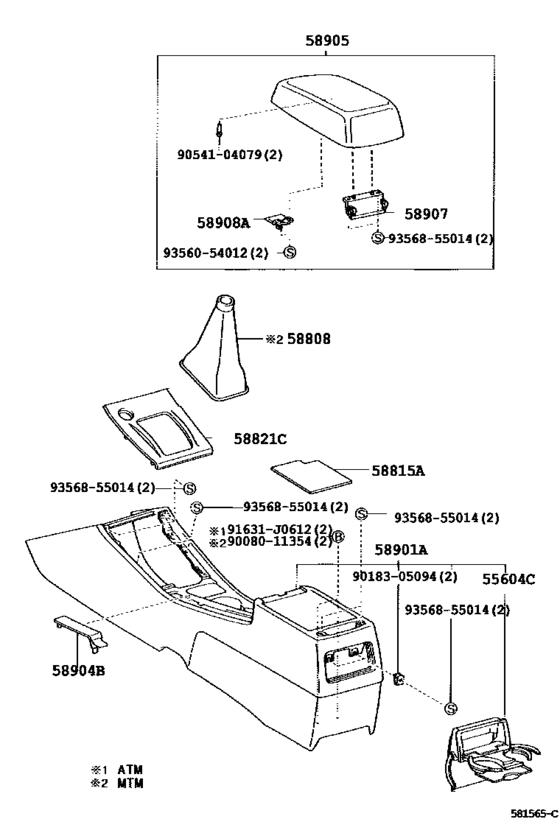

Console Box & Bracket ([04.2002 - ] (0204- )JPP..CE) Diagram Toyota COROLLA
- Year
- 2003 - 2004
- Sales region
- U.S.A.
- Frame
- ZZE130
- grade
- CE
- body
- SED
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA SED (JPP)
- From
- 04.2003
- To
- 05.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55604C
|
55604C
55604-AB010-B0 Holder Sub-Assy, Console Box CupCONSOLE BOX CUP [04.2002 - 05.2004] ZZE130..JPP STONE,TRIM1# |
55604-AB010-B0 |
US $48.48 |
||
|
55604C
|
55604C
55604-AB010-E0 Holder Sub-Assy, Console Box CupCONSOLE BOX CUP [04.2002 - 05.2004] ZZE130..JPP MD.NEUTRAL BONE,TRIM4# |
55604-AB010-E0 |
US $48.48 |
||
|
58808
|
58808
58808-12180-B1
Cover Sub-Assy, Shifting Hole
[04.2003 - 05.2004] ZZE130..JPP..5F DK. STONE,TRIM1# |
58808-12180-B1 |
— | ||
| replacement | |||||
|
58808
|
58808
58808-12180-B0 Cover Sub-Assy, Shifting Hole[04.2003 - 05.2004] ZZE130..JPP..5F DK. STONE,TRIM1# |
58808-12180-B0 |
US $42.05 |
||
|
58808
|
58808
58808-12180-E1 Cover Sub-Assy, Shifting HoleSHIFTING HOLE [04.2003 - 05.2004] ZZE130..JPP..5F DK.NEUTRAL BONE,TRIM4# |
58808-12180-E1 |
US $44.84 |
||
| replacement | |||||
|
58808
|
58808
58808-12180-B0 Cover Sub-Assy, Shifting Hole[04.2003 - 05.2004] ZZE130..JPP..5F DK.NEUTRAL BONE,TRIM4# |
58808-12180-B0 |
US $42.05 |
||
|
58815A
|
58815A
58815-02030
Carpet, Console Box
[04.2002 - 10.2003] ZZE130..JPP |
58815-02030 |
— | ||
|
58815A
|
58815A
58815-12090 Carpet, Console Box[10.2003 - 05.2004] ZZE130..JPP..4FC..USA (J); ZZE130..5F;ZZE130..CND (J) |
58815-12090 |
US $4.08 |
||
|
58821C
|
58821C
58821-02180-B2
Panel, Console, Upper
[04.2002 - 05.2004] ZZE130..JPP..CE DARK GRAY,TRIM1#,4# |
58821-02180-B2 |
— | ||
|
58901A
|
58901A
58901-02130-B0
Box Sub-Assy, Console, Rear
[04.2002 - 10.2003] ZZE130..JPP STONE,TRIM1# |
58901-02130-B0 |
— | ||
|
58901A
|
58901A
58901-02130-E0
Box Sub-Assy, Console, Rear
[04.2002 - 10.2003] ZZE130..JPP MD.NEUTRAL BONE,TRIM4# |
58901-02130-E0 |
— | ||
|
58901A
|
58901A
58901-12530-B0
Box Sub-Assy, Console, Rear
[10.2003 - 05.2004] ZZE130..JPP STONE,TRIM1#,(J) |
58901-12530-B0 |
— | ||
|
58901A
|
58901A
58901-12530-E0
Box Sub-Assy, Console, Rear
[10.2003 - 05.2004] ZZE130..JPP MD.NEUTRAL BONE,TRIM4#,(J) |
58901-12530-E0 |
— | ||
|
58904B
|
58904B
58904-02060-B0
Cover Sub-Assy, Parking Brake Hole
[04.2003 - 05.2004] ZZE130..JPP..5F STONE,TRIM1# |
58904-02060-B0 |
— | ||
|
58904B
|
58904B
58904-02060-E0
Cover Sub-Assy, Parking Brake Hole
[04.2003 - 05.2004] ZZE130..JPP..5F MD.NEUTRAL BONE,TRIM4# |
58904-02060-E0 |
— | ||
|
58905
|
58905
58905-02220-B0
Door Sub-Assy, Console Compartment
[04.2002 - 05.2004] ZZE130..JPP..CE STONE,TRIM1# |
58905-02220-B0 |
— | ||
|
58905
|
58905
58905-02220-E0
Door Sub-Assy, Console Compartment
[04.2002 - 05.2004] ZZE130..JPP..CE MD.NEUTRAL BONE,TRIM4# |
58905-02220-E0 |
— | ||
|
58907
|
58907
58907-02020 Hinge Sub-Assy, Console Compartment Door[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
58907-02020 |
US $24.32 |
||
|
58908A
|
58908A
58908-02020 Lock Sub-Assy, Console Compartment Door[04.2002 - 05.2004] ZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND |
58908-02020 |
US $6.99 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9008011354
|
9008011354
90080-11354 New Genuine Part |
90080-11354 |
US $0.52 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9054104079
|
9054104079
90541-04079 Cushion(For Glove Compartment Door) |
90541-04079 |
from US $1.22 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.70 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
