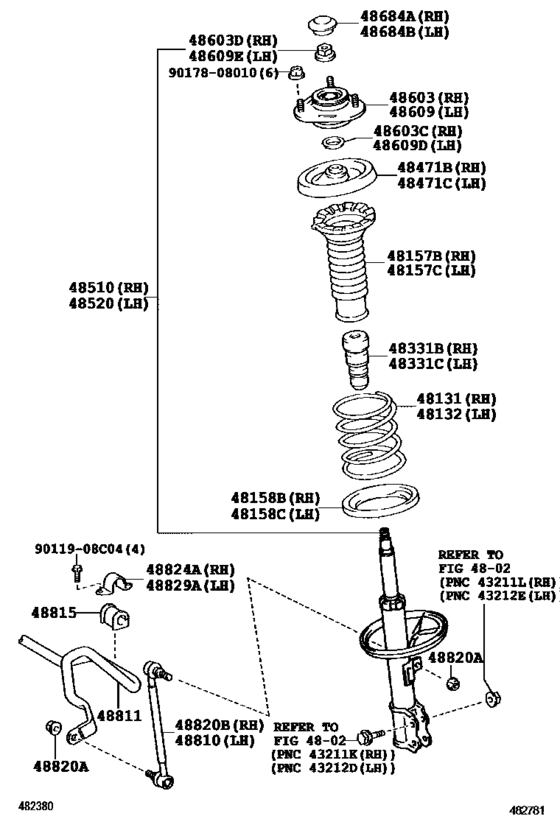

Front Spring & Shock Absorber ([03.2008 - ] (0803- )) Diagram Toyota COROLLA
- Year
- 2009 - 2014
- Sales region
- U.S.A.
- Frame
- ZZE142
- grade
- XEI
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- VEN
- Model
- COROLLA (S.AMERICA)
- From
- 06.2009
- To
- 11.2014
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CNG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-02F70
Spring, Front Coil, Rh
[09.2008 - 05.2011] ZZE142..MTM..CNG |
48131-02F70 |
— | ||
|
48132
|
48132
48131-02F70
Spring, Front Coil, Rh
[09.2008 - 05.2011] ZZE142..MTM..CNG |
48131-02F70 |
— | ||
|
48157B
|
48157B
48157-02080
Insulator, Front Coil Spring, Upper Rh
[03.2008 - 05.2011] ZZE142..CNG |
48157-02080 |
— | ||
|
48157C
|
48157C
48157-02080
Insulator, Front Coil Spring, Upper Rh
[03.2008 - 05.2011] ZZE142..CNG |
48157-02080 |
— | ||
|
48158B
|
48158B
48158-02070
Insulator, Front Coil Spring, Lower Rh
[03.2008 - 05.2011] ZZE142..CNG |
48158-02070 |
— | ||
|
48158C
|
48158C
48158-02070
Insulator, Front Coil Spring, Lower Rh
[03.2008 - 05.2011] ZZE142..CNG |
48158-02070 |
— | ||
|
48331B
|
48331B
48331-02060
Bumper, Front Spring, Rh
[03.2008 - 05.2011] ZZE142..CNG |
48331-02060 |
— | ||
|
48331C
|
48331C
48331-02060
Bumper, Front Spring, Rh
[03.2008 - 05.2011] ZZE142..CNG |
48331-02060 |
— | ||
|
48471B
|
48471B
48044-02140
Seat, Front Coil Spring, Upper Rh
[09.2008 - 05.2011] ZZE142..CNG |
48044-02140 |
— | ||
|
48471C
|
48471C
48044-02140
Seat, Front Coil Spring, Upper Rh
[09.2008 - 05.2011] ZZE142..CNG |
48044-02140 |
— | ||
|
48510
|
48510
48510-09Y80
Absorber Assy, Shock, Front Rh
[06.2009 - 05.2011] ZZE142..CNG MARK 48510-02810 |
48510-09Y80 |
— | ||
|
48520
|
48520
48520-09R60
Absorber Assy, Shock, Front Lh
[06.2009 - 05.2011] ZZE142..CNG MARK 48520-02810 |
48520-09R60 |
— | ||
|
48603
|
48603
48609-02200
Support Sub-Assy, Front Suspension
[03.2008 - 05.2011] ZZE142..CNG |
48609-02200 |
— | ||
| replacement | |||||
|
48603
|
48603
48609-02201 Support Sub-Assy, Front Suspension[03.2008 - 05.2011] ZZE142..CNG |
48609-02201 |
US $75.93 |
||
|
48603C
|
48603C
90303-22002 Seal, Dust(For Front Suspension Support)[03.2008 - 05.2011] ZZE142..CNG |
90303-22002 |
from US $3.20 |
||
|
48603D
|
48603D
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[03.2008 - 05.2011] ZZE142..CNG |
90179-14015 |
from US $1.93 |
||
|
48609
|
48609
48609-02200
Support Sub-Assy, Front Suspension
[03.2008 - 05.2011] ZZE142..CNG |
48609-02200 |
— | ||
| replacement | |||||
|
48609
|
48609
48609-02201 Support Sub-Assy, Front Suspension[03.2008 - 05.2011] ZZE142..CNG |
48609-02201 |
US $75.93 |
||
|
48609D
|
48609D
90303-22002 Seal, Dust(For Front Suspension Support)[03.2008 - 05.2011] ZZE142..CNG |
90303-22002 |
from US $3.20 |
||
|
48609E
|
48609E
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[03.2008 - 05.2011] ZZE142..CNG |
90179-14015 |
from US $1.93 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[03.2008 - 05.2011] ZZE142..CNG |
48684-52010 |
US $9.60 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[03.2008 - 05.2011] ZZE142..CNG |
48684-52010 |
US $9.60 |
||
|
48810
|
48810
48820-47010 Link Assy, Front Stabilizer[09.2008 - 05.2011] ZZE142..CNG |
48820-47010 |
from US $75.74 |
||
|
48811
|
48811
48811-02250
Bar, Stabilizer, Front
[03.2008 - 05.2011] ZZE142..CNG |
48811-02250 |
— | ||
|
48815
|
48815
48815-12360 Bush, Front Stabilizer Bar, No.1[03.2008 - 05.2011] ZZE142..CNG |
48815-12360 |
from US $7.95 |
||
|
48820A
|
48820A
90179-12151 Nut(For Front Stabilizer Link)[03.2008 - 05.2011] ZZE142..CNG |
90179-12151 |
from US $0.96 |
||
|
48820B
|
48820B
48820-47010 Link Assy, Front Stabilizer[09.2008 - 05.2011] ZZE142..CNG |
48820-47010 |
from US $75.74 |
||
|
48824A
|
48824A
48824-02070
Bracket, Front Stabilizer, No.1 Rh
[09.2008 - 05.2011] ZZE142..CNG |
48824-02070 |
— | ||
|
48829A
|
48829A
48824-02070
Bracket, Front Stabilizer, No.1 Rh
[09.2008 - 05.2011] ZZE142..CNG |
48824-02070 |
— | ||
|
9011908C04
|
9011908C04
90119-08C04 BOLT WWASHER |
90119-08C04 |
US $1.28 |
||
|
9017808010
|
9017808010
90178-08010 Nut(For Front Suspension Support) |
90178-08010 |
from US $1.07 |
||
