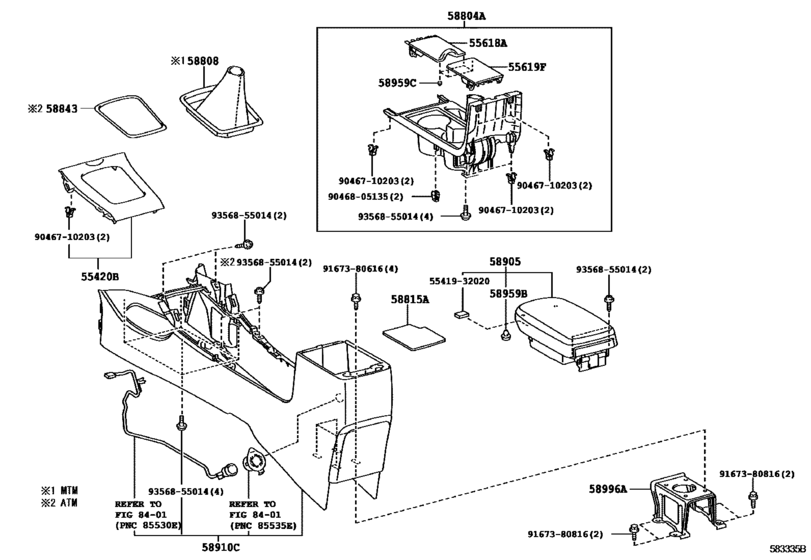

Console Box & Bracket ([03.2008 - ] (0803- )) Diagram Toyota COROLLA
- Year
- 2009 - 2014
- Sales region
- General
- Frame
- ZZE142
- grade
- XEI
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- VEN
- Model
- COROLLA (S.AMERICA)
- From
- 06.2009
- To
- 11.2014
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CNG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55420B
|
55420B
55420-02540
Panel Assy, Instrument Cluster Finish, Center No.1
[03.2011 -] ZRE142..XLI;ZZE142..XEI..CNG |
55420-02540 |
— | ||
|
55420B
|
55420B
55420-02540-B0
Panel Assy, Instrument Cluster Finish, Center No.1
[03.2008 - 05.2011] ZZE142..XEI..CNG DARK GRAY,TRIM1# |
55420-02540-B0 |
— | ||
|
55618A
|
55618A
55618-02150-B0
Holder, Console Box Cup
[03.2008 - 05.2011] ZZE142..CNG GRAY,TRIM1# |
55618-02150-B0 |
— | ||
|
55619F
|
55619F
55619-02160-B0
Holder, Console Box Cup, No.2
[03.2008 - 05.2011] ZZE142..CNG GRAY,TRIM1# |
55619-02160-B0 |
— | ||
|
58804A
|
58804A
58804-02130-B1
Panel Sub-Assy, Console, Upper
[03.2008 - 05.2011] ZZE142..CNG GRAY,TRIM1# |
58804-02130-B1 |
— | ||
|
58808
|
58808
58808-02220-B1
Cover Sub-Assy, Shifting Hole
[03.2008 - 05.2011] ZZE142..MTM..CNG DK.GRAY,TRIM1# |
58808-02220-B1 |
— | ||
|
58815A
|
58815A
58815-02180
Carpet, Console Box
[03.2008 - 05.2011] ZZE142..CNG |
58815-02180 |
— | ||
|
58905
|
58905
58905-02590-B0
Door Sub-Assy, Console Compartment
[09.2008 - 05.2011] ZZE142..CNG GRAY,TRIM1# |
58905-02590-B0 |
— | ||
|
58910C
|
58910C
58910-02170-B0
Box Assy, Console, Rear
[03.2008 - 05.2011] ZZE142..CNG GRAY,TRIM1# |
58910-02170-B0 |
— | ||
|
58959B
|
58959B
58959-60060 Cushion, Instrument Panel[03.2008 - 05.2011] ZZE142..CNG |
58959-60060 |
from US $1.44 |
||
|
58959C
|
58959C
58959-12040
Cushion, Console Compartment Door
[03.2008 - 05.2011] ZZE142..CNG |
58959-12040 |
— | ||
|
58996A
|
58996A
58996-02110
Bracket, Console Box Mounting, No.2
[03.2008 - 05.2011] ZZE142..CNG |
58996-02110 |
— | ||
|
5541932020
|
5541932020
55419-32020 Cushion, Instrument Cluster Finish Panel |
55419-32020 |
US $1.88 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.96 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9167380816
|
9167380816
91673-80816 Bolt (For Transmission Control Cable Bracket) |
91673-80816 |
from US $0.72 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
