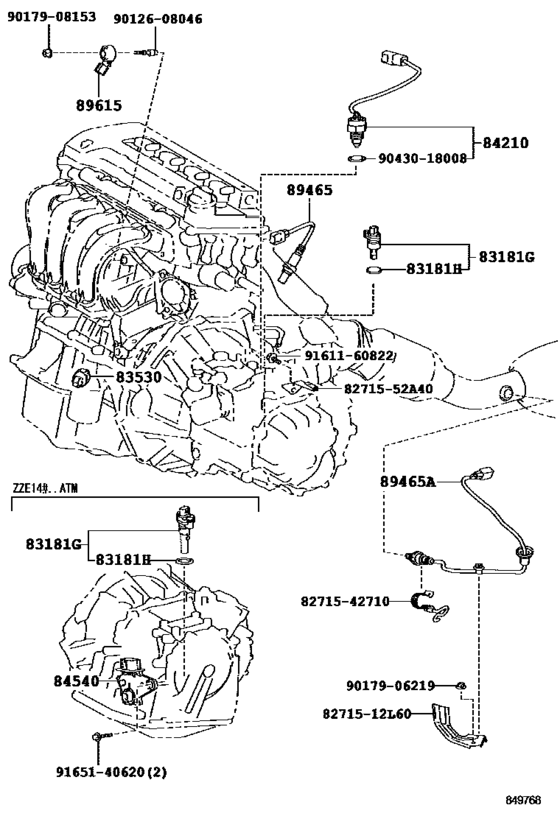

Switch & Relay & Computer ([03.2008 - ] ENGINE & TRANSMISSION (0803- )ZZE14#) Diagram Toyota COROLLA
- Year
- 2009 - 2014
- Sales region
- General
- Frame
- ZZE142
- grade
- XEI
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- VEN
- Model
- COROLLA (S.AMERICA)
- From
- 06.2009
- To
- 11.2014
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CNG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.2008 - 05.2011] ZZE142..CNG |
83530-60020 |
from US $25.55 |
||
|
84210
|
84210
84210-52010 Switch Assy, Back-Up Lamp[03.2008 - 05.2011] ZZE14#..MTM |
84210-52010 |
from US $22.80 |
||
|
89465
|
89465
89467-12100 Sensor, Air Fuel Ratio[03.2008 - 05.2011] ZZE142..CNG |
89467-12100 |
from US $193.40 |
||
|
89465A
|
89465A
89465-02200
Sensor, Oxygen No.2
[03.2008 - 05.2011] ZZE142..CNG |
89465-02200 |
— | ||
|
89615
|
89615
89615-20090 Sensor, Knock Control[03.2008 - 05.2011] ZZE142..CNG |
89615-20090 |
from US $36.02 |
||
|
8271512L60
|
8271512L60
82715-12L60
Bracket,wiring Harness Clamp
|
82715-12L60 |
— | ||
|
8271552A40
|
8271552A40
82715-52A40
Bracket,wiring Harness Clamp
|
82715-52A40 |
— | ||
|
8271542710
|
8271542710
82715-42710 Bracket,wiring Harness Clamp |
82715-42710 |
US $2.80 |
||
|
9012608046
|
9012608046
90126-08046 New Genuine Part |
90126-08046 |
US $3.52 |
||
|
9017906219
|
9017906219
90179-06219 Nut |
90179-06219 |
from US $1.05 |
||
| replacement | |||||
|
9017906219
|
9017906219
90182-A0005 Nut |
90182-A0005 |
US $2.22 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
