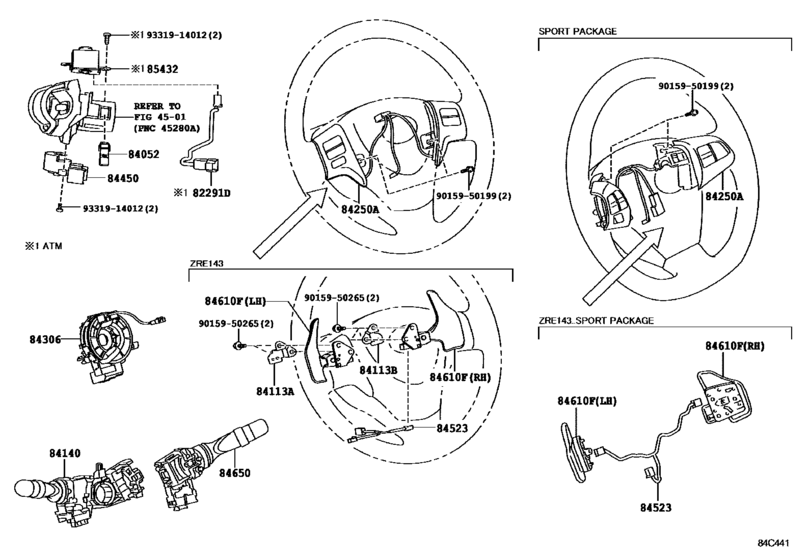

Switch & Relay & Computer ([03.2008 - ] STEERING (0803- )) Diagram Toyota COROLLA
- Year
- 2009 - 2014
- Sales region
- General
- Frame
- ZZE142
- grade
- XEI
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- VEN
- Model
- COROLLA (S.AMERICA)
- From
- 06.2009
- To
- 11.2014
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CNG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-71010 Switch Assy, Un-Lock Warning[03.2008 - 05.2011] ZRE143,ZZE14# |
84052-71010 |
US $25.68 |
||
|
84140
|
84140
84140-02221
Switch Assy, Headlamp Dimmer
[09.2008 - 05.2011] ZZE142..XEI..CNG |
84140-02221 |
— | ||
|
84306
|
84306
84306-02230
Cable Sub-Assy, Spiral
[03.2008 - 05.2011] ZZE142..XEI..CNG |
84306-02230 |
— | ||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[03.2008 - 05.2011] ZRE143,ZZE14# |
84450-12200 |
from US $49.25 |
||
|
84650
|
84650
84652-0K111
Switch Assy, Windshield Wiper
[07.2008 - 05.2011] ZZE142..XEI..CNG |
84652-0K111 |
— | ||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
|
9015950265
|
9015950265
90159-50265 New Genuine Part |
90159-50265 |
US $1.12 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
