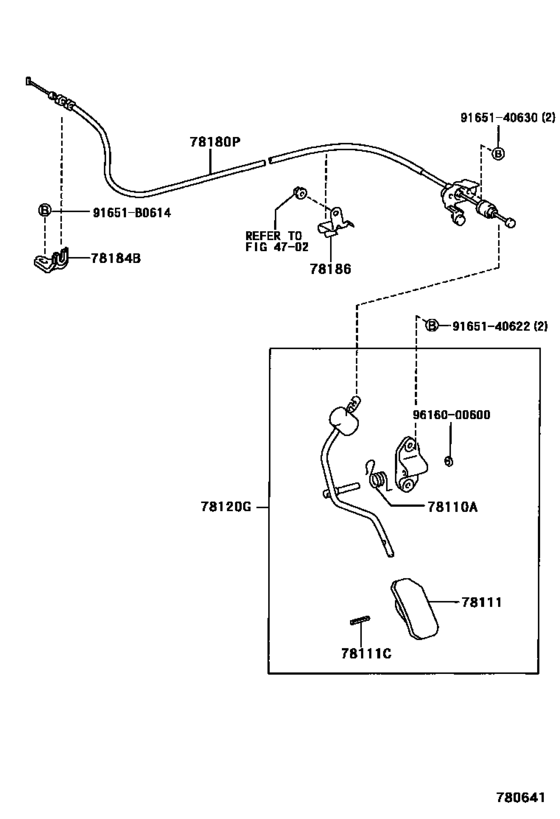

Accelerator Link ([10.2001 - ] (0110- )CE120..RHD) Diagram Toyota COROLLA ALTIS
- Year
- 2002 - 2008
- Sales region
- General
- Frame
- CE120
- grade
- 20D
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- PKN
- From
- 02.2002
- To
- 08.2008
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
90959-03307 Spring (For Accelerator Pedal Rod)[08.2000 - 07.2005] CE120,NZE12#,ZZE12#..RHD |
90959-03307 |
US $3.35 |
||
|
78111
|
78111
78111-32020 Pedal, Accelerator[08.2000 - 07.2005] CE120,NZE12#,ZZE12#..RHD |
78111-32020 |
US $8.44 |
||
|
78111C
|
78111C
90254-04019 Pin (For Accelerator Pedal)[08.2000 - 07.2005] CE120,NZE12#,ZZE12# |
90254-04019 |
US $1.12 |
||
|
78120G
|
78120G
78120-12340 Rod Assy, Accelerator Pedal[10.2001 - 07.2005] NZE120..PKN;CE120,ZZE12#..RHD..(20D,20DSA,CONQ,GLI,SESAL,ULT,XLI) |
78120-12340 |
US $41.35 |
||
|
78180P
|
78180P
78180-1A810
Cable Assy, Accelerator Control
[10.2001 - 07.2005] CE120..RHD |
78180-1A810 |
— | ||
|
78184B
|
78184B
78024-32140 Bracket Sub-Assy, Accelerator Control Cable[10.2001 - 07.2005] CE120 |
78024-32140 |
US $20.24 |
||
|
78186
|
78186
78186-12410 Support, Accelerator Control Cable, No.1[10.2001 - 07.2005] CE120..RHD |
78186-12410 |
US $8.44 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9165140622
|
9165140622
91651-40622 New Genuine Part |
91651-40622 |
US $0.67 |
||
|
9165140630
|
9165140630
91651-40630 BOLT |
91651-40630 |
US $1.28 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
