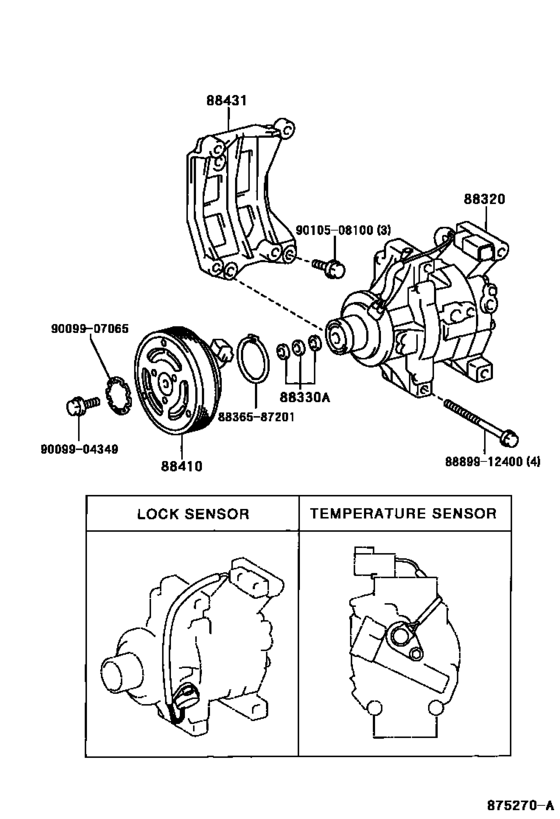

Heating & Air Conditioning - Compressor ([10.2001 - ] (0110- )CE120) Diagram Toyota COROLLA ALTIS
- Year
- 2002 - 2008
- Sales region
- General
- Frame
- CE120
- grade
- 20D
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- PKN
- From
- 02.2002
- To
- 08.2008
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-1A531
Compressor Assy, Cooler
[10.2001 - 09.2002] CE120..PKN;CE120..LHD |
88320-1A531 |
— | ||
|
88320
|
88320
88320-1A590
Compressor Assy, Cooler
[09.2002 - 09.2003] CE120..LHD; CE120..PKN |
88320-1A590 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[08.2000 - 07.2005] NZE120..GCC;CE120,ZZE12#;NZE120..RHD..GEN |
88335-14020 |
from US $1.25 |
||
|
88410
|
88410
88410-1A230 Clutch Assy, Magnet[10.2001 - 09.2002] CE120 |
88410-1A230 |
US $551.82 |
||
|
88410
|
88410
88410-1A270 Clutch Assy, Magnet[09.2002 - 09.2003] CE120..LHD; CE120..PKN |
88410-1A270 |
US $556.19 |
||
|
88410
|
88410
88410-1A310 Clutch Assy, Magnet[09.2003 - 07.2005] CE120..PKN;CE120..LHD |
88410-1A310 |
US $384.38 |
||
|
88431
|
88431
88431-12650
Bracket, Compressor Mounting, No.1
[10.2001 - 03.2002] CE120 |
88431-12650 |
— | ||
| replacement | |||||
|
88431
|
88431
88431-12651
Bracket, Compressor Mounting, No.1
[10.2001 - 03.2002] CE120 |
88431-12651 |
— | ||
|
88431
|
88431
88431-12651
Bracket, Compressor Mounting, No.1
[03.2002 - 07.2005] CE120..PKN |
88431-12651 |
— | ||
|
8836587201
|
8836587201
88365-87201 Ring, Snap |
88365-87201 |
from US $1.75 |
||
|
8889912400
|
8889912400
88899-12400
Bolt, Compressor, No.1
|
88899-12400 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
from US $1.29 |
||
