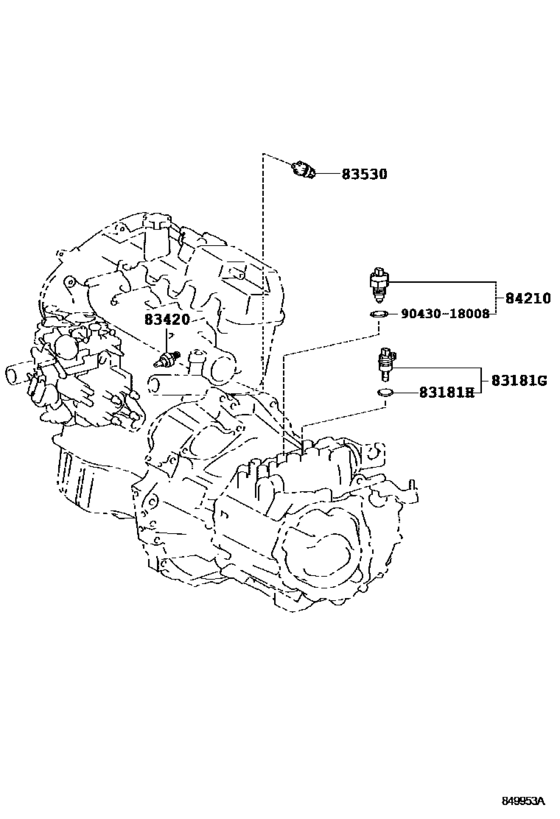

Switch & Relay & Computer ([08.2008 - ] ENGINE & TRANSMISSION (0808- )CE140) Diagram Toyota COROLLA ALTIS
- Year
- 2008 - 2014
- Sales region
- General
- Frame
- CE140
- grade
- 20D
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- PKN
- From
- 08.2008
- To
- 06.2014
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-12030 Sensor, Speedometer[08.2008 - 04.2011] CE140 |
83181-12030 |
from US $160.74 |
||
|
83181H
|
83181H
96711-24018 Ring, O[12.2007 - 04.2011] CE140;ZZE141..4FC |
96711-24018 |
from US $2.26 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[08.2008 - 04.2011] CE140 |
83420-20020 |
from US $30.54 |
||
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[04.2011 -] CE140,NDE140 DENSO |
83530-28010 |
US $25.68 |
||
| replacement | |||||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[04.2011 -] CE140,NDE140 DENSO |
83530-60010 |
from US $27.12 |
||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[08.2008 - 04.2011] CE140 |
83530-60010 |
from US $27.12 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[08.2008 - 05.2011] CE140,NDE140 |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[08.2008 - 05.2011] CE140,NDE140 |
84210-52050 |
from US $20.67 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
