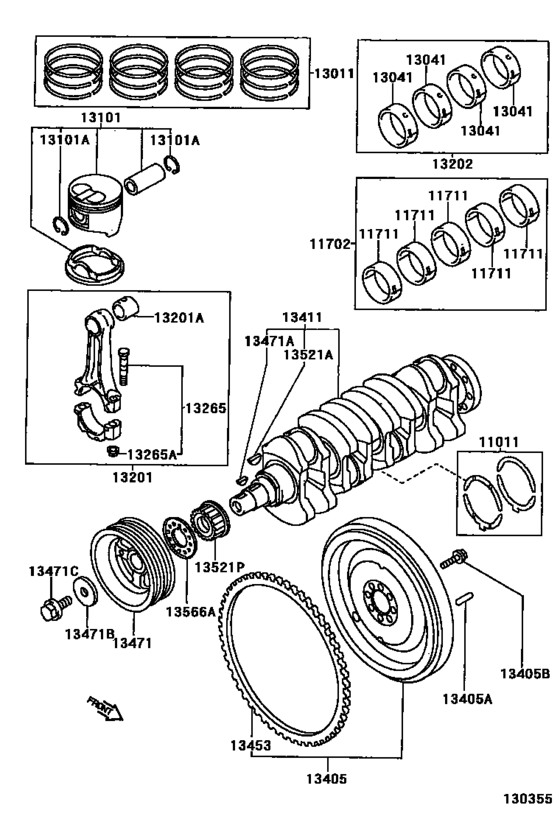

Crankshaft & Piston ([08.2000 - ] (0008- )3CE) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- CE121
- grade
- G
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 08.2000
- To
- 04.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-64010 Washer Set, Crankshaft Thrust[08.2000 - 09.2002] 3CE..CE121 ＳＴＤ |
11011-64010 |
US $32.15 |
||
|
11011
|
11011
11012-64010 Washer Set, Crankshaft Thrust[08.2000 - 09.2002] 3CE..CE121 Ｏ／Ｓ ０．１２５ |
11012-64010 |
US $25.92 |
||
|
11011
|
11011
11013-64010 Washer Set, Crankshaft Thrust[08.2000 - 09.2002] 3CE..CE121 Ｏ／Ｓ ０．２５０ |
11013-64010 |
US $25.92 |
||
|
11702
|
11702
11704-27021
Bearing Set, Crankshaft
[08.2000 - 01.2001] 3CE..CE121 Ｕ／Ｓ ０．２５ |
11704-27021 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-27023 Bearing Set, Crankshaft[08.2000 - 01.2001] 3CE..CE121 Ｕ／Ｓ ０．２５ |
11704-27023 |
US $242.86 |
||
|
11702
|
11702
11704-27022 Bearing Set, Crankshaft[01.2001 - 09.2002] 3CE..CE121 Ｕ／Ｓ ０．２５ |
11704-27022 |
US $270.82 |
||
| replacement | |||||
|
11702
|
11702
11704-27023 Bearing Set, Crankshaft[01.2001 - 09.2002] 3CE..CE121 Ｕ／Ｓ ０．２５ |
11704-27023 |
US $242.86 |
||
|
11702
|
11702
11704-27023 Bearing Set, Crankshaft[09.2002 - 04.2004] 3CE..CE121 Ｕ／Ｓ ０．２５ |
11704-27023 |
US $242.86 |
||
|
11711
|
11711
11701-27011-01
Bearing, Crankshaft
[08.2000 - 01.2001] 3CE..CE121 MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
11701-27011-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27013-01
Bearing, Crankshaft
[08.2000 - 01.2001] 3CE..CE121 MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
11701-27013-01 |
— | ||
|
11711
|
11711
11701-27011-02
Bearing, Crankshaft
[08.2000 - 01.2001] 3CE..CE121 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
11701-27011-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27013-02 Bearing, CrankshaftCRANKSHAFT [08.2000 - 01.2001] 3CE..CE121 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
11701-27013-02 |
from US $10.92 |
||
|
11711
|
11711
11701-27011-03
Bearing, Crankshaft
[08.2000 - 01.2001] 3CE..CE121 MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
11701-27011-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27013-03 Bearing, CrankshaftCRANKSHAFT [08.2000 - 01.2001] 3CE..CE121 MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
11701-27013-03 |
US $31.45 |
||
|
11711
|
11711
11701-27011-04
Bearing, Crankshaft
[08.2000 - 01.2001] 3CE..CE121 MARK 4:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
11701-27011-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27013-04 Bearing, CrankshaftCRANKSHAFT [08.2000 - 01.2001] 3CE..CE121 MARK 4:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
11701-27013-04 |
US $31.45 |
||
|
11711
|
11711
11701-27011-05
Bearing, Crankshaft
[08.2000 - 01.2001] 3CE..CE121 MARK 5:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5 |
11701-27011-05 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27013-05 Bearing, CrankshaftCRANKSHAFT [08.2000 - 01.2001] 3CE..CE121 MARK 5:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5 |
11701-27013-05 |
US $31.45 |
||
|
11711
|
11711
11701-27011-A0 Bearing, Crankshaft[08.2000 - 01.2001] 3CE..CE121 MARK A:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK A |
11701-27011-A0 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-A0 Bearing, CrankshaftCRANKSHAFT [08.2000 - 01.2001] 3CE..CE121 MARK A:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK A |
11701-27013-A0 |
US $31.45 |
||
|
11711
|
11711
11701-27011-B0 Bearing, Crankshaft[08.2000 - 01.2001] 3CE..CE121 MARK B:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK B |
11701-27011-B0 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-B0 Bearing, CrankshaftCRANKSHAFT [08.2000 - 01.2001] 3CE..CE121 MARK B:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK B |
11701-27013-B0 |
US $31.45 |
||
|
11711
|
11711
11701-27012-01
Bearing, Crankshaft
[01.2001 - 09.2002] 3CE..CE121 MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
11701-27012-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27013-01
Bearing, Crankshaft
[01.2001 - 09.2002] 3CE..CE121 MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
11701-27013-01 |
— | ||
|
11711
|
11711
11701-27012-02 Bearing, Crankshaft[01.2001 - 09.2002] 3CE..CE121 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
11701-27012-02 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-02 Bearing, CrankshaftCRANKSHAFT [01.2001 - 09.2002] 3CE..CE121 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
11701-27013-02 |
from US $10.92 |
||
|
11711
|
11711
11701-27012-03 Bearing, Crankshaft[01.2001 - 09.2002] 3CE..CE121 MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
11701-27012-03 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-03 Bearing, CrankshaftCRANKSHAFT [01.2001 - 09.2002] 3CE..CE121 MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
11701-27013-03 |
US $31.45 |
||
|
11711
|
11711
11701-27012-04 Bearing, Crankshaft[01.2001 - 09.2002] 3CE..CE121 MARK 4:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
11701-27012-04 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-04 Bearing, CrankshaftCRANKSHAFT [01.2001 - 09.2002] 3CE..CE121 MARK 4:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
11701-27013-04 |
US $31.45 |
||
|
11711
|
11711
11701-27012-05 Bearing, Crankshaft[01.2001 - 09.2002] 3CE..CE121 MARK 5:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5 |
11701-27012-05 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-05 Bearing, CrankshaftCRANKSHAFT [01.2001 - 09.2002] 3CE..CE121 MARK 5:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5 |
11701-27013-05 |
US $31.45 |
||
|
11711
|
11711
11701-27012-A0 Bearing, Crankshaft[01.2001 - 09.2002] 3CE..CE121 MARK A:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK A |
11701-27012-A0 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-A0 Bearing, CrankshaftCRANKSHAFT [01.2001 - 09.2002] 3CE..CE121 MARK A:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK A |
11701-27013-A0 |
US $31.45 |
||
|
11711
|
11711
11701-27012-B0 Bearing, Crankshaft[01.2001 - 09.2002] 3CE..CE121 MARK B:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK B |
11701-27012-B0 |
US $45.43 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-B0 Bearing, CrankshaftCRANKSHAFT [01.2001 - 09.2002] 3CE..CE121 MARK B:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK B |
11701-27013-B0 |
US $31.45 |
||
|
13011
|
13011
13011-64213 Ring Set, Piston[08.2000 - 09.2002] 3CE..CE121 ＳＴＤ |
13011-64213 |
from US $173.55 |
||
|
13011
|
13011
13013-64213 Ring Set, Piston[08.2000 - 09.2002] 3CE..CE121 Ｏ／Ｓ ０．５０ |
13013-64213 |
US $205.39 |
||
|
13041
|
13041
13041-64072-01
Bearing, Connecting Rod
[08.2000 - 09.2002] 3CE..CE121 MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
13041-64072-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-64073-01 Bearing, Connecting Rod[08.2000 - 09.2002] 3CE..CE121 MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
13041-64073-01 |
US $37.27 |
||
|
13041
|
13041
13041-64072-02
Bearing, Connecting Rod
[08.2000 - 09.2002] 3CE..CE121 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
13041-64072-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-64073-02 Bearing, Connecting Rod[08.2000 - 09.2002] 3CE..CE121 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
13041-64073-02 |
from US $12.69 |
||
|
13041
|
13041
13041-64072-03
Bearing, Connecting Rod
[08.2000 - 09.2002] 3CE..CE121 MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
13041-64072-03 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-64073-03 Bearing, Connecting Rod[08.2000 - 09.2002] 3CE..CE121 MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
13041-64073-03 |
from US $12.07 |
||
|
13041
|
13041
13041-64072-04
Bearing, Connecting Rod
[08.2000 - 09.2002] 3CE..CE121 MARK 4:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
13041-64072-04 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-64073-04 Bearing, Connecting Rod[08.2000 - 09.2002] 3CE..CE121 MARK 4:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
13041-64073-04 |
US $52.42 |
||
|
13041
|
13041
13041-64072-05
Bearing, Connecting Rod
[08.2000 - 09.2002] 3CE..CE121 MARK 5:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5 |
13041-64072-05 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-64073-05 Bearing, Connecting Rod[08.2000 - 09.2002] 3CE..CE121 MARK 5:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5 |
13041-64073-05 |
US $37.27 |
||
|
13101
|
13101
13101-64200-01 Piston Sub-Assy, W/pin[08.2000 - 09.2002] 3CE..CE121 ＳＴＤ,MARK 1:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 1 |
13101-64200-01 |
from US $146.29 |
||
|
13101
|
13101
13101-64200-02 Piston Sub-Assy, W/pin[08.2000 - 09.2002] 3CE..CE121 ＳＴＤ,MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
13101-64200-02 |
US $160.16 |
||
|
13101
|
13101
13101-64200-03 Piston Sub-Assy, W/pin[08.2000 - 09.2002] 3CE..CE121 ＳＴＤ,MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
13101-64200-03 |
US $160.16 |
||
|
13101
|
13101
13103-64200 Piston Sub-Assy, W/pin[08.2000 - 09.2002] 3CE..CE121 Ｏ／Ｓ ０．５０ |
13103-64200 |
US $186.37 |
||
|
13101A
|
13101A
90521-29003 Ring, Hole Snap(For Piston Pin)[08.2000 - 09.2002] 3CE..CE121 |
90521-29003 |
US $2.04 |
||
|
13201
|
13201
13201-64032 Rod Sub-Assy, Connecting[08.2000 - 09.2002] 3CE..CE121 |
13201-64032 |
US $195.10 |
||
|
13201A
|
13201A
90999-73138 Bush(For Connecting Rod Small End)[08.2000 - 09.2002] 3CE..CE121 |
90999-73138 |
US $9.09 |
||
|
13202
|
13202
13204-64072
Bearing Set, Connecting Rod
[08.2000 - 09.2002] 3CE..CE121 Ｕ／Ｓ ０．２５ |
13204-64072 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-64073 Bearing Set, Connecting Rod[08.2000 - 09.2002] 3CE..CE121 Ｕ／Ｓ ０．２５ |
13204-64073 |
from US $72.36 |
||
|
13265
|
13265
13265-49045
Bolt, Connecting Rod
[08.2000 - 09.2002] 3CE..CE121 |
13265-49045 |
— | ||
|
13265A
|
13265A
90179-10042 Nut, Hexagon(For Connecting Rod Bolt)[08.2000 - 09.2002] 3CE..CE121 |
90179-10042 |
US $2.56 |
||
|
13411
|
13411
13411-64912 Crankshaft[08.2000 - 09.2002] 3CE..CE121 |
13411-64912 |
US $1,790.88 |
||
|
13471
|
13471
13408-64130
Pulley, Crankshaft
[08.2000 - 09.2002] 3CE..CE121 |
13408-64130 |
— | ||
|
13471A
|
13471A
90280-05007 Key, Crankshaft(For Crankshaft Pulley Set)[08.2000 - 09.2002] 3CE..CE121 |
90280-05007 |
US $1.14 |
||
|
13471B
|
13471B
90560-16025 Washer, Plate(For Crankshaft Pulley Set)[08.2000 - 09.2002] 3CE..CE121 |
90560-16025 |
US $8.39 |
||
|
13471C
|
13471C
90105-16079 Bolt(For Crankshaft Pulley Set)[08.2000 - 09.2002] 3CE..CE121 |
90105-16079 |
from US $3.78 |
||
|
13521A
|
13521A
90280-06001 Key(For Crankshaft Timing Gear)[08.2000 - 09.2002] 3CE..CE121 |
90280-06001 |
US $4.37 |
||
|
13521P
|
13521P
13521-64011 Pulley, Crankshaft Timing[08.2000 - 09.2002] 3CE..CE121 |
13521-64011 |
from US $20.98 |
||
|
13566A
|
13566A
13566-64011 Guide, Timing Belt[08.2000 - 09.2002] 3CE..CE121 |
13566-64011 |
from US $3.26 |
||
