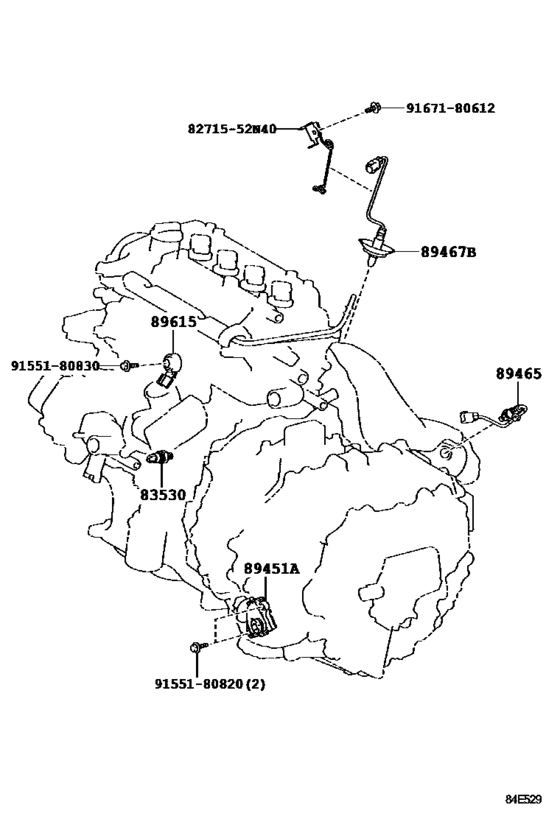

Switch & Relay & Computer ([07.2013 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (1307- )NKE165) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2013 - 2018
- Sales region
- Japan
- Frame
- NKE165
- grade
- HBDG
- body
- SED
- ENGINE
- 1NZFXE
- TRANSMISSION
- CVT
- Model
- COROLLA AXIO
- From
- 07.2013
- No.of Doors
- 4D
- Vehicle Model
- Corolla Axio
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[04.2012 - 03.2015] NKE165,NRE160,NZE16# ＤＥＮＳＯ |
83530-28020 |
from US $26.60 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [04.2012 - 03.2015] NKE165,NRE160,NZE16# ＤＥＮＳＯ |
83530-60020 |
from US $25.43 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[04.2012 - 03.2015] NKE165,NRE160,NZE16# ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [04.2012 - 03.2015] NKE165,NRE160,NZE16# ＹＡＺＡＫＩ |
83530-60020 |
from US $25.43 |
||
|
89451A
|
89451A
89451-52040 Sensor, Shift Lever Position[07.2013 - 03.2015] NKE165 |
89451-52040 |
US $87.32 |
||
|
89465
|
89465
89465-52670 Sensor, Oxygen[07.2013 - 03.2015] NKE165 |
89465-52670 |
US $96.20 |
||
|
89467B
|
89467B
89467-52080 Sensor, Air Fuel Ratio[07.2013 - 03.2015] NKE165 |
89467-52080 |
US $146.52 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[04.2012 - 03.2015] ZRE162 マーク ８９６１５−２００９０; NKE165,NRE160,NZE16# |
89615-20090 |
from US $36.02 |
||
|
8271552N40
|
8271552N40
82715-52N40 Bracket,wiring Harness Clamp |
82715-52N40 |
US $4.37 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.88 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
