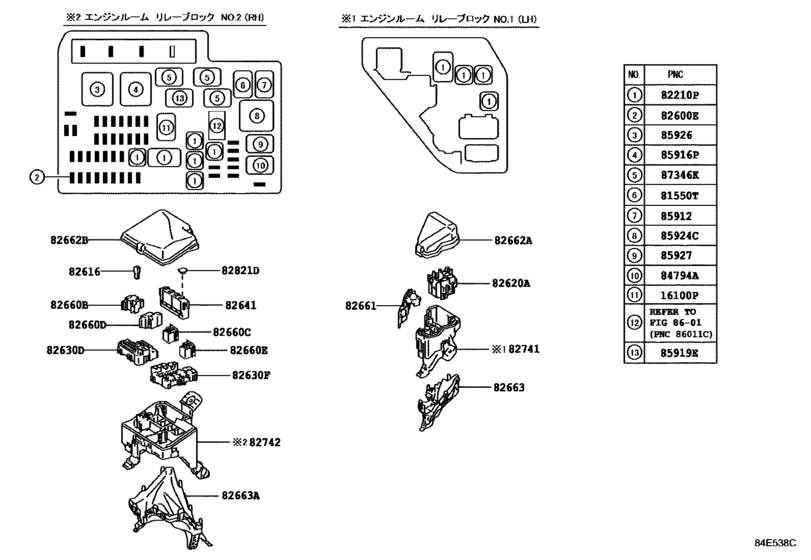

Switch & Relay & Computer ([07.2013 - ] ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ (1307- )NKE165) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2013 - 2018
- Sales region
- Japan
- Frame
- NKE165
- grade
- HBDG
- body
- SED
- ENGINE
- 1NZFXE
- TRANSMISSION
- CVT
- Model
- COROLLA AXIO
- From
- 07.2013
- No.of Doors
- 4D
- Vehicle Model
- Corolla Axio
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100P
|
16100P
90987-02027 Relay[07.2013 - 03.2015] 1NZFXE..NKE165 |
90987-02027 |
from US $44.54 |
||
|
81550T
|
81550T
90987-02027 Relay[07.2013 - 03.2015] NKE165 |
90987-02027 |
from US $44.54 |
||
|
82210P
|
82210P
90982-08246 Fusible Link[07.2013 - 03.2015] NKE165 １００Ａ，オス端子 |
90982-08246 |
from US $7.04 |
||
|
82210P
|
82210P
90982-08294 Fusible Link[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 ４０Ａ，メス端子 |
90982-08294 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[04.2012 - 03.2015] NKE165,ZRE162 ３０Ａ，メス端子 |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 ５０Ａ，メス端子 |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08301 Fusible Link[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 ５０Ａ−３０Ａ−４０Ａ，メス端子 |
90982-08301 |
US $6.24 |
||
|
82210P
|
82210P
90982-08305 Fusible Link[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 ８０Ａ，メス端子 |
90982-08305 |
US $6.24 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 ７．５Ａ，ミニ ヒューズ |
90982-09020 |
from US $0.92 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 １０Ａ，ミニ ヒューズ |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 １５Ａ，ミニ ヒューズ |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 ２０Ａ，ミニ ヒューズ |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 ３０Ａ，ミニ ヒューズ |
90982-09025 |
from US $0.92 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[07.2013 - 03.2015] NKE165 |
82616-58010 |
from US $2.32 |
||
|
82620A
|
82620A
82620-52091 Block Assy, Fusible Link[07.2013 - 03.2015] NKE165 |
82620-52091 |
US $37.09 |
||
|
82630D
|
82630D
82631-52050 Holder, Fuse[07.2013 - 03.2015] NKE165 |
82631-52050 |
US $28.10 |
||
|
82630F
|
82630F
82631-52060 Holder, Fuse[07.2013 - 03.2015] NKE165 |
82631-52060 |
US $29.12 |
||
|
82641
|
82641
82641-47020 Relay, Integration No.1[07.2013 - 03.2015] NKE165 |
82641-47020 |
from US $79.92 |
||
|
82660B
|
82660B
82660-0H070 Block Assy, Relay[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
82660-0H070 |
US $6.99 |
||
|
82660C
|
82660C
82660-0C110 Block Assy, RelayRELAY [03.2015 -] NKE165..5D..HBD; NKE165..5D..HBDG 寒冷地仕様; NKE165..4D 寒冷地仕様＆リヤウィンドウワイパ−有り（間欠リヤワイパ）; NKE165..5D..HBDG ＨＹＢＲＩＤ Ｇ”ＡＥＲＯＴＯＵＲＥＲ”＊（Ｓ）＆寒冷地仕様＆Ｔｏｙｏｔａ Ｓａｆ ｅｔｙ Ｓｅｎｓｅ−有り＆ヘッドランプ−ＬＥＤ（ＡＥＲＯＴＯＵＲＥＲ） ＆ 有り（ ＊ＡＨＢ）; NKE165..5D..HBDG ＨＹＢＲＩＤ Ｇ”ＡＥＲＯＴＯＵＲＥＲ”＊（Ｓ）＆寒冷地仕様＆ヘッドラン |
82660-0C110 |
from US $6.92 |
||
|
82660C
|
82660C
82660-52010 Block Assy, Relay[07.2013 - 03.2015] NKE165 |
82660-52010 |
US $7.13 |
||
|
82660D
|
82660D
82660-0H070 Block Assy, Relay[07.2013 - 03.2015] NKE165..5D;NKE165..4D..HBDG ヘッドランプ−ディスチャージ ＆ 有り（＊ＡＨＢ）; NKE165..5D..HBDG ヘッドランプ−ディスチャージ（ＡＥＲＯＴＯＵＲＥＲ ＊（Ｓ）） ＆ 有り（＊ＡＨＢ ）; NKE165..5D..HBDG ヘッドランプ−ディスチャージ（“ＡＥＲＯＴＯＵＲＥＲ ＷＸＢ”＊（Ｘ））; NKE165..5D;NKE165..4D..HBDG ヘッドランプ−ディスチャージ; NKE165..5D..HBDG ヘッ |
82660-0H070 |
US $6.99 |
||
|
82660D
|
82660D
82660-26270 Block Assy, Relay, Engine Room[07.2013 - 03.2015] NKE165 |
82660-26270 |
US $8.48 |
||
|
82660E
|
82660E
82660-52010 Block Assy, Relay[07.2013 - 03.2015] NKE165 |
82660-52010 |
US $7.13 |
||
|
82661
|
82661
82661-52030 Cover, Relay Block, No.1[07.2013 - 03.2015] NKE165 |
82661-52030 |
US $7.68 |
||
|
82662A
|
82662A
82662-12C20 Cover, Relay Block, Upper, No.1[03.2015 -] NKE165 |
82662-12C20 |
US $15.68 |
||
|
82662A
|
82662A
82662-52731 Cover, Relay Block, Upper, No.1[07.2013 - 03.2015] NKE165 |
82662-52731 |
US $22.34 |
||
|
82662B
|
82662B
82662-12D00 Cover, Relay Block, Upper, No.2[07.2013 - 03.2015] NKE165 |
82662-12D00 |
US $24.02 |
||
|
82662B
|
82662B
82662-12D10 Cover, Relay Block, Upper, No.2[07.2013 - 03.2015] NKE165..5D;NKE165..4D..HBDG ヘッドランプ−ディスチャージ ＆ 有り（＊ＡＨＢ）; NKE165..5D..HBDG ヘッドランプ−ディスチャージ（ＡＥＲＯＴＯＵＲＥＲ ＊（Ｓ）） ＆ 有り（＊ＡＨＢ ）; NKE165..5D..HBDG ヘッドランプ−ディスチャージ（“ＡＥＲＯＴＯＵＲＥＲ ＷＸＢ”＊（Ｘ））; NKE165..5D;NKE165..4D..HBDG ヘッドランプ−ディスチャージ; NKE165..5D..HBDG ヘッ |
82662-12D10 |
US $24.02 |
||
|
82662B
|
82662B
82662-12E00 Cover, Relay Block, Upper, No.2[03.2015 -] NKE165 |
82662-12E00 |
US $20.53 |
||
|
82663
|
82663
82663-52100 Cover, Relay Block, Lower[07.2013 - 03.2015] NKE165 |
82663-52100 |
US $18.09 |
||
|
82663A
|
82663A
82663-52110 Cover, Relay Block, Lower, No.2[07.2013 - 03.2015] NKE165 |
82663-52110 |
US $28.88 |
||
|
82741
|
82741
82741-52090 Block, Engine Room Relay[07.2013 - 03.2015] NKE165 |
82741-52090 |
US $37.70 |
||
|
82742
|
82742
82741-52100 Block, Engine Room Relay[07.2013 - 03.2015] NKE165 |
82741-52100 |
US $56.54 |
||
|
82821D
|
82821D
82821-47090 Cover, Connector[07.2013 - 03.2015] NKE165 |
82821-47090 |
US $0.15 |
||
|
84794A
|
84794A
90987-02027 Relay[07.2013 - 03.2015] NKE165 寒冷地仕様 |
90987-02027 |
from US $44.54 |
||
|
85912
|
85912
90987-04004 Relay, Starter Cut[07.2013 - 03.2015] NKE165 |
90987-04004 |
from US $42.71 |
||
|
85916P
|
85916P
90987-02025 Relay[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
90987-02025 |
from US $44.54 |
||
|
85924C
|
85924C
90987-02025 Relay[07.2013 - 03.2015] NKE165 |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-02025 Relay[04.2012 - 03.2015] NZE16#,ZRE162..LXL,S; NZE16#..4D..G;NKE165,NZE16#..5D;NKE165,NRE160..4D..(HBDG,X) ヘッドランプ−ディスチャージ ＆ 有り（＊ＡＨＢ）; NKE165,NZE16#..5D..(G,HBDG) ヘッドランプ−ディスチャージ（ＡＥＲＯＴＯＵＲＥＲ ＊（Ｓ）） ＆ 有り（＊ＡＨＢ ） |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[04.2012 - 03.2015] NKE165,NRE160,NZE16#..G,HBD,HBDG,X |
90987-04010 |
from US $42.71 |
||
|
85927
|
85927
90987-02027 Relay[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
90987-02027 |
from US $44.54 |
||
|
87346K
|
87346K
90987-02027 Relay[07.2013 - 03.2015] NKE165 寒冷地仕様 |
90987-02027 |
from US $44.54 |
