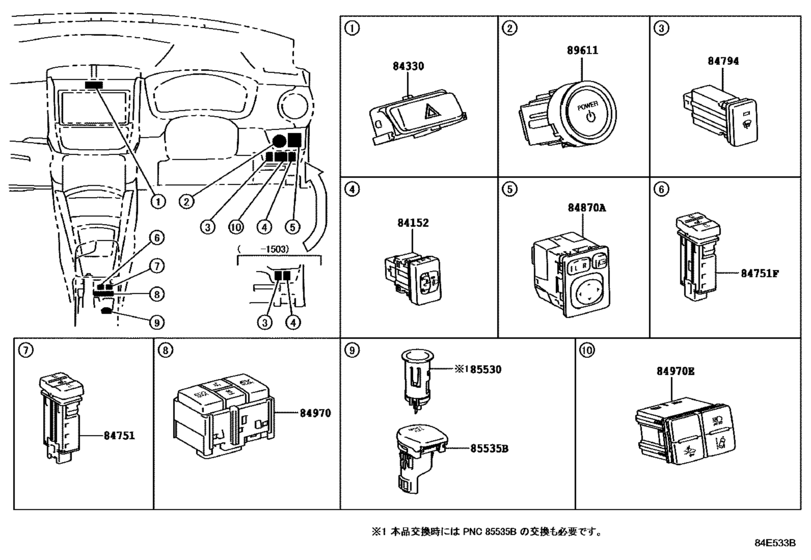

Switch & Relay & Computer ([07.2013 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1307- )NKE165) Diagram Toyota COROLLA AXIO/ FIELDER
- Year
- 2013 - 2018
- Sales region
- Japan
- Frame
- NKE165
- grade
- HBDG
- body
- SED
- ENGINE
- 1NZFXE
- TRANSMISSION
- CVT
- Model
- COROLLA AXIO
- From
- 07.2013
- No.of Doors
- 4D
- Vehicle Model
- Corolla Axio
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-52070 Switch, Headlamp Leveling[04.2012 - 01.2015] NKE165,NRE160,NZE16#..G,HBD,HBDG,X; NZE16#..4D..G;NKE165,NZE16#..5D;NKE165,NRE160..4D..(HBDG,X) ヘッドランプ−ディスチャージ ＆ 有り（＊ＡＨＢ）; NKE165,NZE16#..5D..(G,HBDG) ヘッドランプ−ディスチャージ（ＡＥＲＯＴＯＵＲＥＲ ＊（Ｓ）） ＆ 有り（＊ＡＨＢ ）; NKE165,NZE16#..5D..CVT..(G,HBDG) ヘッドランプ |
84152-52070 |
US $47.61 |
||
| replacement | |||||
|
84152
|
84152
84152-52071 Switch, Headlamp Leveling[04.2012 - 01.2015] NKE165,NRE160,NZE16#..G,HBD,HBDG,X; NZE16#..4D..G;NKE165,NZE16#..5D;NKE165,NRE160..4D..(HBDG,X) ヘッドランプ−ディスチャージ ＆ 有り（＊ＡＨＢ）; NKE165,NZE16#..5D..(G,HBDG) ヘッドランプ−ディスチャージ（ＡＥＲＯＴＯＵＲＥＲ ＊（Ｓ）） ＆ 有り（＊ＡＨＢ ）; NKE165,NZE16#..5D..CVT..(G,HBDG) ヘッドランプ |
84152-52071 |
US $43.24 |
||
|
84152
|
84152
84152-52071 Switch, Headlamp Leveling[02.2015 - 03.2015] NKE165,NRE160,NZE16#..G,HBD,HBDG,X; NZE16#..4D..G;NKE165,NZE16#..5D;NKE165,NRE160..4D..(HBDG,X) ヘッドランプ−ディスチャージ ＆ 有り（＊ＡＨＢ）; NKE165,NZE16#..5D..(G,HBDG) ヘッドランプ−ディスチャージ（ＡＥＲＯＴＯＵＲＥＲ ＊（Ｓ）） ＆ 有り（＊ＡＨＢ ）; NKE165,NZE16#..5D..CVT..(G,HBDG) ヘッドランプ |
84152-52071 |
US $43.24 |
||
|
84152
|
84152
84152-52131 Switch, Headlamp Leveling[03.2015 -] NKE165,NRE16#,NZE16#; NKE165,NRE161,NZE16#..5D;NKE165,NRE161,NZE16#..4D..(G,HBDG) ヘッドランプ−ＬＥＤ ＆ 有り（＊ＡＨＢ）; NKE165,NRE161,NZE16#..5D..(G,HBDG) ヘッドランプ−ＬＥＤ（ＡＥＲＯＴＯＵＲＥＲ） ＆ 有り（＊ＡＨＢ）; NKE165,NRE161,NZE164..5D..(G,HBDG) ヘッドランプ−ＬＥＤ（ＷｘＢ） ＆ 有り（＊ＡＨＢ）; NKE16 |
84152-52131 |
US $45.72 |
||
|
84330
|
84330
84332-12560 Switch Assy, Hazard Warning Signal[04.2012 - 12.2014] NKE165,NRE160,NZE16#,ZRE162 |
84332-12560 |
US $39.60 |
||
| replacement | |||||
|
84330
|
84330
84332-12561
Switch Assy, Hazard Warning Signal
[04.2012 - 12.2014] NKE165,NRE160,NZE16#,ZRE162 |
84332-12561 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-12562 Switch Assy, Hazard Warning Signal[04.2012 - 12.2014] NKE165,NRE160,NZE16#,ZRE162 |
84332-12562 |
US $34.94 |
||
|
84330
|
84330
84332-12561
Switch Assy, Hazard Warning Signal
[01.2015 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
84332-12561 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-12562 Switch Assy, Hazard Warning Signal[01.2015 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
84332-12562 |
US $34.94 |
||
|
84330
|
84330
84332-12562 Switch Assy, Hazard Warning Signal[01.2017 -] NKE165,NRE16#,NZE16#,ZRE162 |
84332-12562 |
US $34.94 |
||
|
84751
|
84751
84751-47040 Switch, Seat Heater[07.2013 - 01.2015] NKE165 シートヒータ装着車 |
84751-47040 |
US $60.72 |
||
| replacement | |||||
|
84751
|
84751
84751-47042 Switch, Seat Heater[07.2013 - 01.2015] NKE165 シートヒータ装着車 |
84751-47042 |
US $55.18 |
||
|
84751
|
84751
84751-47041 Switch, Seat Heater[02.2015 - 03.2015] NKE165 シートヒータ装着車 |
84751-47041 |
US $60.72 |
||
| replacement | |||||
|
84751
|
84751
84751-47042 Switch, Seat Heater[02.2015 - 03.2015] NKE165 シートヒータ装着車 |
84751-47042 |
US $55.18 |
||
|
84751
|
84751
84751-47042 Switch, Seat Heater[03.2015 -] NKE165 シートヒータ−有り |
84751-47042 |
US $55.18 |
||
|
84751F
|
84751F
84751-47050 Switch, Seat Heater[07.2013 - 01.2015] NKE165 シートヒータ装着車 |
84751-47050 |
US $60.72 |
||
| replacement | |||||
|
84751F
|
84751F
84751-47052 Switch, Seat Heater[07.2013 - 01.2015] NKE165 シートヒータ装着車 |
84751-47052 |
US $55.18 |
||
|
84751F
|
84751F
84751-47051 Switch, Seat Heater[02.2015 - 03.2015] NKE165 シートヒータ装着車 |
84751-47051 |
US $60.72 |
||
| replacement | |||||
|
84751F
|
84751F
84751-47052 Switch, Seat Heater[02.2015 - 03.2015] NKE165 シートヒータ装着車 |
84751-47052 |
US $55.18 |
||
|
84751F
|
84751F
84751-47052 Switch, Seat Heater[03.2015 -] NKE165 シートヒータ−有り |
84751-47052 |
US $55.18 |
||
|
84794
|
84794
84794-52010 Switch, Fr Wiper Deicer[04.2012 - 01.2015] NKE165,NRE160,NZE16#,ZRE162 寒冷地仕様 |
84794-52010 |
US $39.75 |
||
| replacement | |||||
|
84794
|
84794
84794-52011 Switch, Fr Wiper Deicer[04.2012 - 01.2015] NKE165,NRE160,NZE16#,ZRE162 寒冷地仕様 |
84794-52011 |
US $35.96 |
||
|
84794
|
84794
84794-52011 Switch, Fr Wiper Deicer[02.2015 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 寒冷地仕様 |
84794-52011 |
US $35.96 |
||
|
84870A
|
84870A
84870-12211 Switch Assy, Outer Mirror[03.2015 -] NKE165,NRE161,NZE16#,ZRE162..G,HBDG,S |
84870-12211 |
US $148.51 |
||
|
84870A
|
84870A
84870-28040 Switch Assy, Outer Mirror[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162..G,HBD,HBDG,S,X |
84870-28040 |
US $66.27 |
||
|
84970
|
84970
84970-12010 Switch Assy, Combination[07.2013 - 03.2015] NKE165 |
84970-12010 |
US $80.08 |
||
|
84970E
|
84970E
84970-12020 Switch Assy, Combination No.2[03.2015 -] NRE160,ZRE162;NKE165,NRE161,NZE16#..4D..(HBD,X) Ｔｏｙｏｔａ Ｓａｆｅｔｙ Ｓｅｎｓｅ−有り; NKE165,NRE161,NZE16#..5D;NKE165,NRE161,NZE16#..4D..(G,HBDG) Ｔｏｙｏｔａ Ｓａｆｅｔｙ Ｓｅｎｓｅ−有り＆ヘッドランプ−ハロゲン ＆ 有り（＊ ＡＨＢ）; NKE165,NRE161,NZE16#..5D;NKE165,NRE161,NZE16#..4D..(G,HBDG) Ｔｏｙ |
84970-12020 |
US $74.26 |
||
|
85530
|
85530
85530-0D020 Socket Assy, Power Outlet, No.1[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
85530-0D020 |
US $30.40 |
||
|
85530
|
85530
85530-0D021 Socket Assy, Power Outlet, No.1[02.2016 -] NKE165,NRE16#,NZE16#,ZRE162 |
85530-0D021 |
US $26.60 |
||
|
85535B
|
85535B
85535-02040 Cover, Power Outlet Socket, No.1[04.2012 - 03.2015] NKE165,NRE160,NZE16#,ZRE162 |
85535-02040 |
US $10.56 |
||
|
89611
|
89611
89611-33021
Switch, Push Start
[07.2013 - 03.2015] NKE165..HBDG スマートエントリ−有り |
89611-33021 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-33023 Switch, Push Start[07.2013 - 03.2015] NKE165..HBDG スマートエントリ−有り |
89611-33023 |
US $175.68 |
||
|
89611
|
89611
89611-33022
Switch, Push Start
[06.2015 - 03.2016] NKE165..HBDG スマートエントリ−有り |
89611-33022 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-33023 Switch, Push Start[06.2015 - 03.2016] NKE165..HBDG スマートエントリ−有り |
89611-33023 |
US $175.68 |
||
|
89611
|
89611
89611-33023 Switch, Push Start[04.2016 -] NKE165..HBDG スマートエントリ−有り |
89611-33023 |
US $175.68 |
||
