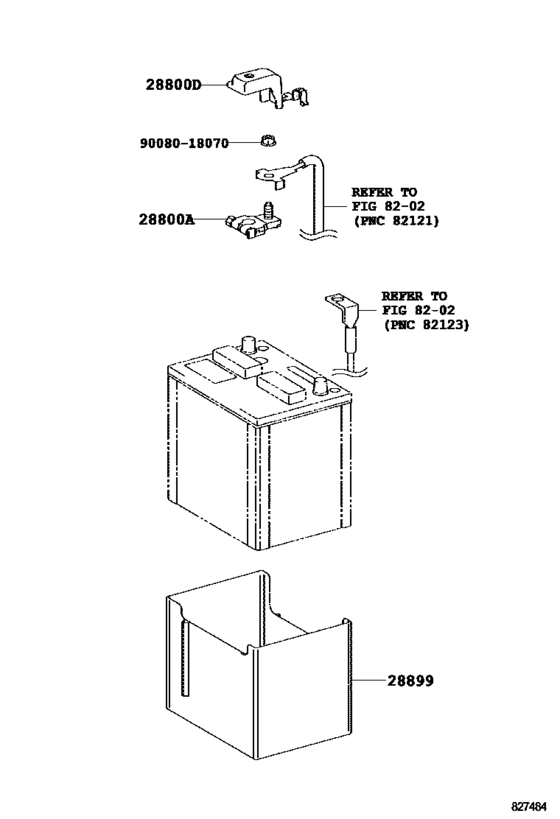

Battery & Battery Cable ([05.2011 - ] (1105- )) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2013
- Sales region
- U.S.A.
- Frame
- AZE146
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 01.2008
- To
- 08.2013
- Gear Shift Type
- 5FC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800A
|
28800A
90982-05054 Terminal, Battery Positive[01.2008 - 12.2010] 2AZFE,2ZRFE..AZE14#,ZRE142 |
90982-05054 |
from US $13.60 |
||
|
28800A
|
28800A
90982-05061 Terminal, Battery Positive[08.2011 -] 2AZFE,2ZRFE..AZE14#,ZRE142 |
90982-05061 |
from US $13.60 |
||
|
28800D
|
28800D
82821-06040
Cover, Connector(For Battery Terminal)
[01.2012 -] 2AZFE,2ZRFE..AZE14#,ZRE142 |
82821-06040 |
— | ||
|
28800D
|
28800D
82821-12490 Cover, Connector(For Battery Terminal)[01.2008 - 12.2010] 2AZFE,2ZRFE..AZE14#,ZRE142 |
82821-12490 |
from US $9.12 |
||
|
28899
|
28899
28899-28100
Insulator, Battery
[01.2008 - 12.2010] 2AZFE..AZE14# |
28899-28100 |
— | ||
|
9008018070
|
9008018070
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
