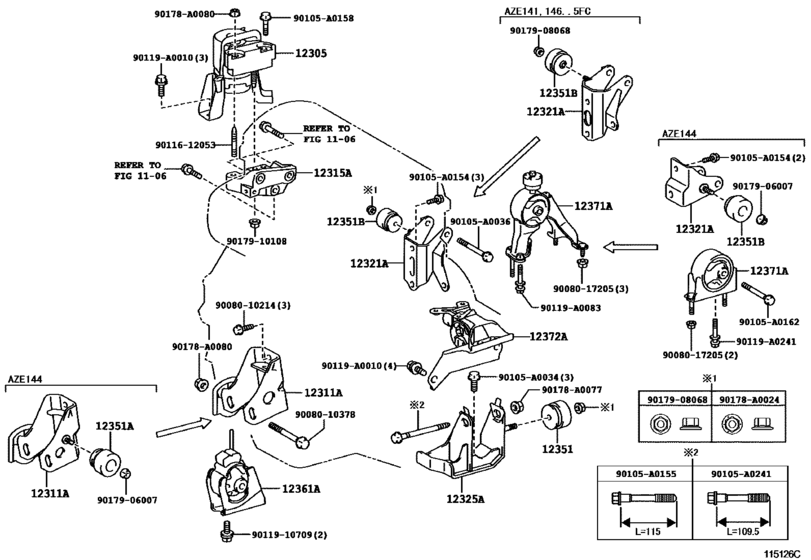

Mounting ([01.2008 - ] (0801- )2AZFE) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2013
- Sales region
- U.S.A.
- Frame
- AZE146
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 01.2008
- To
- 08.2013
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-0H020
Insulator Sub-Assy, Engine Mounting, Rh
[01.2008 - 12.2010] 2AZFE..AZE141,146 |
12305-0H020 |
— | ||
|
12311A
|
12311A
12311-0H140
Bracket, Engine Mounting, Front(For Transverse Engine)
[01.2008 - 12.2010] 2AZFE..AZE141,146 |
12311-0H140 |
— | ||
|
12315A
|
12315A
12315-28090 Bracket, Engine Mounting, Rh(For Transverse Engine)[01.2008 - 12.2010] 2AZFE..AZE14# *195; 2AZFE..AZE141,146 *108 |
12315-28090 |
US $69.01 |
||
|
12321A
|
12321A
12321-0H080
Bracket, Engine Mounting, Rear(For Transverse Engine)
[01.2008 - 12.2010] 2AZFE..AZE141,146..5FC |
12321-0H080 |
— | ||
|
12325A
|
12325A
12325-0H050
Bracket, Engine Mounting, Lh(For Transverse Engine)
[01.2008 - 12.2010] 2AZFE..AZE141,146..5FC |
12325-0H050 |
— | ||
|
12351
|
12351
12351-11072 Damper, Engine Mounting[01.2008 - 11.2010] 2AZFE..AZE141,146..5FC |
12351-11072 |
US $23.59 |
||
|
12351
|
12351
12351-28070
Damper, Engine Mounting
[12.2010 - 08.2013] 2AZFE..AZE141,146..5FC |
12351-28070 |
— | ||
|
12351B
|
12351B
12351-11072 Damper, Engine Mounting[01.2008 - 11.2010] 2AZFE..AZE141,146..5FC |
12351-11072 |
US $23.59 |
||
|
12351B
|
12351B
12351-28070
Damper, Engine Mounting
[12.2010 - 08.2013] 2AZFE..AZE141,146..5FC |
12351-28070 |
— | ||
|
12361A
|
12361A
12361-0H120
Insulator, Engine Mounting, Front(For Transverse Engine)
[01.2008 - 12.2010] 2AZFE..AZE14# |
12361-0H120 |
— | ||
|
12371A
|
12371A
12371-0H080
Insulator, Engine Mounting, Rear
[01.2008 - 12.2010] 2AZFE..AZE141,146 |
12371-0H080 |
— | ||
|
12372A
|
12372A
12372-0H150
Insulator, Engine Mounting, Lh(For Transverse Engine)
[01.2008 - 12.2010] 2AZFE..AZE141,146..5FC |
12372-0H150 |
— | ||
|
90105A0034
|
90105A0034
90105-A0034
New Genuine Part
|
90105-A0034 |
— | ||
|
90105A0036
|
90105A0036
90105-A0036
New Genuine Part
|
90105-A0036 |
— | ||
|
90105A0154
|
90105A0154
90105-A0154
New Genuine Part
|
90105-A0154 |
— | ||
|
90105A0155
|
90105A0155
90105-A0155
New Genuine Part
|
90105-A0155 |
— | ||
|
90105A0158
|
90105A0158
90105-A0158
New Genuine Part
|
90105-A0158 |
— | ||
|
90105A0162
|
90105A0162
90105-A0162
New Genuine Part
|
90105-A0162 |
— | ||
|
90105A0241
|
90105A0241
90105-A0241
New Genuine Part
|
90105-A0241 |
— | ||
|
90119A0010
|
90119A0010
90119-A0010 New Genuine Part |
90119-A0010 |
US $2.33 |
||
|
90119A0083
|
90119A0083
90119-A0083
New Genuine Part
|
90119-A0083 |
— | ||
|
90119A0241
|
90119A0241
90119-A0241
New Genuine Part
|
90119-A0241 |
— | ||
|
90178A0024
|
90178A0024
90178-A0024
New Genuine Part
|
90178-A0024 |
— | ||
|
90178A0077
|
90178A0077
90178-A0077
New Genuine Part
|
90178-A0077 |
— | ||
|
90178A0080
|
90178A0080
90178-A0080
Nut(For Front Stabilizer Link)
|
90178-A0080 |
— | ||
|
9008010214
|
9008010214
90080-10214
New Genuine Part
|
90080-10214 |
— | ||
|
9008010378
|
9008010378
90080-10378
New Genuine Part
|
90080-10378 |
— | ||
|
9008017205
|
9008017205
90080-17205
New Genuine Part
|
90080-17205 |
— | ||
|
9011612053
|
9011612053
90116-12053 BOLT STUD |
90116-12053 |
US $4.96 |
||
|
9011910709
|
9011910709
90119-10709 New Genuine Part |
90119-10709 |
US $2.56 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
US $1.60 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
