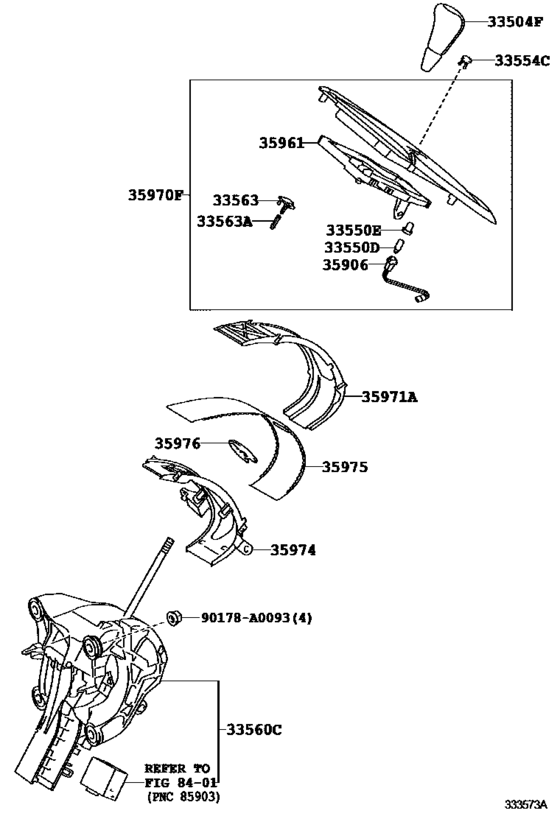

Shift Lever & Retainer ([01.2008 - ] (0801- )ATM) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2013
- Sales region
- U.S.A.
- Frame
- AZE146
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 01.2008
- To
- 08.2013
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-02260-B0
Knob Sub-Assy, Shift Lever
[12.2010 - 06.2014] ZRE142..4FC;AZE14#..ATM..USA DK.GRAY,TRIM1# |
33504-02260-B0 |
— | ||
|
33504F
|
33504F
33504-02270-B0
Knob Sub-Assy, Shift Lever
[01.2008 - 12.2010] AZE146..5FC DK.GRAY,TRIM1#; AZE141,144..ATM STEERING WHEEL-3-SP,LEATHER,W/AUDIO&HFSW,DK.GRAY,TRIM1#; AZE141,144..ATM STEERING WHEEL-3-SP,LEATHER,W/AUDIO SW,DK.GRAY,TRIM1# |
33504-02270-B0 |
— | ||
|
33550D
|
33550D
90981-11014 Bulb, Position Indicator Lamp[01.2008 - 12.2010] AZE14#,ZRE142..ATM 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
33550E
|
33550E
90339-04071 Cap, Position Indicator Lamp[01.2008 - 12.2010] AZE14#,ZRE142..ATM |
90339-04071 |
US $1.92 |
||
|
33554C
|
33554C
33554-02060
Cover, Shift Lock Release Button
[01.2008 - 12.2010] AZE14#,ZRE142..ATM |
33554-02060 |
— | ||
|
33560C
|
33560C
33560-02130
Lever Assy, Shift, Lower
[01.2008 - 12.2010] AZE141,146..5FC |
33560-02130 |
— | ||
|
33563
|
33563
33563-02090
Button, Shift Lock Release
[01.2008 - 12.2010] AZE14#,ZRE142..ATM |
33563-02090 |
— | ||
|
33563A
|
33563A
90080-50179 Spring, Compression (For Shift Lock Release Button)COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) [01.2008 - 12.2010] AZE14#,ZRE142..ATM |
90080-50179 |
US $1.16 |
||
|
35906
|
35906
35906-02090
Wire Sub-Assy, Indicator Lamp
[01.2008 - 12.2010] AZE14#,ZRE142..ATM |
35906-02090 |
— | ||
|
35961
|
35961
35961-02010
Housing, Position Indicator Lamp
[01.2008 - 12.2010] AZE14#,ZRE142..ATM |
35961-02010 |
— | ||
|
35970F
|
35970F
35970-02020
Housing Assy, Position Indicator
[01.2008 - 12.2010] AZE141,146..5FC |
35970-02020 |
— | ||
|
35971A
|
35971A
35971-02070
Housing, Position Indicator, Upper
[01.2008 - 12.2010] AZE14#,ZRE142..ATM |
35971-02070 |
— | ||
|
35974
|
35974
35974-02080
Housing, Position Indicator, Lower
[01.2008 - 12.2010] AZE14#,ZRE142..ATM |
35974-02080 |
— | ||
|
35975
|
35975
35975-02090
Cover, Slide (For Position Indicator)
[01.2008 - 12.2010] AZE14#,ZRE142..ATM |
35975-02090 |
— | ||
|
35976
|
35976
35976-02080
Cover, Slide, No.2 (For Position Indicator)
[01.2008 - 12.2010] AZE14#,ZRE142..ATM |
35976-02080 |
— | ||
|
90178A0093
|
90178A0093
90178-A0093
New Genuine Part
|
90178-A0093 |
— |
