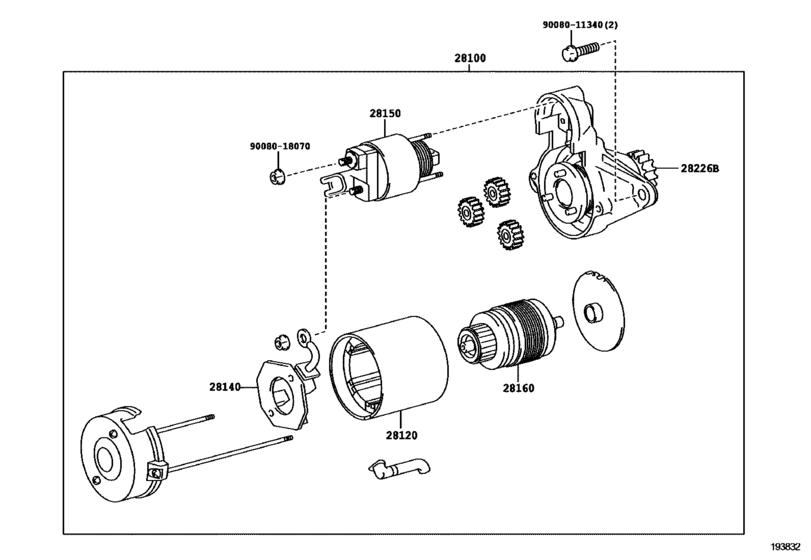

Starter ([08.2011 - ] 12V 1.6KW (1108- )2AZFE) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2013
- Sales region
- U.S.A.
- Frame
- AZE146
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 01.2008
- To
- 08.2013
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28100
|
28100
28100-0H090
Starter Assy
[01.2008 - 12.2010] 2AZFE..AZE14# 12V 1.6KW |
28100-0H090 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-0H091
Starter Assy
[01.2008 - 12.2010] 2AZFE..AZE14# 12V 1.6KW |
28100-0H091 |
— | ||
|
28100
|
28100
28100-0H091
Starter Assy
[08.2011 - 08.2013] 2AZFE..AZE14# 12V 1.6KW |
28100-0H091 |
— | ||
|
28120
|
28120
28120-0H090
Yoke Assy, Starter
[01.2008 - 12.2010] 2AZFE..AZE14# |
28120-0H090 |
— | ||
|
28140
|
28140
28140-0H100 Holder Assy, Starter Brush[01.2008 - 11.2009] 2AZFE..AZE14# |
28140-0H100 |
US $50.96 |
||
|
28140
|
28140
28140-31090 Holder Assy, Starter Brush[11.2009 - 12.2010] 2AZFE..AZE14# |
28140-31090 |
US $18.70 |
||
|
28150
|
28150
28150-28060 Switch Assy, Magnet StarterMAGNET STARTER [08.2011 - 01.2012] 2AZFE..AZE14# |
28150-28060 |
US $196.56 |
||
| replacement | |||||
|
28150
|
28150
28150-40090 Switch Assy, Magnet Starter[08.2011 - 01.2012] 2AZFE..AZE14# |
28150-40090 |
from US $130.46 |
||
|
28150
|
28150
28150-40090 Switch Assy, Magnet Starter[01.2008 - 12.2010] 2AZFE..AZE14# |
28150-40090 |
from US $130.46 |
||
|
28160
|
28160
28160-37050 Armature Assy, Starter[01.2008 - 12.2010] 2AZFE,2ZRFE..AZE14#,ZRE142 |
28160-37050 |
US $176.18 |
||
|
28226B
|
28226B
28226-0A010
Starter Kit, Repair Service
[04.2009 - 12.2010] 2AZFE..AZE14# |
28226-0A010 |
— | ||
|
28226B
|
28226B
28226-0H090
Starter Kit, Repair Service
[01.2008 - 04.2009] 2AZFE..AZE14# |
28226-0H090 |
— | ||
| replacement | |||||
|
28226B
|
28226B
28226-0A010
Starter Kit, Repair Service
[01.2008 - 04.2009] 2AZFE..AZE14# |
28226-0A010 |
— | ||
|
9008011340
|
9008011340
90080-11340
New Genuine Part
|
90080-11340 |
— | ||
|
9008018070
|
9008018070
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
