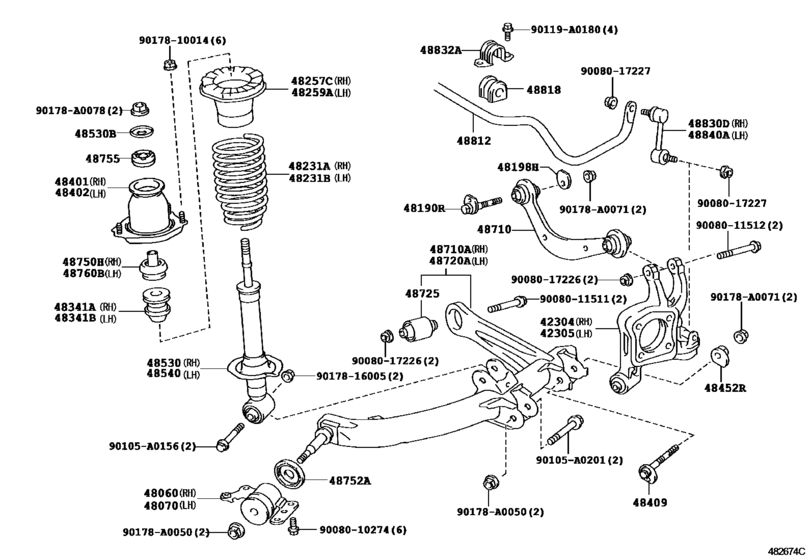

Rear Spring & Shock Absorber ([01.2008 - ] (0801- )AZE144,146) Diagram Toyota COROLLA MATRIX
- Year
- 2008 - 2013
- Sales region
- U.S.A.
- Frame
- AZE146
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 01.2008
- To
- 08.2013
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42304
|
42304
42304-02120
Carrier Sub-Assy, Rear Axle, Rh
[01.2008 - 12.2010] AZE144,146 |
42304-02120 |
— | ||
|
42305
|
42305
42305-02120
Carrier Sub-Assy, Rear Axle, Lh
[01.2008 - 12.2010] AZE144,146 |
42305-02120 |
— | ||
|
48060
|
48060
48060-02010
Bracket Assy, Rear Suspension Arm, Rh
[01.2008 - 12.2010] AZE144,146 |
48060-02010 |
— | ||
|
48070
|
48070
48070-02010
Bracket Assy, Rear Suspension Arm, Lh
[01.2008 - 12.2010] AZE144,146 |
48070-02010 |
— | ||
|
48190R
|
48190R
48190-32010 Cam Assy, Camber Adjust[01.2008 - 12.2010] AZE144,146 |
48190-32010 |
from US $7.35 |
||
|
48198H
|
48198H
48198-32040 Cam, Rear Suspension Camber Adjust, No.2 Rh[01.2008 - 12.2010] AZE144,146 |
48198-32040 |
from US $11 |
||
|
48231A
|
48231A
48231-02730
Spring, Coil, Rear Rh
[01.2008 - 12.2010] AZE146 |
48231-02730 |
— | ||
|
48231B
|
48231B
48231-02730
Spring, Coil, Rear Rh
[01.2008 - 12.2010] AZE146 |
48231-02730 |
— | ||
|
48257C
|
48257C
48257-01020 Insulator, Rear Coil Spring, Upper Rh[01.2008 - 12.2010] AZE144,146 |
48257-01020 |
US $10.34 |
||
|
48259A
|
48259A
48257-01020 Insulator, Rear Coil Spring, Upper Rh[01.2008 - 12.2010] AZE144,146 |
48257-01020 |
US $10.34 |
||
|
48341A
|
48341A
48341-01040
Bumper, Rear Spring, No.1 Rh
[01.2008 - 12.2010] AZE144,146 |
48341-01040 |
— | ||
|
48341B
|
48341B
48341-01040
Bumper, Rear Spring, No.1 Rh
[01.2008 - 12.2010] AZE144,146 |
48341-01040 |
— | ||
|
48401
|
48401
48401-02050
Bracket Sub-Assy, Rear Spring, Front Rh
[01.2008 - 12.2010] AZE144,146 |
48401-02050 |
— | ||
|
48402
|
48402
48401-02050
Bracket Sub-Assy, Rear Spring, Front Rh
[01.2008 - 12.2010] AZE144,146 |
48401-02050 |
— | ||
|
48409
|
48409
48409-32040 Cam Sub-Assy, Rear Suspension Toe Adjust[01.2008 - 12.2010] AZE144,146 |
48409-32040 |
from US $11.06 |
||
|
48452R
|
48452R
48452-32040 Plate, Rear Suspension Toe Adjust, No.2[01.2008 - 12.2010] AZE144,146 |
48452-32040 |
from US $7.61 |
||
|
48530
|
48530
48530-02580
Absorber Assy, Shock, Rear Rh
[01.2008 - 12.2010] AZE146 MARK 48530-02580 |
48530-02580 |
— | ||
|
48530B
|
48530B
90948-03021 Washer, Rear Shock Absorber Cushion, No.1[01.2008 - 12.2010] AZE14#,ZRE142 |
90948-03021 |
from US $4.48 |
||
|
48540
|
48540
48530-02580
Absorber Assy, Shock, Rear Rh
[01.2008 - 12.2010] AZE146 MARK 48530-02580 |
48530-02580 |
— | ||
|
48710
|
48710
48770-20020 Arm Assy, Upper Control[01.2008 - 12.2010] AZE144,146 |
48770-20020 |
US $112.48 |
||
|
48710A
|
48710A
48710-12280
Arm Assy, Rear Suspension, No.1 Rh
[01.2008 - 12.2010] AZE144,146 |
48710-12280 |
— | ||
|
48720A
|
48720A
48720-12110
Arm Assy, Rear Suspension, No.1 Lh
[01.2008 - 12.2010] AZE144,146 |
48720-12110 |
— | ||
|
48725
|
48725
48725-32250 Bush, Lower Control Arm[01.2008 - 12.2010] AZE144,146 |
48725-32250 |
from US $18.54 |
||
|
48750H
|
48750H
48750-01020
Support Assy, Rear Suspension, Rh
[01.2008 - 12.2010] AZE144,146 |
48750-01020 |
— | ||
|
48752A
|
48752A
48752-02010
Stopper, Rear Suspension Support
[01.2008 - 12.2010] AZE144,146 |
48752-02010 |
— | ||
|
48755
|
48755
48755-01020 Support, Rear Suspension[01.2008 - 12.2010] AZE144,146 |
48755-01020 |
US $5.39 |
||
|
48760B
|
48760B
48750-01020
Support Assy, Rear Suspension, Rh
[01.2008 - 12.2010] AZE144,146 |
48750-01020 |
— | ||
|
48812
|
48812
48812-02250
Bar, Stabilizer, Rear
[01.2008 - 12.2010] AZE144,146 |
48812-02250 |
— | ||
|
48818
|
48818
48818-02070
Bush, Stabilizer, Rear
[01.2008 - 12.2010] AZE144,146 |
48818-02070 |
— | ||
|
48830D
|
48830D
48830-01010
Link Assy, Rear Stabilizer, Rh
[01.2008 - 12.2010] AZE144,146 |
48830-01010 |
— | ||
|
48832A
|
48832A
48832-02030
Bracket, Rear Stabilizer Bar, No.1
[01.2008 - 12.2010] AZE144,146 |
48832-02030 |
— | ||
|
48840A
|
48840A
48830-01010
Link Assy, Rear Stabilizer, Rh
[01.2008 - 12.2010] AZE144,146 |
48830-01010 |
— | ||
|
90105A0156
|
90105A0156
90105-A0156
New Genuine Part
|
90105-A0156 |
— | ||
|
90105A0201
|
90105A0201
90105-A0201
New Genuine Part
|
90105-A0201 |
— | ||
|
90119A0180
|
90119A0180
90119-A0180
New Genuine Part
|
90119-A0180 |
— | ||
|
90178A0050
|
90178A0050
90178-A0050
New Genuine Part
|
90178-A0050 |
— | ||
|
90178A0071
|
90178A0071
90178-A0071 New Genuine Part |
90178-A0071 |
US $2.48 |
||
|
90178A0078
|
90178A0078
90178-A0078
New Genuine Part
|
90178-A0078 |
— | ||
|
9008010274
|
9008010274
90080-10274 New Genuine Part |
90080-10274 |
US $2.04 |
||
|
9008011511
|
9008011511
90080-11511
New Genuine Part
|
90080-11511 |
— | ||
|
9008011512
|
9008011512
90080-11512
New Genuine Part
|
90080-11512 |
— | ||
|
9008017226
|
9008017226
90080-17226
New Genuine Part
|
90080-17226 |
— | ||
|
9008017227
|
9008017227
90080-17227
Nut(For Rear Stabilizer Link)
|
90080-17227 |
— | ||
|
9017810014
|
9017810014
90178-10014 Nut(For Front Suspension Support) |
90178-10014 |
from US $1.21 |
||
|
9017816005
|
9017816005
90178-16005 New Genuine Part |
90178-16005 |
US $2.88 |
