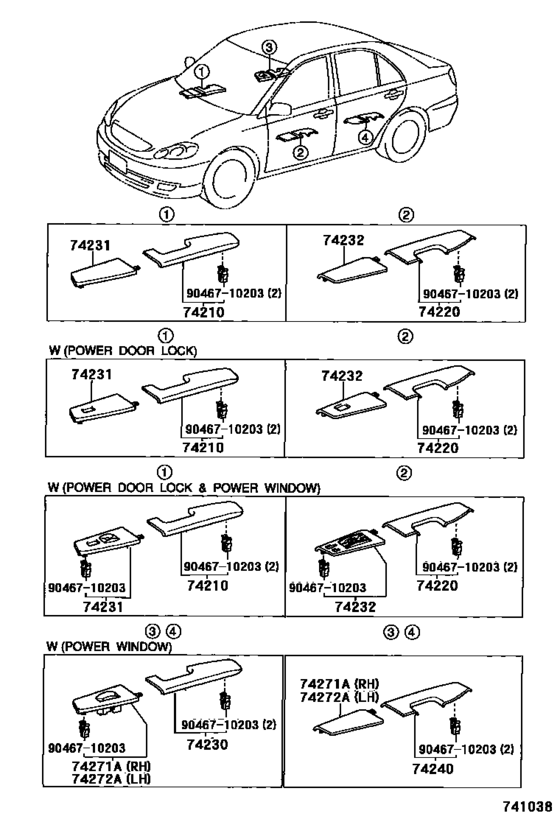

Armrest & Visor ([01.2002 - ] ARMREST (0201- )ZZE130,131..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74210
|
74210
74210-02121-B1
Armrest Assy, Front, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
74210-02121-B1 |
— | ||
| replacement | |||||
|
74210
|
74210
74210-12251-B1
Armrest Assy, Front, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
74210-12251-B1 |
— | ||
|
74220
|
74220
74220-02091-B1
Armrest Assy, Front, Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
74220-02091-B1 |
— | ||
| replacement | |||||
|
74220
|
74220
74220-12191-B1
Armrest Assy, Front, Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
74220-12191-B1 |
— | ||
|
74230
|
74230
74210-02121-B1
Armrest Assy, Front, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
74210-02121-B1 |
— | ||
| replacement | |||||
|
74230
|
74230
74210-12251-B1
Armrest Assy, Front, Rh
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
74210-12251-B1 |
— | ||
|
74231
|
74231
74231-02500
Panel, Front Armrest Base, Upper Rh
[05.2004 - 07.2006] ZZE131..NAP W(POWER DOOR LOCK & POWER WINDOW),SILVER PAINTED |
74231-02500 |
— | ||
|
74231
|
74231
74231-02510
Panel, Front Armrest Base, Upper Rh
[05.2004 - 07.2006] ZZE131..NAP W(POWER DOOR LOCK),SILVER PAINTED |
74231-02510 |
— | ||
|
74232
|
74232
74232-02500
Panel, Front Armrest Base, Upper Lh
[05.2004 - 07.2006] ZZE131..NAP W(POWER DOOR LOCK & POWER WINDOW),SILVER PAINTED |
74232-02500 |
— | ||
|
74232
|
74232
74232-02510
Panel, Front Armrest Base, Upper Lh
[05.2004 - 07.2006] ZZE131..NAP W(POWER DOOR LOCK),SILVER PAINTED |
74232-02510 |
— | ||
|
74240
|
74240
74220-02091-B1
Armrest Assy, Front, Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
74220-02091-B1 |
— | ||
| replacement | |||||
|
74240
|
74240
74220-12191-B1
Armrest Assy, Front, Lh
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
74220-12191-B1 |
— | ||
|
74271A
|
74271A
74271-02130
Panel, Rear Door Armrest Base, Upper Rh
[05.2004 - 07.2006] ZZE131..NAP W(POWER WINDOW),SILVER PAINTED |
74271-02130 |
— | ||
|
74271A
|
74271A
74271-02140
Panel, Rear Door Armrest Base, Upper Rh
[05.2004 - 07.2006] ZZE131..NAP SILVER PAINTED |
74271-02140 |
— | ||
|
74272A
|
74272A
74272-02120
Panel, Rear Door Armrest Base, Upper Lh
[05.2004 - 07.2006] ZZE131..NAP W(POWER WINDOW),SILVER PAINTED |
74272-02120 |
— | ||
|
74272A
|
74272A
74272-02130
Panel, Rear Door Armrest Base, Upper Lh
[05.2004 - 07.2006] ZZE131..NAP SILVER PAINTED |
74272-02130 |
— | ||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
