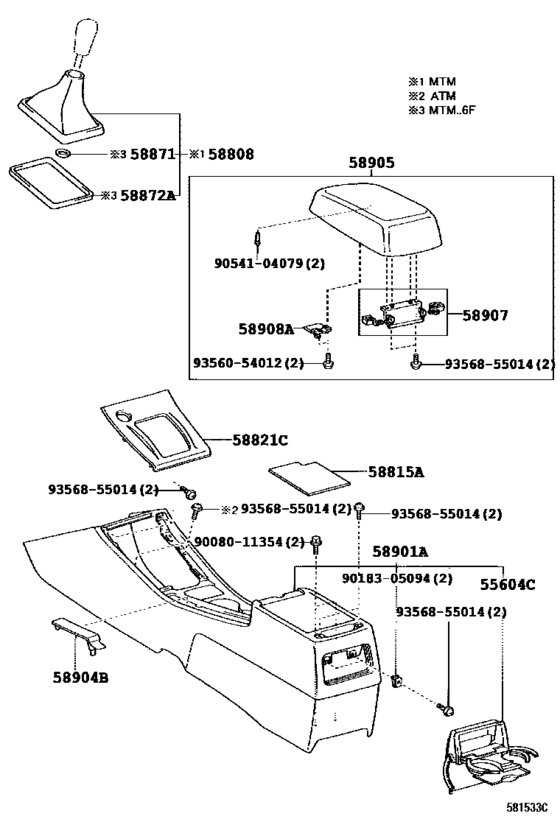

Console Box & Bracket ([01.2002 - ] (0201- )NAP..CE,S) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55604C
|
55604C
55604-AB010-B1 Holder Sub-Assy, Console Box Cup[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
55604-AB010-B1 |
US $77.17 |
||
|
58808
|
58808
58808-12270-B0
Cover Sub-Assy, Shifting Hole
[05.2004 - 07.2006] ZZE131..NAP DK.GRAY,TRIM1# |
58808-12270-B0 |
— | ||
|
58815A
|
58815A
58815-02030
Carpet, Console Box
[05.2004 - 07.2006] ZZE131..NAP |
58815-02030 |
— | ||
|
58821C
|
58821C
58821-02250-B0
Panel, Console, Upper
[05.2004 - 07.2006] ZZE131..NAP SILVER,TRIM1# |
58821-02250-B0 |
— | ||
|
58871
|
58871
58871-20060 Cushion, Console Box[05.2004 - 07.2006] ZZE133..NAP; ZZE131..NAP |
58871-20060 |
US $2.10 |
||
|
58872A
|
58872A
58872-12020
Cushion, Console Box, No.2
[05.2004 - 07.2006] ZZE131..NAP |
58872-12020 |
— | ||
|
58901A
|
58901A
58901-02130-B1
Box Sub-Assy, Console, Rear
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
58901-02130-B1 |
— | ||
|
58904B
|
58904B
58904-02060-B1
Cover Sub-Assy, Parking Brake Hole
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
58904-02060-B1 |
— | ||
|
58905
|
58905
58905-02220-B1
Door Sub-Assy, Console Compartment
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
58905-02220-B1 |
— | ||
|
58907
|
58907
58907-02020 Hinge Sub-Assy, Console Compartment Door[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
58907-02020 |
US $24.32 |
||
|
58908A
|
58908A
58908-02020 Lock Sub-Assy, Console Compartment Door[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
58908-02020 |
US $6.99 |
||
|
9008011354
|
9008011354
90080-11354 New Genuine Part |
90080-11354 |
US $0.52 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9054104079
|
9054104079
90541-04079 Cushion(For Glove Compartment Door) |
90541-04079 |
from US $1.22 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.66 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
