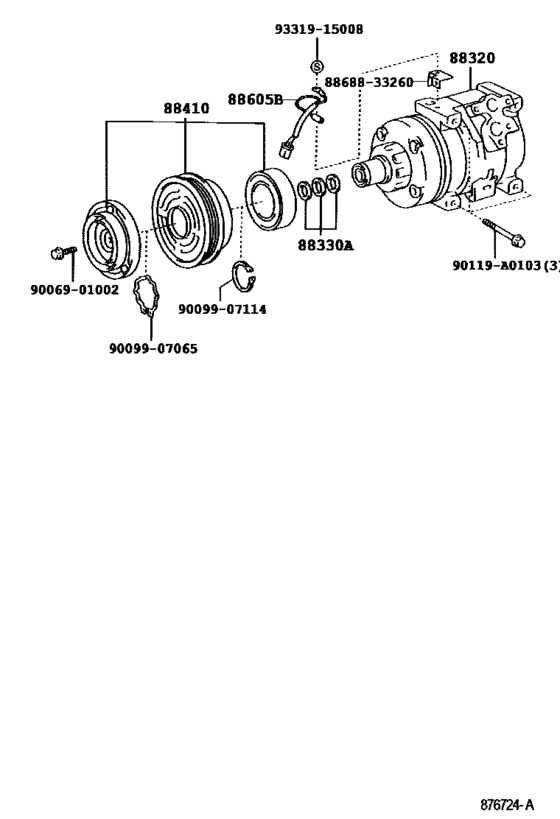

Heating & Air Conditioning - Compressor ([05.2004 - ] (0405- )NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-02120
Compressor Assy, Cooler
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
88320-02120 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
88335-14020 |
from US $1.25 |
||
|
88410
|
88410
88410-02130 Clutch Assy, Magnet[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
88410-02130 |
US $585.31 |
||
|
88605B
|
88605B
88605-35420 Harness Sub-Assy, Air Conditioner Wiring[05.2004 -] ZZE132,133,134..NAP; ZZE130,131..NAP |
88605-35420 |
US $6.64 |
||
|
90119A0103
|
90119A0103
90119-A0103
New Genuine Part
|
90119-A0103 |
— | ||
|
8868833260
|
8868833260
88688-33260
Bracket, Cooler Compressor
|
88688-33260 |
— | ||
|
9006901002
|
9006901002
90069-01002 New Genuine Part |
90069-01002 |
US $1.31 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
