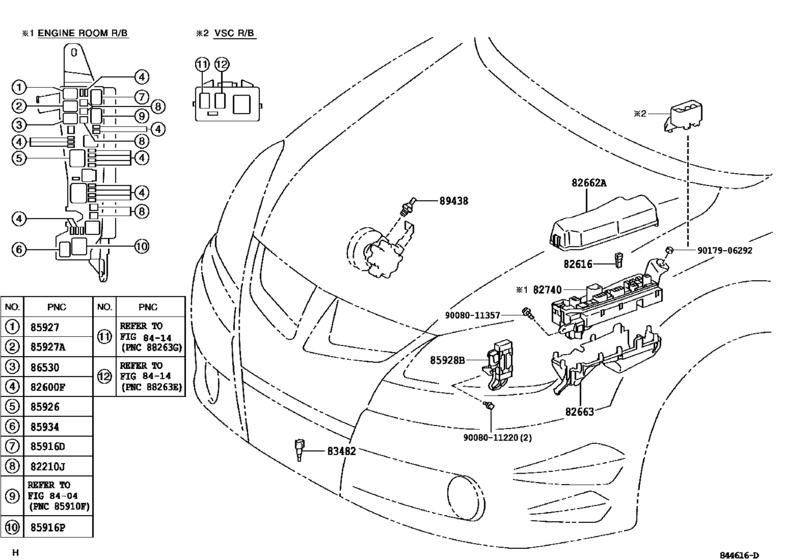

Switch & Relay & Computer ([01.2002 - ] ENGINE ROOM (0201- )NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08246 Fusible Link[05.2004 - 07.2006] ZZE131..NAP 100A,TERMINAL:MALE |
90982-08246 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08282 Fusible Link[05.2004 - 07.2006] ZZE131..NAP 50A,TERMINAL:FEMALE |
90982-08282 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[05.2004 - 07.2006] ZZE131..NAP 30A,TERMINAL:FEMALE |
90982-08283 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[05.2004 - 07.2006] ZZE131..NAP 40A,TERMINAL:FEMALE |
90982-08284 |
from US $9.44 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[05.2004 -] ZZE132,133,134..NAP 10A,MINI FUSE; ZZE130,131..NAP 10A,MINI FUSE |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[05.2004 -] ZZE132,133,134..NAP 15A,MINI FUSE; ZZE130,131..NAP 15A,MINI FUSE |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82023 Instrument Panel Fuse[05.2004 -] ZZE132,133,134..NAP 20A,MINI FUSE; ZZE130,131..NAP 20A,MINI FUSE |
90080-82023 |
US $1.46 |
||
|
82600F
|
82600F
90080-82024 Fusible Link[05.2004 -] ZZE132,133,134..NAP 30A,MINI FUSE; ZZE130,131..NAP 30A,MINI FUSE |
90080-82024 |
US $1.60 |
||
|
82600F
|
82600F
90080-82031 Instrument Panel Fuse[05.2004 -] ZZE132,133,134..NAP 5A,MINI FUSE; ZZE130,131..NAP 5A,MINI FUSE |
90080-82031 |
US $1.16 |
||
|
82600F
|
82600F
90080-82033
Fuse, Fuse Block
[05.2004 -] ZZE132,133,134..NAP 25A,MINI FUSE; ZZE130,131..NAP 25A,MINI FUSE |
90080-82033 |
— | ||
|
82616
|
82616
82616-20010 Puller, Fuse[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
82616-20010 |
from US $2.36 |
||
|
82662A
|
82662A
82662-02170
Cover, Relay Block, Upper, No.1
[05.2004 - 07.2006] ZZE131..NAP |
82662-02170 |
— | ||
|
82663
|
82663
82663-02020 Cover, Relay Block, Lower[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
82663-02020 |
US $52.35 |
||
|
82740
|
82740
82741-02040 Block Assy, Engine Room Relay[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
82741-02040 |
US $193.88 |
||
|
83482
|
83482
83482-02010 Sensor, Outer Ambient Temperature[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
83482-02010 |
US $64.75 |
||
|
85916D
|
85916D
90080-87010 Relay, Ignition, No.1[05.2004 - 07.2006] ZZE133,134..NAP SIEMENS; ZZE131..NAP SIEMENS |
90080-87010 |
US $14.27 |
||
|
85916D
|
85916D
90080-87026
Relay, Water Pump
[05.2004 - 07.2006] ZZE133,134..NAP DENSO; ZZE131..NAP DENSO |
90080-87026 |
— | ||
| replacement | |||||
|
85916D
|
85916D
90987-02027 Relay[05.2004 - 07.2006] ZZE133,134..NAP DENSO; ZZE131..NAP DENSO |
90987-02027 |
from US $44.54 |
||
|
85916P
|
85916P
90080-87024 Relay, Water PumpIGNITION, NO.1 [05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
90080-87024 |
US $63.26 |
||
|
85926
|
85926
90080-87024 Relay, Water PumpIGNITION, NO.1 [05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
90080-87024 |
US $63.26 |
||
|
85927
|
85927
90080-87010 Relay, Ignition, No.1[05.2004 - 07.2006] ZZE133,134..NAP SIEMENS; ZZE131..NAP SIEMENS |
90080-87010 |
US $14.27 |
||
|
85927
|
85927
90084-98031 Relay, Ignition, No.1[05.2004 - 07.2006] ZZE133,134..NAP DENSO; ZZE131..NAP DENSO |
90084-98031 |
US $63.48 |
||
|
85927A
|
85927A
90080-87014 Relay, Cooling Fan, No.2[05.2004 - 07.2006] ZZE133,134..NAP SIEMENS; ZZE131..NAP SIEMENS |
90080-87014 |
US $20.82 |
||
|
85927A
|
85927A
90084-98032 Relay, Cooling Fan, No.2[05.2004 - 07.2006] ZZE133,134..NAP DENSO; ZZE131..NAP DENSO |
90084-98032 |
US $81.54 |
||
|
85928B
|
85928B
85928-12010 Resistor, Cooling Fan[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
85928-12010 |
US $101.92 |
||
|
85934
|
85934
90987-02028 Relay, Water Pump[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
90987-02028 |
from US $44.54 |
||
|
86530
|
86530
90080-87026
Relay, Water Pump
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
90080-87026 |
— | ||
| replacement | |||||
|
86530
|
86530
90987-02027 Relay[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
90987-02027 |
from US $44.54 |
||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[05.2004 - 01.2008] ZZE130,131..NAP |
89438-33010 |
from US $30.23 |
||
|
9008011220
|
9008011220
90080-11220 BOLT WWASHER |
90080-11220 |
US $0.52 |
||
|
9008011357
|
9008011357
90080-11357
New Genuine Part
|
90080-11357 |
— | ||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.60 |
||
