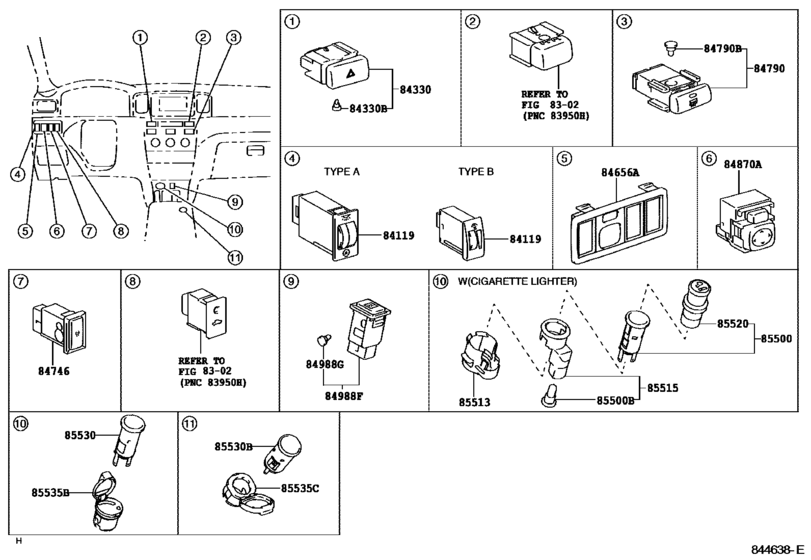

Switch & Relay & Computer ([01.2002 - ] INSTRUMENT PANEL (0201- )ZZE130,131..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-02030
Rheostat, Light Control
[05.2004 - 08.2005] ZZE131..NAP;ZZE130..NAP..LE TYPE B:REFER TO ILLUSTRATION |
84119-02030 |
— | ||
|
84119
|
84119
84119-02060
Rheostat, Light Control
[08.2005 - 07.2006] ZZE131..NAP TYPE B:REFER TO ILLUSTRATION |
84119-02060 |
— | ||
|
84330
|
84330
84332-02100
Switch Assy, Hazard Warning Signal
[05.2004 - 07.2006] ZZE131..NAP |
84332-02100 |
— | ||
|
84330B
|
84330B
90011-01002
Bulb, Seat Heater Switch
[05.2004 - 07.2006] ZZE131..NAP 14V 0.91W |
90011-01002 |
— | ||
|
84656A
|
84656A
84656-12130-B0
Bezel, Switch
[05.2004 - 01.2008] ZZE130,131..NAP..S DK.GRAY,TRIM1# |
84656-12130-B0 |
— | ||
|
84746
|
84746
84746-02010
Switch, Tire Pressure Warning
[05.2004 -] ZZE132,133,134..NAP; ZZE130,131..NAP |
84746-02010 |
— | ||
|
84790
|
84790
84790-02090
Switch Assy, Rear Window Defogger
[05.2004 - 07.2006] ZZE131..NAP |
84790-02090 |
— | ||
|
84790B
|
84790B
90011-01024
Bulb(For Rear Window Defogger Switch)
[05.2004 - 07.2006] ZZE131..NAP 14V 1.12W |
90011-01024 |
— | ||
|
84870A
|
84870A
84872-02060
Switch Assy, Outer Mirror
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
84872-02060 |
— | ||
|
85500
|
85500
85500-02011 Lighter Assy, Cigarette[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
85500-02011 |
US $40.04 |
||
|
85500B
|
85500B
90011-01014 Bulb, Cigarette Lighter[05.2004 - 07.2006] ZZE133,134..NAP 14V 1.4W; ZZE131..NAP 14V 1.4W |
90011-01014 |
US $6.99 |
||
|
85513
|
85513
85513-02020
Cover, Cigarette Lighter
[05.2004 - 07.2006] ZZE131..NAP |
85513-02020 |
— | ||
|
85515
|
85515
85515-02041
Stay, Cigarette Lighter Bezel
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
85515-02041 |
— | ||
|
85520
|
85520
85520-06020 Knob And Element Assy, Cigarette Lighter[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
85520-06020 |
US $26.94 |
||
|
85530
|
85530
85530-06010 Socket Assy, Power Outlet, No.1[05.2004 - 07.2006] ZZE133,134..NAP W(CIGARETTE LIGHTER); ZZE131..NAP |
85530-06010 |
from US $26.06 |
||
|
85530B
|
85530B
85530-06010 Socket Assy, Power Outlet, No.1[05.2004 - 07.2006] ZZE131..NAP |
85530-06010 |
from US $26.06 |
||
|
85535B
|
85535B
85535-02020
Cover, Power Outlet Socket, No.1
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
85535-02020 |
— | ||
|
85535C
|
85535C
85535-02031 Cover, Power Outlet Socket, No.1[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
85535-02031 |
US $7.28 |
