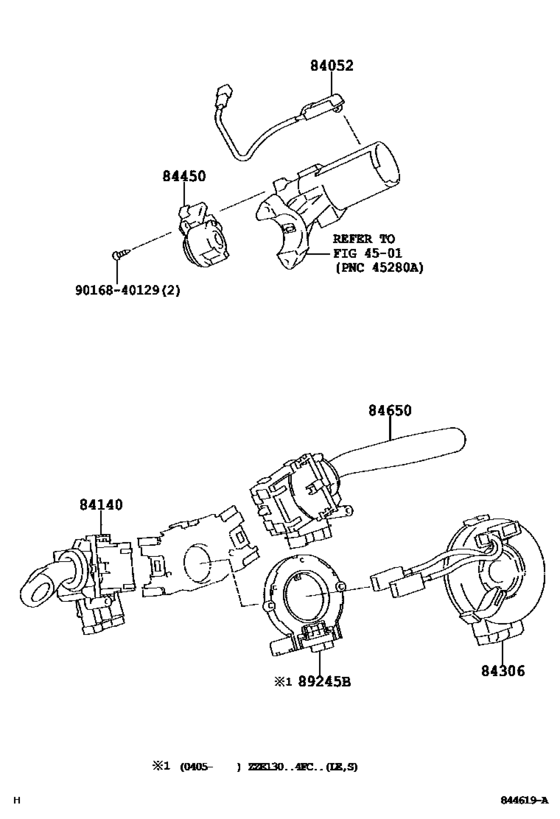

Switch & Relay & Computer ([01.2002 - ] IGNITION & COMBINATION SWITCH (0201- )NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-60010 Switch Assy, Un-Lock Warning[05.2004 - 01.2008] ZZE130,131..NAP |
84052-60010 |
US $18.70 |
||
|
84140
|
84140
84140-02170
Switch Assy, Headlamp Dimmer
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
84140-02170 |
— | ||
|
84140
|
84140
84140-02200
Switch Assy, Headlamp Dimmer
[05.2004 - 07.2006] ZZE133,134..NAP W(FRONT FOG LAMP); ZZE131..NAP W(FRONT FOG LAMP) |
84140-02200 |
— | ||
|
84306
|
84306
84306-02110 Cable Sub-Assy, Spiral[05.2004 -] ZZE132,133,134..NAP; ZZE130,131..NAP |
84306-02110 |
US $279.55 |
||
|
84450
|
84450
84450-52010 Switch Assy, Ignition Or Starter[05.2004 - 01.2008] ZZE130,131..NAP |
84450-52010 |
from US $76.96 |
||
|
84650
|
84650
84652-02300
Switch Assy, Windshield Wiper
[05.2004 - 01.2008] ZZE130,131..NAP |
84652-02300 |
— | ||
|
84650
|
84650
84652-02310
Switch Assy, Windshield Wiper
[05.2004 - 09.2004] ZZE132,133,134..NAP..(XR,XRS) W(INTERMITTENT WIPER); ZZE130,131..NAP..(LE,S) W(INTERMITTENT WIPER) |
84652-02310 |
— | ||
|
84650
|
84650
84652-02311
Switch Assy, Windshield Wiper
[10.2004 - 01.2008] ZZE130,131..NAP..(LE,S) W(INTERMITTENT WIPER) |
84652-02311 |
— | ||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
