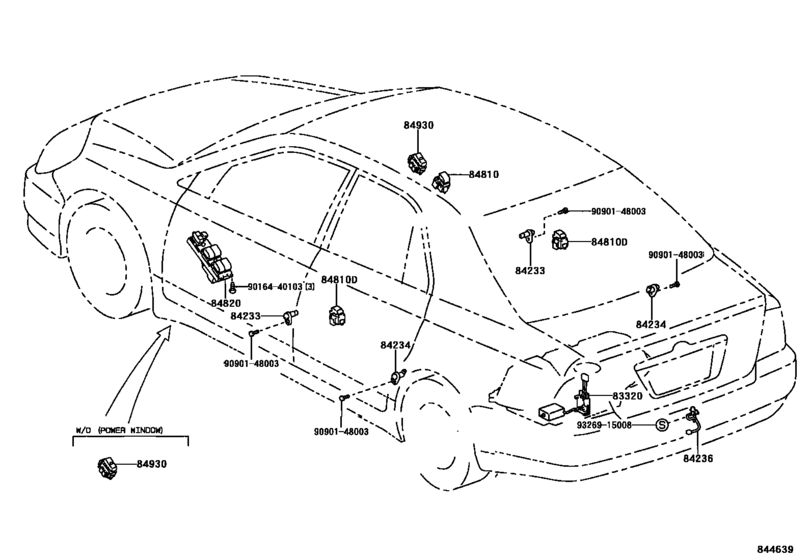

Switch & Relay & Computer ([01.2002 - ] DOOR,ROOF,FLOOR & LUGGAGE (0201- )ZZE130,131..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2004 - 2006
- Sales region
- U.S.A.
- Frame
- ZZE131
- grade
- S
- body
- SED
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 05.2004
- To
- 07.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-02010
Gage Assy, Fuel Sender
[05.2004 - 01.2008] ZZE130,131..NAP |
83320-02010 |
— | ||
|
84233
|
84233
84231-08030 Switch Assy, Courtesy Lamp (For Front Door)[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
84231-08030 |
US $10.56 |
||
|
84234
|
84234
84231-08030 Switch Assy, Courtesy Lamp (For Front Door)[05.2004 - 07.2006] ZZE131..NAP |
84231-08030 |
US $10.56 |
||
|
84236
|
84236
84231-02030
Switch Assy, Courtesy Lamp(For Luggage Compartment Room)
[05.2004 - 01.2008] ZZE130,131..NAP |
84231-02030 |
— | ||
|
84810
|
84810
84810-08010
Switch Assy, Power Window Regulator
[05.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
84810-08010 |
— | ||
|
84810D
|
84810D
84810-08010
Switch Assy, Power Window Regulator
[05.2004 - 07.2006] ZZE131..NAP |
84810-08010 |
— | ||
|
84820
|
84820
84820-01020
Master Switch Assy, Power Window Regulator
[05.2004 - 10.2004] ZZE132,133,134..NAP; ZZE130,131..NAP |
84820-01020 |
— | ||
|
84820
|
84820
84820-01021
Master Switch Assy, Power Window Regulator
[10.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
84820-01021 |
— | ||
|
84930
|
84930
84930-AA010
Switch Assy, Door Control
[05.2004 - 10.2004] ZZE132,133,134..NAP; ZZE130,131..NAP |
84930-AA010 |
— | ||
| replacement | |||||
|
84930
|
84930
84930-AA020
Switch Assy, Door Control
[05.2004 - 10.2004] ZZE132,133,134..NAP; ZZE130,131..NAP |
84930-AA020 |
— | ||
|
84930
|
84930
84930-AA020
Switch Assy, Door Control
[10.2004 - 07.2006] ZZE133,134..NAP; ZZE131..NAP |
84930-AA020 |
— | ||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
|
9326915008
|
9326915008
93269-15008 New Genuine Part |
93269-15008 |
US $0.96 |
||
