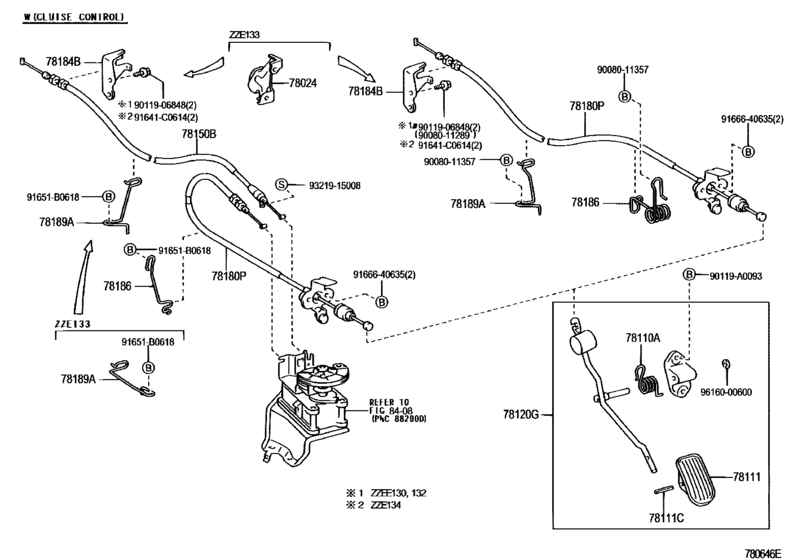

Accelerator Link ([01.2002 - 05.2004] (0201-0405)NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2002 - 2003
- Sales region
- U.S.A.
- Frame
- ZZE133
- grade
- XRS
- body
- HB
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 01.2002
- To
- 05.2003
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-88601
Bracket Sub-Assy, Accelerator Control Cable
[01.2002 - 05.2003] ZZE133..NAP..4FC |
78024-88601 |
— | ||
|
78110A
|
78110A
90508-26036 Spring (For Accelerator Pedal Rod)[01.2002 - 05.2003] ZZE133..NAP..4FC |
90508-26036 |
US $7.28 |
||
|
78110A
|
78110A
90959-03350 Spring (For Accelerator Pedal Rod)[01.2002 - 05.2003] ZZE133..NAP..4FC W(CRUISE CONTROL) |
90959-03350 |
US $3.20 |
||
|
78111
|
78111
78111-20060 Pedal, Accelerator[01.2002 - 05.2003] ZZE133..NAP..4FC |
78111-20060 |
US $11.39 |
||
|
78111C
|
78111C
90254-04019 Pin (For Accelerator Pedal)[01.2002 - 05.2003] ZZE133..NAP..4FC |
90254-04019 |
US $1.12 |
||
|
78120G
|
78120G
78120-12310 Rod Assy, Accelerator PedalACCELERATOR PEDAL [01.2002 - 05.2003] ZZE133..NAP..4FC |
78120-12310 |
US $58.24 |
||
|
78120G
|
78120G
78120-12330 Rod Assy, Accelerator PedalACCELERATOR PEDAL [01.2002 - 05.2003] ZZE133..NAP..4FC W(CRUISE CONTROL) |
78120-12330 |
US $49.65 |
||
|
78150B
|
78150B
78150-01020
Cable Assy, Accelerator Auto Drive
[01.2002 - 05.2003] ZZE133..NAP..4FC |
78150-01020 |
— | ||
|
78180P
|
78180P
78180-01040
Cable Assy, Accelerator Control
[01.2002 - 05.2003] ZZE133..NAP..4FC |
78180-01040 |
— | ||
|
78180P
|
78180P
78180-02290
Cable Assy, Accelerator Control
[01.2002 - 05.2003] ZZE133..NAP..4FC W(CRUISE CONTROL) |
78180-02290 |
— | ||
|
78186
|
78186
78186-12390 Support, Accelerator Control Cable, No.1ACCELERATOR CONTROL CABLE, NO.1 [01.2002 - 05.2003] ZZE133..NAP..4FC W(CRUISE CONTROL) |
78186-12390 |
US $5.24 |
||
|
78186
|
78186
78186-13040 Support, Accelerator Control Cable, No.1ACCELERATOR CONTROL CABLE, NO.1 [01.2002 - 05.2003] ZZE133..NAP..4FC |
78186-13040 |
US $9.03 |
||
|
78189A
|
78189A
78189-12100 Support, Accelerator Control Cable, No.2[01.2002 - 05.2003] ZZE133..NAP..4FC |
78189-12100 |
US $8.44 |
||
|
78189A
|
78189A
78189-12121 Support, Accelerator Control Cable, No.2ACCELERATOR CONTROL CABLE, NO.2 [01.2002 - 05.2003] ZZE133..NAP..4FC W(CRUISE CONTROL) |
78189-12121 |
US $5.24 |
||
|
90119A0093
|
90119A0093
90119-A0093
New Genuine Part
|
90119-A0093 |
— | ||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
from US $0.74 |
||
|
91651B0618
|
91651B0618
91651-B0618 BOLT WWASHER |
91651-B0618 |
from US $1.60 |
||
|
9008011289
|
9008011289
90080-11289
New Genuine Part
|
90080-11289 |
— | ||
|
9008011357
|
9008011357
90080-11357
New Genuine Part
|
90080-11357 |
— | ||
|
9011906848
|
9011906848
90119-06848 BOLT WWASHER |
90119-06848 |
US $0.96 |
||
|
9166640635
|
9166640635
91666-40635 New Genuine Part |
91666-40635 |
US $1.89 |
||
|
9321915008
|
9321915008
93219-15008
New Genuine Part
|
93219-15008 |
— | ||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
