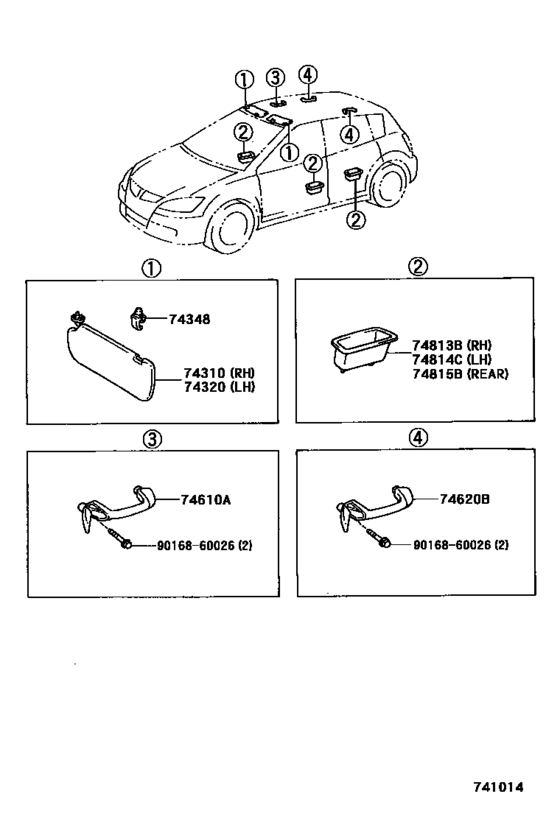

Armrest & Visor ([01.2002 - ] VISOR & ASSIST GRIP (0201- )ZZE132,133,134..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2002 - 2003
- Sales region
- U.S.A.
- Frame
- ZZE133
- grade
- XRS
- body
- HB
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 01.2002
- To
- 05.2003
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74310
|
74310
74310-01050-B1
Visor Assy, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC STONE,TRIM13,14 |
74310-01050-B1 |
— | ||
|
74320
|
74320
74320-01040-B1
Visor Assy, Lh
[01.2002 - 05.2003] ZZE133..NAP..4FC STONE,TRIM13,14 |
74320-01040-B1 |
— | ||
|
74348
|
74348
74348-02020-B0 Holder, Visor[01.2002 - 05.2003] ZZE133..NAP..4FC LT.GRAY,TRIM13,14 |
74348-02020-B0 |
US $5.53 |
||
|
74610A
|
74610A
74611-02030-B0 Grip Sub-Assy, Assist[01.2002 - 05.2003] ZZE133..NAP..4FC LT.GRAY,TRIM13,14 |
74611-02030-B0 |
US $15.72 |
||
|
74620B
|
74620B
74611-02040-B0 Grip Assy, Assist, Rear[01.2002 - 05.2003] ZZE133..NAP..4FC LT.GRAY,TRIM13,14 |
74611-02040-B0 |
US $15.72 |
||
|
74813B
|
74813B
74813-01010-B0 Handle, Front Door Pull, Rh[01.2002 - 05.2003] ZZE133..NAP..4FC DK.GRAY,TRIM13,14 |
74813-01010-B0 |
US $16.89 |
||
|
74814C
|
74814C
74813-01010-B0 Handle, Front Door Pull, Rh[01.2002 - 05.2003] ZZE133..NAP..4FC DK.GRAY,TRIM13,14 |
74813-01010-B0 |
US $16.89 |
||
|
74815B
|
74815B
74813-01010-B0 Handle, Front Door Pull, Rh[01.2002 - 05.2003] ZZE133..NAP..4FC DK.GRAY,TRIM13,14 |
74813-01010-B0 |
US $16.89 |
||
|
9016860026
|
9016860026
90168-60026 New Genuine Part |
90168-60026 |
US $0.87 |
