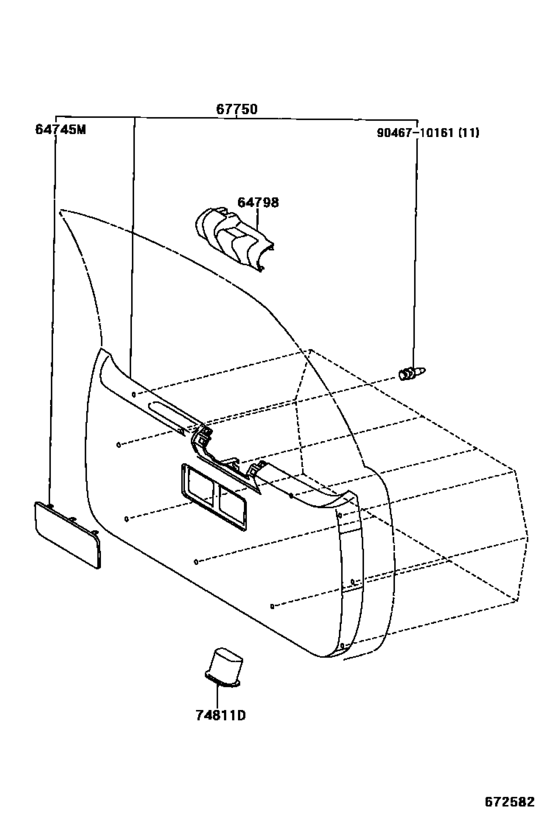

Back Door Panel & Glass ([01.2002 - ] (0201- )ZZE132,133,134..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2002 - 2003
- Sales region
- U.S.A.
- Frame
- ZZE133
- grade
- XRS
- body
- HB
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 01.2002
- To
- 05.2003
- Gear Shift Type
- 4FC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64745M
|
64745M
64745-01040-B0
Cover, License Plate Lamp Service
[01.2002 - 05.2003] ZZE133..NAP..4FC STONE,TRIM13,14 |
64745-01040-B0 |
— | ||
|
64798
|
64798
64798-02010-B0
Cover, Back Door Lock
[01.2002 - 05.2003] ZZE133..NAP..4FC STONE,TRIM13,14 |
64798-02010-B0 |
— | ||
|
67750
|
67750
67750-02030-B0
Board Assy, Back Door Trim
[01.2002 - 05.2003] ZZE133..NAP..4FC STONE,TRIM13,14 |
67750-02030-B0 |
— | ||
|
74811D
|
74811D
74811-01010 Handle, Door Pull[01.2002 - 05.2004] ZZE132,133,134..NAP |
74811-01010 |
US $8.74 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
