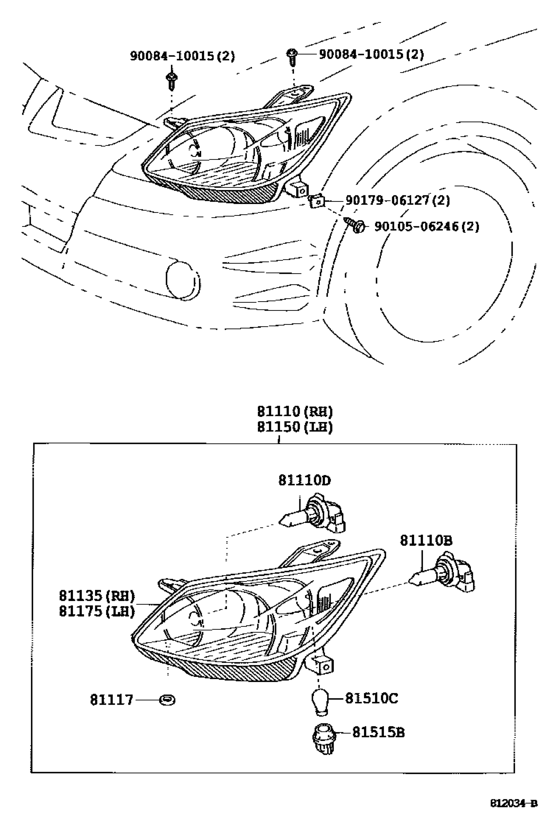

Headlamp ([01.2002 - ] (0201- )ZZE132,133,134..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2002 - 2003
- Sales region
- U.S.A.
- Frame
- ZZE133
- grade
- XRS
- body
- HB
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 01.2002
- To
- 05.2003
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-02210 Headlamp Assy, RhRH [01.2002 - 05.2003] ZZE132,133,134..NAP |
81110-02210 |
US $433.89 |
||
|
81110B
|
81110B
90080-81040
Bulb(For Headlamp, No.1)
[01.2002 - 05.2003] ZZE132,133,134..NAP 12V 51W; ZZE130..NAP 12V 51W |
90080-81040 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13047 Bulb (HB4)[01.2002 - 05.2003] ZZE132,133,134..NAP 12V 51W; ZZE130..NAP 12V 51W |
90981-13047 |
from US $17.76 |
||
|
81110D
|
81110D
90080-81041
Bulb(For Headlamp, No.1)
[01.2002 - 05.2003] ZZE132,133,134..NAP 12V 65W; ZZE130..NAP 12V 65W |
90080-81041 |
— | ||
| replacement | |||||
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[01.2002 - 05.2003] ZZE132,133,134..NAP 12V 65W; ZZE130..NAP 12V 65W |
90981-13046 |
from US $16.34 |
||
|
81117
|
81117
81117-01070 Packing, Headlamp Housing[01.2002 - 05.2003] ZZE132,133,134..NAP |
81117-01070 |
US $4.08 |
||
|
81135
|
81135
81130-02210
Unit Assy, Headlamp, Rh
[01.2002 - 05.2003] ZZE132,133,134..NAP |
81130-02210 |
— | ||
|
81150
|
81150
81150-02220 Headlamp Assy, LhLH [01.2002 - 05.2003] ZZE132,133,134..NAP |
81150-02220 |
US $433.89 |
||
|
81175
|
81175
81170-02220
Unit Assy, Headlamp, Lh
[01.2002 - 05.2003] ZZE132,133,134..NAP |
81170-02220 |
— | ||
|
81510C
|
81510C
90084-98048 Bulb (For Front Turn Signal Lamp)[01.2002 - 05.2003] ZZE132,133,134..NAP 12V 27/8W |
90084-98048 |
from US $4.60 |
||
|
81515B
|
81515B
90075-99106 Socket And Wire, Clearance Lamp[01.2002 - 05.2003] ZZE132,133,134..NAP |
90075-99106 |
from US $7.04 |
||
|
9008410015
|
9008410015
90084-10015
BOLT
|
90084-10015 |
— | ||
|
9010506246
|
9010506246
90105-06246 BOLT |
90105-06246 |
US $1.76 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.74 |
||
