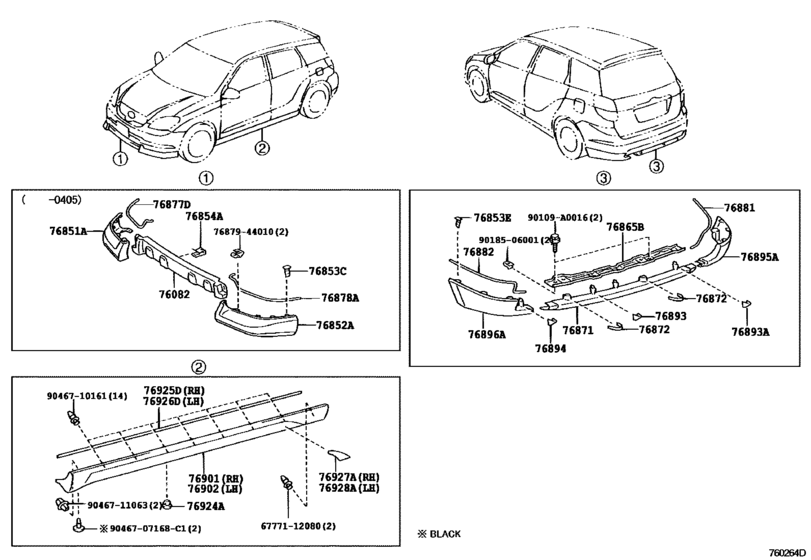

Mudguard & Spoiler ([01.2002 - ] (0201- )ZZE132,133,134..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2002 - 2003
- Sales region
- U.S.A.
- Frame
- ZZE133
- grade
- XRS
- body
- HB
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 01.2002
- To
- 05.2003
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76082
|
76082
76082-02900
Spoiler Sub-Assy, Front Center
[01.2002 - 05.2003] ZZE133..NAP..4FC |
76082-02900 |
— | ||
|
76851A
|
76851A
76851-02900
Cover, Front Spoiler, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC |
76851-02900 |
— | ||
|
76852A
|
76852A
76852-02900
Cover, Front Spoiler, Lh
[01.2002 - 05.2003] ZZE133..NAP..4FC |
76852-02900 |
— | ||
|
76853C
|
76853C
76853-10010 Retainer, Front Spoiler, Upper Rh[01.2002 - 05.2003] ZZE133..NAP..4FC |
76853-10010 |
US $3.52 |
||
|
76853E
|
76853E
76853-10010 Retainer, Front Spoiler, Upper Rh[01.2002 - 05.2003] ZZE133..NAP..4FC |
76853-10010 |
US $3.52 |
||
|
76854A
|
76854A
76854-44010 Retainer, Rear Spoiler, No.1[01.2002 - 05.2003] ZZE133..NAP..4FC |
76854-44010 |
from US $0.64 |
||
|
76865B
|
76865B
76865-02030
Retainer, Rear Spoiler
[01.2002 - 05.2003] ZZE133..NAP..4FC |
76865-02030 |
— | ||
|
76871
|
76871
76871-02901
Spoiler, Rear
[01.2002 - 05.2003] ZZE133..NAP..4FC |
76871-02901 |
— | ||
|
76872
|
76872
76872-02020-B0
Protector, Rear Spoiler, No.1
[01.2002 - 05.2003] ZZE133..NAP..4FC GRAY,040 ,1C8 ,8Q5 |
76872-02020-B0 |
— | ||
|
76872
|
76872
76872-02020-C0
Protector, Rear Spoiler, No.1
[01.2002 - 05.2003] ZZE133..NAP..4FC BLACK,209 ,3L5 ,8P4 |
76872-02020-C0 |
— | ||
|
76872
|
76872
76872-02020-E0
Protector, Rear Spoiler, No.1
[01.2002 - 05.2003] ZZE132,133,134..NAP..(XR,XRS) IVORY,4Q2 |
76872-02020-E0 |
— | ||
|
76877D
|
76877D
76877-02020-B0
Protector, Front Spoiler Side, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC GRAY,040 ,1C8 ,8Q5 |
76877-02020-B0 |
— | ||
|
76877D
|
76877D
76877-02020-C0
Protector, Front Spoiler Side, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC BLACK,209 ,3L5 ,8P4 |
76877-02020-C0 |
— | ||
|
76877D
|
76877D
76877-02020-E0
Protector, Front Spoiler Side, Rh
[01.2002 - 05.2003] ZZE132,133,134..NAP..(XR,XRS) IVORY,4Q2 |
76877-02020-E0 |
— | ||
|
76878A
|
76878A
76878-02020-B0
Protector, Front Spoiler Side, Lh
[01.2002 - 05.2003] ZZE133..NAP..4FC GRAY,040 ,1C8 ,8Q5 |
76878-02020-B0 |
— | ||
|
76878A
|
76878A
76878-02020-C0
Protector, Front Spoiler Side, Lh
[01.2002 - 05.2003] ZZE133..NAP..4FC BLACK,209 ,3L5 ,8P4 |
76878-02020-C0 |
— | ||
|
76878A
|
76878A
76878-02020-E0
Protector, Front Spoiler Side, Lh
[01.2002 - 05.2003] ZZE132,133,134..NAP..(XR,XRS) IVORY,4Q2 |
76878-02020-E0 |
— | ||
|
76881
|
76881
76881-02020-B0
Protector, Rear Spoiler Side, No.1 Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC GRAY,040 ,1C8 ,8Q5 |
76881-02020-B0 |
— | ||
|
76881
|
76881
76881-02020-C0
Protector, Rear Spoiler Side, No.1 Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC BLACK,209 ,3L5 ,8P4 |
76881-02020-C0 |
— | ||
|
76881
|
76881
76881-02020-E0
Protector, Rear Spoiler Side, No.1 Rh
[01.2002 - 05.2003] ZZE132,133,134..NAP..(XR,XRS) IVORY,4Q2 |
76881-02020-E0 |
— | ||
|
76882
|
76882
76882-02020-B0
Protector, Rear Spoiler Side, No.1 Lh
[01.2002 - 05.2003] ZZE133..NAP..4FC GRAY,040 ,1C8 ,8Q5 |
76882-02020-B0 |
— | ||
|
76882
|
76882
76882-02020-C0
Protector, Rear Spoiler Side, No.1 Lh
[01.2002 - 05.2003] ZZE133..NAP..4FC BLACK,209 ,3L5 ,8P4 |
76882-02020-C0 |
— | ||
|
76882
|
76882
76882-02020-E0
Protector, Rear Spoiler Side, No.1 Lh
[01.2002 - 05.2003] ZZE132,133,134..NAP..(XR,XRS) IVORY,4Q2 |
76882-02020-E0 |
— | ||
|
76893
|
76893
76893-02010
Cover, Rear Spoiler, No.1
[01.2002 - 05.2004] ZZE132,133,134..NAP..(XR,XRS) |
76893-02010 |
— | ||
|
76893A
|
76893A
76893-02020
Cover, Rear Spoiler, Rh
[01.2002 - 05.2004] ZZE132,133,134..NAP..(XR,XRS) |
76893-02020 |
— | ||
|
76894
|
76894
76894-02010
Cover, Rear Spoiler, Lh
[01.2002 - 05.2004] ZZE132,133,134..NAP..(XR,XRS) |
76894-02010 |
— | ||
|
76895A
|
76895A
76895-02900
Spoiler, Rear Bumper, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC |
76895-02900 |
— | ||
|
76896A
|
76896A
76896-02900
Spoiler, Rear Bumper, Lh
[01.2002 - 05.2003] ZZE133..NAP..4FC |
76896-02900 |
— | ||
|
76901
|
76901
76911-02040-A0
Mudguard Sub-Assy, Side, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC SUPER WHITE 2,040 |
76911-02040-A0 |
— | ||
|
76901
|
76901
76911-02040-B0
Mudguard Sub-Assy, Side, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC SILVER ME.,1C8 |
76911-02040-B0 |
— | ||
|
76901
|
76901
76911-02040-C0
Mudguard Sub-Assy, Side, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC BLACK MC.,209 |
76911-02040-C0 |
— | ||
|
76901
|
76901
76911-02040-D1
Mudguard Sub-Assy, Side, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC RED,3L5 |
76911-02040-D1 |
— | ||
|
76901
|
76901
76911-02040-E0
Mudguard Sub-Assy, Side, Rh
[01.2002 - 05.2003] ZZE132,133,134..NAP..(XR,XRS) BEIGE M. M.,4Q2 |
76911-02040-E0 |
— | ||
|
76901
|
76901
76911-02040-J0
Mudguard Sub-Assy, Side, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC DK.BLUE M.M.,8P4 |
76911-02040-J0 |
— | ||
|
76901
|
76901
76911-02040-J1
Mudguard Sub-Assy, Side, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC BLUE ME.,8Q5 |
76911-02040-J1 |
— | ||
|
76902
|
76902
76912-02040-A0
Mudguard Sub-Assy, Side, Lh
[01.2002 - 05.2003] ZZE133..NAP..4FC SUPER WHITE 2,040 |
76912-02040-A0 |
— | ||
|
76902
|
76902
76912-02040-B0
Mudguard Sub-Assy, Side, Lh
[01.2002 - 05.2003] ZZE133..NAP..4FC SILVER ME.,1C8 |
76912-02040-B0 |
— | ||
|
76902
|
76902
76912-02040-C0
Mudguard Sub-Assy, Side, Lh
[01.2002 - 05.2003] ZZE133..NAP..4FC BLACK MC.,209 |
76912-02040-C0 |
— | ||
|
76902
|
76902
76912-02040-D1
Mudguard Sub-Assy, Side, Lh
[01.2002 - 05.2003] ZZE133..NAP..4FC RED,3L5 |
76912-02040-D1 |
— | ||
|
76902
|
76902
76912-02040-E0
Mudguard Sub-Assy, Side, Lh
[01.2002 - 05.2003] ZZE132,133,134..NAP..(XR,XRS) BEIGE M. M.,4Q2 |
76912-02040-E0 |
— | ||
|
76902
|
76902
76912-02040-J0
Mudguard Sub-Assy, Side, Lh
[01.2002 - 05.2003] ZZE133..NAP..4FC DK.BLUE M.M.,8P4 |
76912-02040-J0 |
— | ||
|
76902
|
76902
76912-02040-J1
Mudguard Sub-Assy, Side, Lh
[01.2002 - 05.2003] ZZE133..NAP..4FC BLUE ME.,8Q5 |
76912-02040-J1 |
— | ||
|
76924A
|
76924A
76924-52021 Retainer, Side Mudguard[01.2002 - 05.2003] ZZE133..NAP..4FC |
76924-52021 |
from US $1.25 |
||
|
76925D
|
76925D
76925-02040-B0
Protector, Side Mudguard, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC GRAY,040 ,1C8 ,8Q5 |
76925-02040-B0 |
— | ||
|
76925D
|
76925D
76925-02040-C0
Protector, Side Mudguard, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC BLACK,209 ,3L5 ,8P4 |
76925-02040-C0 |
— | ||
|
76925D
|
76925D
76925-02040-E0
Protector, Side Mudguard, Rh
[01.2002 - 05.2003] ZZE132,133,134..NAP..(XR,XRS) IVORY,4Q2 |
76925-02040-E0 |
— | ||
|
76926D
|
76926D
76925-02040-B0
Protector, Side Mudguard, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC GRAY,040 ,1C8 ,8Q5 |
76925-02040-B0 |
— | ||
|
76926D
|
76926D
76925-02040-C0
Protector, Side Mudguard, Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC BLACK,209 ,3L5 ,8P4 |
76925-02040-C0 |
— | ||
|
76926D
|
76926D
76925-02040-E0
Protector, Side Mudguard, Rh
[01.2002 - 05.2003] ZZE132,133,134..NAP..(XR,XRS) IVORY,4Q2 |
76925-02040-E0 |
— | ||
|
76927A
|
76927A
76927-02020
Protector, Side Mudguard, Rear Rh
[01.2002 - 05.2003] ZZE133..NAP..4FC |
76927-02020 |
— | ||
|
76928A
|
76928A
76928-02020
Protector, Side Mudguard, Rear Lh
[01.2002 - 05.2003] ZZE133..NAP..4FC |
76928-02020 |
— | ||
|
90109A0016
|
90109A0016
90109-A0016
New Genuine Part
|
90109-A0016 |
— | ||
|
6777112080
|
6777112080
67771-12080 Clip (For No.1 Seat Back Board) |
67771-12080 |
US $1.88 |
||
|
7687944010
|
7687944010
76879-44010 Clip |
76879-44010 |
from US $0.64 |
||
|
9018506001
|
9018506001
90185-06001 New Genuine Part |
90185-06001 |
US $2.62 |
||
|
9046707168C1
|
9046707168C1
90467-07168-C1 Clip(For Rear Floor Finish Plate) |
90467-07168-C1 |
US $1.76 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
||
|
9046711063
|
9046711063
90467-11063 Clip(For Rear Bumper Retainer) |
90467-11063 |
from US $1.25 |
