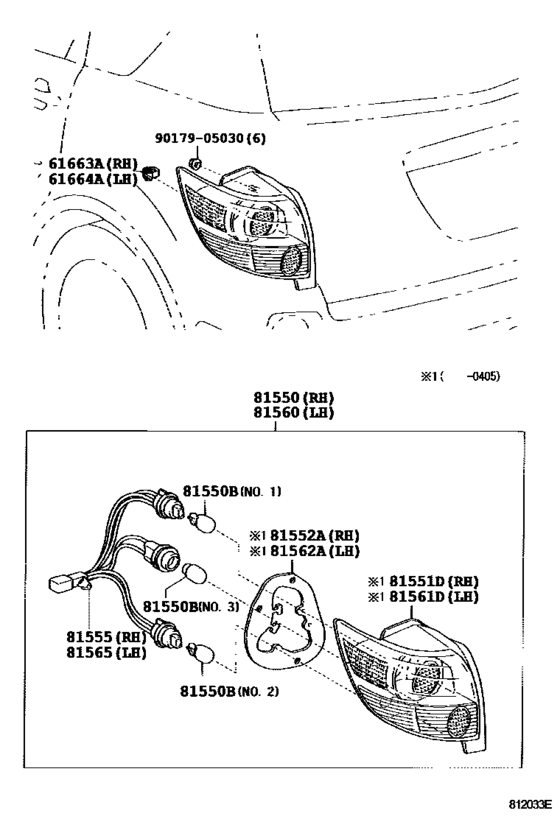

Rear Combination Lamp ([01.2002 - ] (0201- )ZZE132,133,134..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2002 - 2003
- Sales region
- U.S.A.
- Frame
- ZZE133
- grade
- XRS
- body
- HB
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 01.2002
- To
- 05.2003
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61663A
|
61663A
61663-32020 Bracket, Rear Combination Lamp Mounting[01.2002 - 05.2003] ZZE132,133,134..NAP |
61663-32020 |
US $3.20 |
||
|
61664A
|
61664A
61664-32010 Bracket, Rear Combination Lamp Mounting, Lh[01.2002 - 05.2003] ZZE132,133,134..NAP |
61664-32010 |
US $3.20 |
||
|
81550
|
81550
81550-02210
Lamp Assy, Rear Combination, Rh
[01.2002 - 05.2003] ZZE132,133,134..NAP |
81550-02210 |
— | ||
|
81550B
|
81550B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[01.2002 - 05.2004] ZZE132,133,134..NAP 12V 16W,NO.3 |
90981-11059 |
from US $3.20 |
||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[01.2002 - 05.2004] ZZE132,133,134..NAP 12V 21/5W,NO.1 |
90981-13044 |
from US $3.65 |
||
|
81550B
|
81550B
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[01.2002 - 05.2004] ZZE132,133,134..NAP 12V 21W,AMBER,NO.2 |
90981-15011 |
from US $4.60 |
||
|
81551D
|
81551D
81551-02210
Lens & Body, Rear Combination Lamp, Rh
[01.2002 - 05.2003] ZZE132,133,134..NAP |
81551-02210 |
— | ||
| replacement | |||||
|
81551D
|
81551D
81550-02210
Lamp Assy, Rear Combination, Rh
[01.2002 - 05.2003] ZZE132,133,134..NAP |
81550-02210 |
— | ||
|
81552A
|
81552A
81554-02210
Gasket, Rear Combination Lamp, Rh
[01.2002 - 05.2004] ZZE132,133,134..NAP |
81554-02210 |
— | ||
|
81555
|
81555
81555-02210
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.2002 - 05.2004] ZZE132,133,134..NAP |
81555-02210 |
— | ||
|
81560
|
81560
81560-02210
Lamp Assy, Rear Combination, Lh
[01.2002 - 05.2003] ZZE132,133,134..NAP |
81560-02210 |
— | ||
|
81561D
|
81561D
81561-02210
Lens & Body, Rear Combination Lamp, Lh
[01.2002 - 05.2003] ZZE132,133,134..NAP |
81561-02210 |
— | ||
| replacement | |||||
|
81561D
|
81561D
81560-02210
Lamp Assy, Rear Combination, Lh
[01.2002 - 05.2003] ZZE132,133,134..NAP |
81560-02210 |
— | ||
|
81562A
|
81562A
81554-02210
Gasket, Rear Combination Lamp, Rh
[01.2002 - 05.2004] ZZE132,133,134..NAP |
81554-02210 |
— | ||
|
81565
|
81565
81555-02210
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.2002 - 05.2004] ZZE132,133,134..NAP |
81555-02210 |
— | ||
|
9017905030
|
9017905030
90179-05030 NUT |
90179-05030 |
US $1.92 |
||
