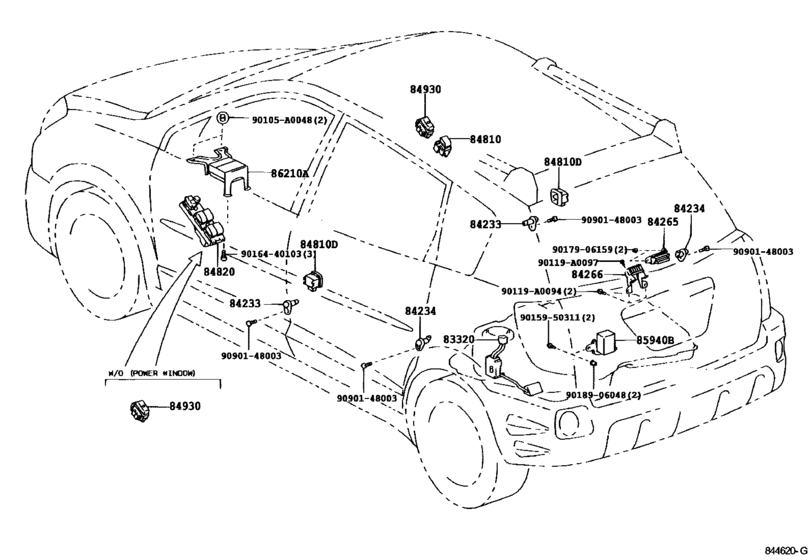

Switch & Relay & Computer ([01.2002 - ] DOOR,ROOF,FLOOR & BACK DOOR (0201- )ZZE132,133,134..NAP) Diagram Toyota COROLLA MATRIX
- Year
- 2002 - 2003
- Sales region
- U.S.A.
- Frame
- ZZE133
- grade
- XRS
- body
- HB
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- From
- 01.2002
- To
- 05.2003
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-02050
Gage Assy, Fuel Sender
[01.2002 - 05.2003] ZZE133..NAP..4FC |
83320-02050 |
— | ||
|
84233
|
84233
84231-08030 Switch Assy, Courtesy Lamp (For Front Door)[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
84231-08030 |
US $10.56 |
||
|
84234
|
84234
84231-AA030 Switch Assy, Courtesy Lamp (For Rear Door)[01.2002 - 05.2004] ZZE132,133,134..NAP |
84231-AA030 |
US $8.56 |
||
|
84265
|
84265
84265-01010 Junction, Back Door Male[01.2002 - 05.2004] ZZE132,133,134..NAP |
84265-01010 |
US $125.22 |
||
|
84266
|
84266
84266-01010 Junction, Back Door Female[01.2002 - 05.2004] ZZE132,133,134..NAP |
84266-01010 |
US $126.67 |
||
|
84810
|
84810
84810-08010
Switch Assy, Power Window Regulator
[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
84810-08010 |
— | ||
|
84810D
|
84810D
84810-01010-B0 Switch Assy, Power Window Regulator, Rear[01.2002 - 05.2003] ZZE133..NAP..4FC DK.GRAY,TRIM13,14 |
84810-01010-B0 |
US $47.76 |
||
|
84820
|
84820
84820-01020
Master Switch Assy, Power Window Regulator
[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP |
84820-01020 |
— | ||
|
84930
|
84930
84930-AA010
Switch Assy, Door Control
[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND |
84930-AA010 |
— | ||
| replacement | |||||
|
84930
|
84930
84930-AA020
Switch Assy, Door Control
[01.2002 - 05.2004] ZZE132,133,134..NAP; ZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND |
84930-AA020 |
— | ||
|
85940B
|
85940B
85940-12130 Relay Assy, Rear Wiper[01.2002 - 05.2004] ZZE132,133,134..NAP |
85940-12130 |
US $152.88 |
||
|
86210A
|
86210A
86210-12030 Inverter Assy, VoltageVOLTAGE [01.2002 - 05.2003] ZZE133..NAP..4FC |
86210-12030 |
US $384.38 |
||
|
90105A0048
|
90105A0048
90105-A0048
New Genuine Part
|
90105-A0048 |
— | ||
|
90119A0094
|
90119A0094
90119-A0094
New Genuine Part
|
90119-A0094 |
— | ||
|
90119A0097
|
90119A0097
90119-A0097
New Genuine Part
|
90119-A0097 |
— | ||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.84 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9018906048
|
9018906048
90189-06048 GROMET |
90189-06048 |
from US $1.93 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
