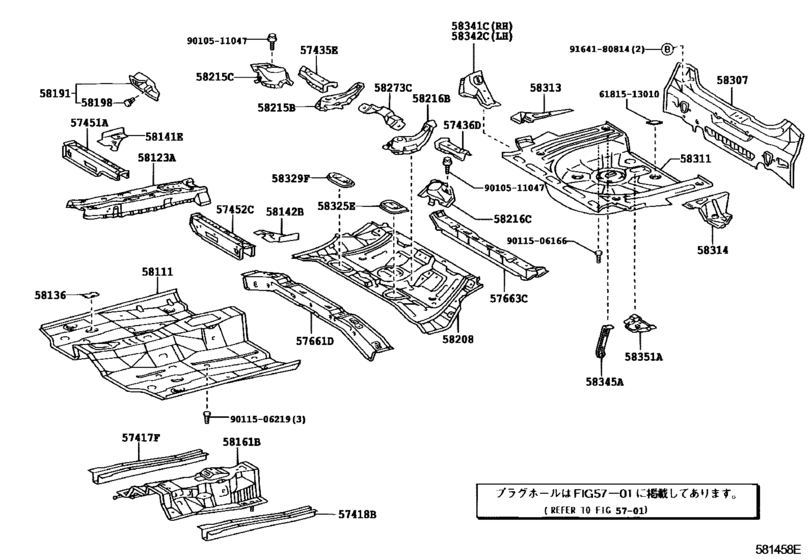

Floor Pan & Lower Back Panel ([08.2001 - ] (0108- )ZZE124) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2003
- Sales region
- Japan
- Frame
- ZZE124
- grade
- SAER
- ENGINE
- 1ZZFE
- From
- 08.2001
- To
- 04.2003
- Seating Capacity
- 05S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57417F
|
57417F
57417-13020 Reinforcement, Front Floor Under[05.2001 - 04.2003] NZE121,ZZE12# |
57417-13020 |
US $47.76 |
||
|
57418B
|
57418B
57418-13020 Reinforcement, Front Floor Under[05.2001 - 04.2003] NZE121,ZZE12# |
57418-13020 |
US $47.76 |
||
|
57435E
|
57435E
57435-13020 Member, Center Floor Side, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
57435-13020 |
US $28.39 |
||
|
57436D
|
57436D
57436-13010 Member, Center Floor Side, Lh[05.2001 - 04.2003] NZE121,ZZE12# |
57436-13010 |
US $22.13 |
||
|
57451A
|
57451A
57451-12201 Member, Front Floor Cross, Rh[08.2001 - 11.2002] ZZE124 |
57451-12201 |
US $59.40 |
||
| replacement | |||||
|
57451A
|
57451A
57051-12040 Member, Front Floor Cross, Rh[08.2001 - 11.2002] ZZE124 |
57051-12040 |
US $62.46 |
||
|
57451A
|
57451A
57451-12202 Member, Front Floor Cross, Rh[11.2002 - 04.2003] ZZE124 |
57451-12202 |
US $59.26 |
||
| replacement | |||||
|
57451A
|
57451A
57051-12040 Member, Front Floor Cross, Rh[11.2002 - 04.2003] ZZE124 |
57051-12040 |
US $62.46 |
||
|
57452C
|
57452C
57452-12031 Member, Front Floor Cross, Lh[08.2001 - 04.2003] ZZE124 |
57452-12031 |
US $64.65 |
||
|
57661D
|
57661D
57407-13130 Member, Rear Floor Cross, Front[08.2001 - 04.2003] ZZE124 |
57407-13130 |
US $251.89 |
||
|
57663C
|
57663C
57663-13010 Member, Rear Floor Cross, Center[08.2001 - 04.2003] ZZE124 |
57663-13010 |
US $154.34 |
||
|
58111
|
58111
58111-12903 Pan, Front Floor[08.2001 - 04.2003] ZZE124 |
58111-12903 |
US $559.10 |
||
| replacements | |||||
|
58111
|
58111
58111-12292 Pan, Front Floor[08.2001 - 04.2003] ZZE124 |
58111-12292 |
US $350.90 |
||
|
58111
|
58111
90950-01959 Cover, Console Box Hole[08.2001 - 04.2003] ZZE124 |
90950-01959 |
from US $1.92 |
||
|
58123A
|
58123A
58013-12050 Support, Shift & Select Lever[08.2001 - 04.2003] ZZE124 |
58013-12050 |
US $117.94 |
||
|
58136
|
58136
58136-33010 Cover, Front Floor Hole[05.2001 - 04.2003] NZE121,ZZE12# |
58136-33010 |
US $3.06 |
||
|
58141E
|
58141E
58141-13040 Reinforcement, Front Side Member To Floor Pan, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
58141-13040 |
US $4.66 |
||
|
58142B
|
58142B
58142-13020 Reinforcemnt, Front Side Member To Floor Pan, Lh[05.2001 - 04.2003] NZE121,ZZE12# |
58142-13020 |
US $4.66 |
||
|
58161B
|
58161B
57805-12091 Reinforcement, Belt Anchor To Floor Pan[08.2001 - 04.2003] ZZE124 |
57805-12091 |
US $264.99 |
||
| replacement | |||||
|
58161B
|
58161B
57805-12092 Reinforcement, Belt Anchor To Floor Pan[08.2001 - 04.2003] ZZE124 |
57805-12092 |
US $266.45 |
||
|
58191
|
58191
58191-13020 Footrest, Front Floor[05.2001 - 04.2003] NZE121,ZZE12# |
58191-13020 |
US $33.49 |
||
|
58198
|
58198
58198-13020 Clip, Footrest[05.2001 - 04.2003] NZE121,ZZE12# |
58198-13020 |
US $4.22 |
||
|
58208
|
58208
58211-13280 Pan, Center Floor[08.2001 - 04.2003] ZZE124 |
58211-13280 |
US $314.50 |
||
|
58215B
|
58215B
57805-13040 Bracket, Rear Seat Mounting, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
57805-13040 |
US $78.62 |
||
|
58215C
|
58215C
57806-13040 Reinforcement, Center Floor Panel, No.2 Rh[05.2001 - 04.2003] NZE121,ZZE12# |
57806-13040 |
US $74.26 |
||
|
58216B
|
58216B
57807-13010 Bracket, Rear Seat Mounting, Lh[05.2001 - 04.2003] NZE121,ZZE12# |
57807-13010 |
US $84.45 |
||
|
58216C
|
58216C
57808-13010 Reinforcement, Center Floor Panel, No.2 Lh[05.2001 - 04.2003] NZE121,ZZE12# |
57808-13010 |
US $74.26 |
||
|
58273C
|
58273C
58273-13020 Reinforcement, Belt Anchor To Center Floor[05.2001 - 04.2003] NZE121,ZZE12# |
58273-13020 |
US $69.89 |
||
|
58307
|
58307
58307-13160 Panel Sub-Assy, Body Lower Back[08.2001 - 04.2003] ZZE124 |
58307-13160 |
US $257.71 |
||
|
58311
|
58311
58311-13905 Pan, Rear Floor[08.2001 - 04.2003] ZZE124..05S |
58311-13905 |
US $238.78 |
||
|
58311
|
58311
58311-13910 Pan, Rear Floor[08.2001 - 04.2003] ZZE124..05S ｳｴﾙｷﾔﾌﾞ |
58311-13910 |
US $381.47 |
||
|
58313
|
58313
58313-13170 Panel, Rear Floor Side, Rh[05.2001 - 04.2003] NZE121,ZZE12#..05S ｳｴﾙｷﾔﾌﾞ |
58313-13170 |
US $36.25 |
||
|
58313
|
58313
58313-13190 Panel, Rear Floor Side, Rh[05.2001 - 04.2003] NZE121,ZZE12#..05S |
58313-13190 |
US $36.40 |
||
|
58314
|
58314
58314-13160 Panel, Rear Floor Side, Lh[05.2001 - 04.2003] NZE121,ZZE12#..05S |
58314-13160 |
US $36.40 |
||
|
58325E
|
58325E
58325-32050 Cover, Rear Floor Service Hole[08.2001 - 04.2003] ZZE124 |
58325-32050 |
US $15.14 |
||
|
58329F
|
58329F
58329-32020 Cover, Rear Floor Service Hole, No.2[08.2001 - 04.2003] ZZE124 |
58329-32020 |
US $11.21 |
||
|
58341C
|
58341C
58341-13050 Bracket, Rear Absorber Mounting, No.1 Rh[08.2001 - 04.2003] ZZE124 |
58341-13050 |
US $55.76 |
||
|
58342C
|
58342C
58342-13050 Bracket, Rear Absorber Mounting, No.1 Lh[08.2001 - 04.2003] ZZE124 |
58342-13050 |
US $55.76 |
||
|
58345A
|
58345A
58329-13020 Bracket, Rear Floor Heat Insulator, No.1[08.2001 - 04.2003] ZZE124 |
58329-13020 |
US $6.84 |
||
|
58351A
|
58351A
58351-13050 Bracket, Spare Wheel Carrier[08.2001 - 04.2003] ZZE124 |
58351-13050 |
US $11.79 |
||
|
6181513010
|
6181513010
61815-13010 Plate, Fuel Tank, Inlet Door Lock |
61815-13010 |
US $9.17 |
||
|
9010511047
|
9010511047
90105-11047 New Genuine Part |
90105-11047 |
US $1.75 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9164180814
|
9164180814
91641-80814 BOLTWWASHER |
91641-80814 |
US $1.76 |
||
