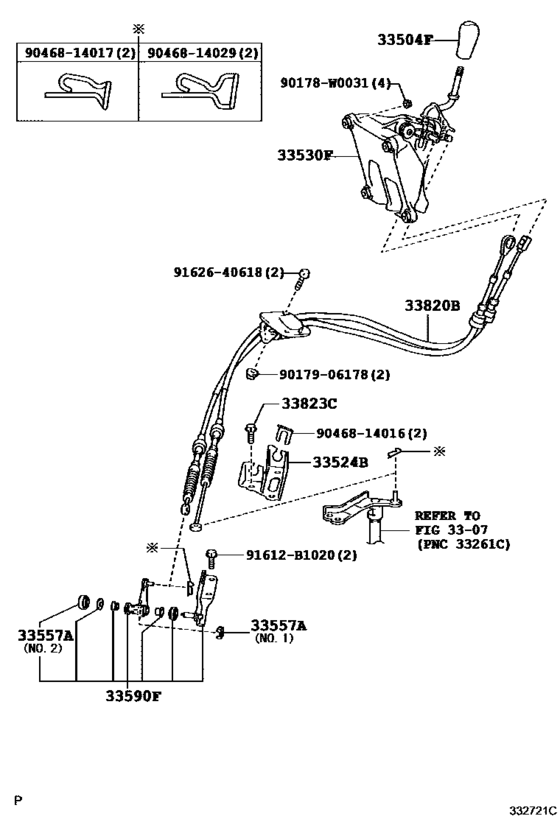

Shift Lever & Retainer ([08.2005 - ] (0508- )AUR10) Diagram Toyota COROLLA VERSO
- Year
- 2007 - 2009
- Sales region
- Europe
- Frame
- AUR10
- grade
- TERRA
- ENGINE
- 2ADFTV
- From
- 05.2007
- To
- 02.2009
- Gear Shift Type
- 6F
- Seating Capacity
- 07S
- Driver's Position
- LHD
- Fuel Induction
- DCRE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-0F010-B0
Knob Sub-Assy, Shift Lever
[05.2007 - 02.2009] AUR10..TERRA DK.GRAY,TRIM1# |
33504-0F010-B0 |
— | ||
|
33524B
|
33524B
33524-20050
Bracket, Control Cable
[05.2007 -] AUR10 |
33524-20050 |
— | ||
|
33530F
|
33530F
33530-0F010
Lever Assy, Shift (For Floor Shift)
[05.2007 - 02.2009] AUR10,ZNR1#..5F,6F |
33530-0F010 |
— | ||
|
33557A
|
33557A
33557-20010 Cover, Selecting Bellcrank Dust, No.1[05.2007 -] AUR10 NO.2 |
33557-20010 |
US $4.89 |
||
|
33557A
|
33557A
33557-33010 Bush (For Shift & Select Lever)[05.2007 -] AUR10 NO.1 |
33557-33010 |
from US $7.20 |
||
|
33590F
|
33590F
33590-20040
Crank Assy, Selecting Bell (For Floor Shift)
[05.2007 -] AUR10 |
33590-20040 |
— | ||
|
33820B
|
33820B
33820-0F030
Cable Assy, Transmission Control
[05.2007 -] AUR10 |
33820-0F030 |
— | ||
|
33823C
|
33823C
91611-G0820 Bolt[05.2007 -] AUR10 |
91611-G0820 |
from US $1.25 |
||
|
90178W0031
|
90178W0031
90178-W0031
Nut (For Transmission Control Cable)
|
90178-W0031 |
— | ||
|
91612B1020
|
91612B1020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.94 |
||
|
9046814029
|
9046814029
90468-14029 CLIP |
90468-14029 |
US $0.70 |
||
|
9162640618
|
9162640618
91626-40618 BOLTWWASHER |
91626-40618 |
US $1.44 |
