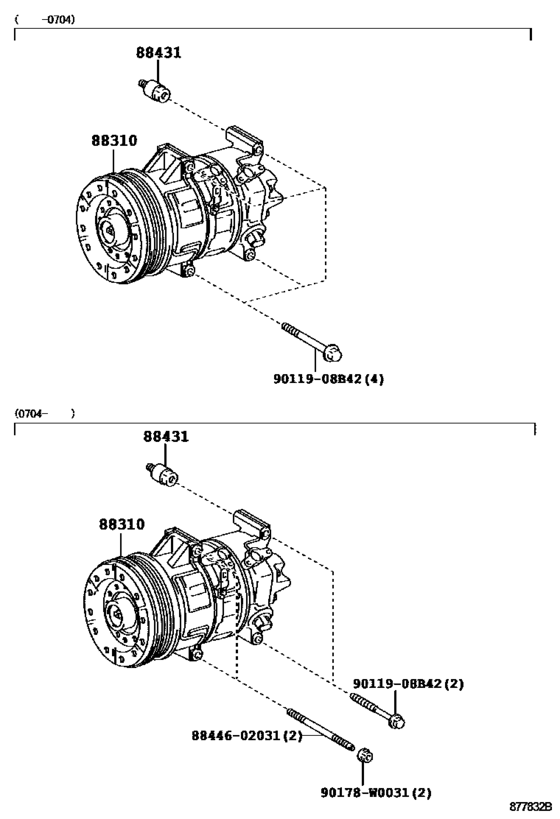

Heating & Air Conditioning - Compressor ([08.2005 - ] (0508- )AUR10) Diagram Toyota COROLLA VERSO
- Year
- 2005 - 2009
- Sales region
- Europe
- Frame
- AUR10
- grade
- SOL
- ENGINE
- 2ADFHV
- From
- 08.2005
- To
- 02.2009
- Gear Shift Type
- 6F
- Seating Capacity
- 07S
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88310
|
88310
88310-0F030
Compressor Assy, W/pulley
[08.2005 - 05.2007] AUR10..SOL; AUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
88310-0F030 |
— | ||
|
88431
|
88431
88433-20040
Bracket, Compressor Mounting, No.1
[08.2005 - 05.2007] AUR10 |
88433-20040 |
— | ||
|
90178W0031
|
90178W0031
90178-W0031
Nut (For Transmission Control Cable)
|
90178-W0031 |
— | ||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
8844602031
|
8844602031
88446-02031
Bolt, Idle Pulley
|
88446-02031 |
— |
