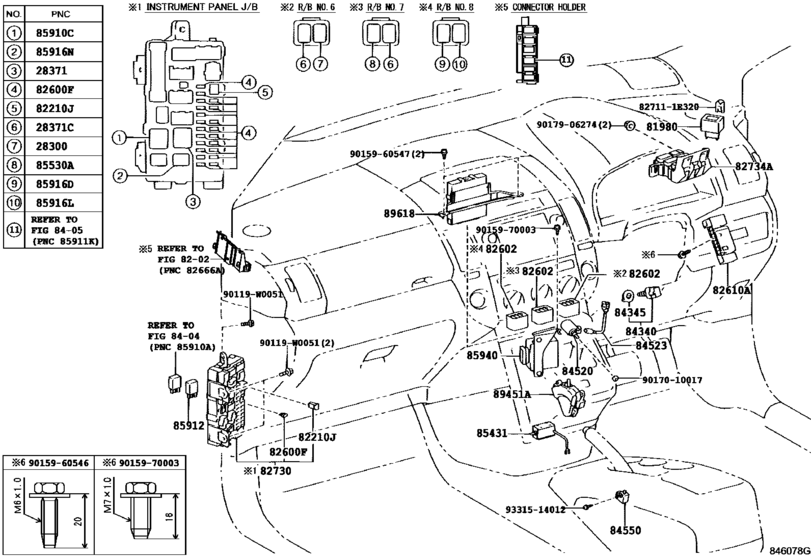

Switch & Relay & Computer ([02.2004 - ] COWL (0402- )RHD) Diagram Toyota COROLLA VERSO
- Year
- 2005 - 2009
- Sales region
- Europe
- Frame
- AUR10
- grade
- SOL
- ENGINE
- 2ADFHV
- From
- 08.2005
- To
- 02.2009
- Gear Shift Type
- 6F
- Seating Capacity
- 07S
- Driver's Position
- RHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[02.2004 - 05.2007] 2AD#,1ZZFE,3ZZFE..AUR10,ZNR1# |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[02.2004 - 05.2007] 2AD#,1ZZFE,3ZZFE..AUR10,ZNR1# |
28300-21020 |
from US $40.58 |
||
|
28371
|
28371
90080-87030 Relay, Ignition, No.1[02.2004 - 05.2007] 2AD#,1ZZFE,3ZZFE..AUR10,ZNR1# |
90080-87030 |
US $39.46 |
||
|
28371
|
28371
90987-W2001 Relay, Ignition, No.1[05.2007 -] 2AD#,1ZZFE,3ZZFE..AUR10,ZNR1# |
90987-W2001 |
US $39.46 |
||
|
28371C
|
28371C
90080-87019
Relay, Ignition, No.2
[05.2007 -] 2AD#,1ZZFE,3ZZFE..AUR10,ZNR1# |
90080-87019 |
— | ||
| replacement | |||||
|
28371C
|
28371C
90080-87021
Relay, Lamp Cut
[05.2007 -] 2AD#,1ZZFE,3ZZFE..AUR10,ZNR1# |
90080-87021 |
— | ||
|
81980
|
81980
81980-05040
Flasher Assy, Turn Signal
[02.2004 - 05.2007] AUR10,ZNR1# |
81980-05040 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-05060 Flasher Assy, Turn Signal[02.2004 - 05.2007] AUR10,ZNR1# |
81980-05060 |
US $101.92 |
||
|
81980
|
81980
81980-05060 Flasher Assy, Turn Signal[03.2008 -] AUR10,ZNR1# |
81980-05060 |
US $101.92 |
||
|
82210J
|
82210J
90982-08203 Fusible Link[02.2004 - 05.2007] AUR10,CUR10 80A,TERMINAL:MALE,ENGINE ROOM R/B,NO.2 |
90982-08203 |
from US $7.36 |
||
|
82210J
|
82210J
90982-08257 Fusible Link[02.2004 - 05.2007] AUR10,CUR10 40A,TERMINAL:MALE,ENGINE ROOM R/B |
90982-08257 |
US $11.20 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[02.2004 - 05.2007] ZNR1#..LHD 30A,TERMINAL:FEMALE,ENGINE ROOM R/B,NO.2; AUR10,CUR10,ZNR1# 30A,TERMINAL:FEMALE,ENGINE ROOM R/B |
90982-08280 |
from US $3.92 |
||
|
82210J
|
82210J
90982-08281 Fusible Link[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 40A,TERMINAL:FEMALE,ENGINE ROOM R/B |
90982-08281 |
from US $9.44 |
||
|
82210J
|
82210J
90982-08282 Fusible Link[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 50A,TERMINAL:FEMALE,ENGINE ROOM R/B |
90982-08282 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 30A,TERMINAL:FEMALE,INSTRUMENT PANEL J/B; AUR10,CUR10..LHD..DCR 30A,TERMINAL:FEMALE,ENGINE ROOM R/B,NO.2 |
90982-08283 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08285 Fusible Link[04.2006 - 05.2007] AUR10..RHD..DCRL 50A,TERMINAL:FEMALE,ENGINE ROOM R/B,NO.2 |
90982-08285 |
from US $7.04 |
||
|
82210J
|
82210J
90982-08286 Fusible Link[02.2004 - 05.2007] AUR10,CUR10 140A,TERMINAL:MALE,ENGINE ROOM R/B,NO.2 |
90982-08286 |
from US $7.68 |
||
|
82600F
|
82600F
90080-82020 Instrument Panel Fuse[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 7.5A,MINI FUSE |
90080-82020 |
US $1.75 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 10A,MINI FUSE |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 15A,MINI FUSE |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82023 Instrument Panel Fuse[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 20A,MINI FUSE |
90080-82023 |
US $1.46 |
||
|
82600F
|
82600F
90080-82024 Fusible Link[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 30A,MINI FUSE |
90080-82024 |
US $1.60 |
||
|
82600F
|
82600F
90080-82031 Instrument Panel Fuse[02.2004 - 05.2007] AUR10,ZNR1# 5A,MINI FUSE |
90080-82031 |
US $1.16 |
||
|
82600F
|
82600F
90080-82033
Fuse, Fuse Block
[02.2004 - 05.2007] AUR10,CUR10,ZNR1# 25A,MINI FUSE |
90080-82033 |
— | ||
|
82602
|
82602
82602-43040 Block Sub-Assy, Relay[02.2004 - 05.2007] AUR10,CUR10,ZNR1# |
82602-43040 |
US $16.31 |
||
|
82610A
|
82610A
82610-0F010
Block Assy, Fuse
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..RHD |
82610-0F010 |
— | ||
|
82730
|
82730
82730-0F010
Block Assy, Instrument Panel Junction
[02.2004 - 05.2007] AUR10,ZNR1#..RHD POWER DOOR LOCK-WITH |
82730-0F010 |
— | ||
|
82730
|
82730
82730-0F020
Block Assy, Instrument Panel Junction
[02.2004 - 05.2007] AUR10,ZNR1#..RHD |
82730-0F020 |
— | ||
|
82734A
|
82734A
82734-05020 Block, Center Junction[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..RHD |
82734-05020 |
US $67.56 |
||
|
84340
|
84340
84340-09020 Switch Assy, Stop Lamp[02.2004 - 05.2007] AUR10,CUR10,ZNR1# |
84340-09020 |
US $21.11 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[02.2004 - 05.2007] AUR10,CUR10,ZNR1# |
84345-51010 |
from US $3.49 |
||
|
84520
|
84520
84520-42010 Switch Assy, Clutch Start[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..5F,6F; ZNR1#..RHD..5F..SOL LUNA PACKAGE |
84520-42010 |
from US $34.13 |
||
|
84523
|
84523
84523-64010
Wire, Switch No.1
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..RHD..(5F,6F) |
84523-64010 |
— | ||
|
84550
|
84550
84550-64010
Switch Assy, Parking Brake
[02.2004 - 05.2007] AUR10,CUR10,ZNR1# |
84550-64010 |
— | ||
|
85530A
|
85530A
90080-87019
Relay, Ignition, No.2
[02.2004 - 05.2007] AUR10,ZNR1# |
90080-87019 |
— | ||
| replacement | |||||
|
85530A
|
85530A
90080-87021
Relay, Lamp Cut
[02.2004 - 05.2007] AUR10,ZNR1# |
90080-87021 |
— | ||
|
85910C
|
85910C
90080-87031
Relay Assy (For Heater Blower Motor)
[02.2004 - 05.2007] AUR10,ZNR1# |
90080-87031 |
— | ||
|
85912
|
85912
90080-87019
Relay, Ignition, No.2
[02.2004 - 05.2007] AUR10,ZNR1# |
90080-87019 |
— | ||
| replacement | |||||
|
85912
|
85912
90080-87021
Relay, Lamp Cut
[02.2004 - 05.2007] AUR10,ZNR1# |
90080-87021 |
— | ||
|
85916D
|
85916D
90080-87019
Relay, Ignition, No.2
[02.2004 - 05.2007] AUR10,ZNR1#..SOL; AUR10,ZNR1#..TERRA FRONT FOG LAMP-WITH |
90080-87019 |
— | ||
| replacement | |||||
|
85916D
|
85916D
90080-87021
Relay, Lamp Cut
[02.2004 - 05.2007] AUR10,ZNR1#..SOL; AUR10,ZNR1#..TERRA FRONT FOG LAMP-WITH |
90080-87021 |
— | ||
|
85916L
|
85916L
90080-87019
Relay, Ignition, No.2
[02.2004 - 05.2007] AUR10,ZNR1# |
90080-87019 |
— | ||
| replacement | |||||
|
85916L
|
85916L
90080-87021
Relay, Lamp Cut
[02.2004 - 05.2007] AUR10,ZNR1# |
90080-87021 |
— | ||
|
85916N
|
85916N
90080-87019
Relay, Ignition, No.2
[02.2004 - 05.2007] AUR10,ZNR1# |
90080-87019 |
— | ||
| replacement | |||||
|
85916N
|
85916N
90080-87021
Relay, Lamp Cut
[02.2004 - 05.2007] AUR10,ZNR1# |
90080-87021 |
— | ||
|
85940
|
85940
85940-0F010
Relay Assy, Windshield Wiper
[02.2004 - 05.2007] AUR10,ZNR1#..SOL; AUR10,ZNR1#..SOL..(DCR,HTWC) LUNA PACKAGE |
85940-0F010 |
— | ||
|
89618
|
89618
89618-0F020
Computer, Ignition Control
[02.2004 - 05.2007] AUR10,ZNR1#..5F,6F |
89618-0F020 |
— | ||
|
90119W0051
|
90119W0051
90119-W0051
New Genuine Part
|
90119-W0051 |
— | ||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
9015960546
|
9015960546
90159-60546 New Genuine Part |
90159-60546 |
US $0.96 |
||
|
9015960547
|
9015960547
90159-60547 New Genuine Part |
90159-60547 |
US $0.70 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.72 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.80 |
||
