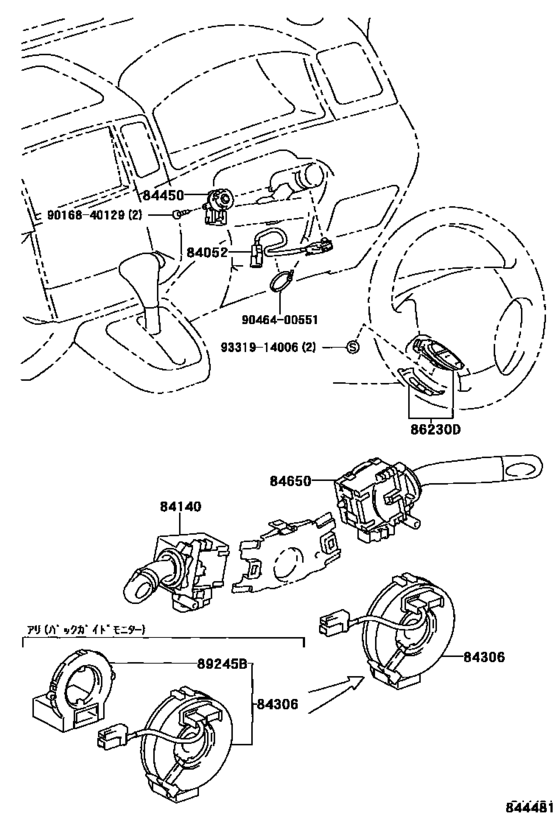

Switch & Relay & Computer ([09.2001 - ] IGNITION & COMBINATION SWITCH (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 01.2004
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-32030 Switch Assy, Un-Lock Warning[09.2001 - 01.2004] CDE120,ZZE12# |
84052-32030 |
US $16.42 |
||
|
84140
|
84140
84140-13010
Switch Assy, Headlamp Dimmer
[09.2001 - 01.2004] CDE120,ZZE12# |
84140-13010 |
— | ||
|
84140
|
84140
84140-13020 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [09.2001 - 01.2004] CDE120,ZZE12# W(FOG LAMP) |
84140-13020 |
from US $114.21 |
||
|
84306
|
84306
84306-44010 Cable Sub-Assy, Spiral[09.2001 - 01.2004] CDE120,ZZE12# W(AUDIO SWITCH) |
84306-44010 |
US $274.31 |
||
|
84306
|
84306
84306-52020 Cable Sub-Assy, Spiral[09.2001 - 01.2004] CDE120,ZZE12# |
84306-52020 |
from US $219.18 |
||
|
84306
|
84306
84307-12010 Cable Sub-Assy, Spiral[09.2001 - 01.2004] CDE120,ZZE12# W(BACK MONITOR) |
84307-12010 |
US $592.59 |
||
|
84450
|
84450
84450-52010 Switch Assy, Ignition Or Starter[09.2001 - 01.2004] CDE120,ZZE12# |
84450-52010 |
from US $76.96 |
||
|
84650
|
84650
84652-1A830 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2001 - 01.2004] CDE120,ZZE12# |
84652-1A830 |
US $157.25 |
||
| replacement | |||||
|
84650
|
84650
84652-42120 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2001 - 01.2004] CDE120,ZZE12# |
84652-42120 |
US $157.25 |
||
|
86230D
|
86230D
86230-13010
Controller Assy, Stereo Component
[09.2001 - 01.2004] CDE120,ZZE12# |
86230-13010 |
— | ||
|
89245B
|
89245B
89245-12010 Sensor, Steering[09.2001 - 01.2004] CDE120,ZZE12# |
89245-12010 |
US $216.94 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
