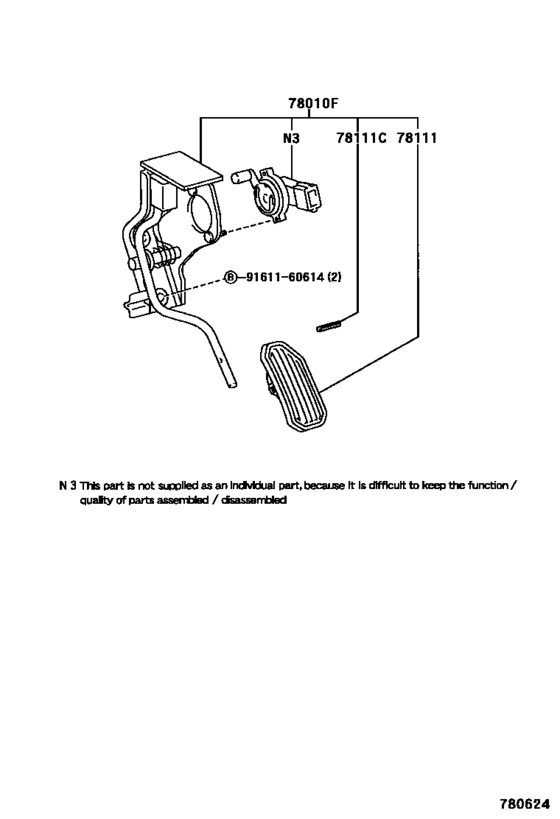

Accelerator Link ([10.2001 - ] (0110- )CDE120..RHD) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010F
|
78010F
78010-12151 Pedal Assy, Accelerator[10.2001 - 01.2004] CDE120..RHD |
78010-12151 |
US $388.75 |
||
| replacement | |||||
|
78010F
|
78010F
78010-44090 Pedal Assy, Accelerator[10.2001 - 01.2004] CDE120..RHD |
78010-44090 |
US $243.15 |
||
|
78111
|
78111
78111-32020 Pedal, Accelerator[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
78111-32020 |
US $8.44 |
||
|
78111C
|
78111C
90254-04019 Pin (For Accelerator Pedal)[09.2001 - 01.2004] ZZE122..RHD;CDE120,ZZE121;ZZE122..LHD..MTM |
90254-04019 |
US $1.12 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
