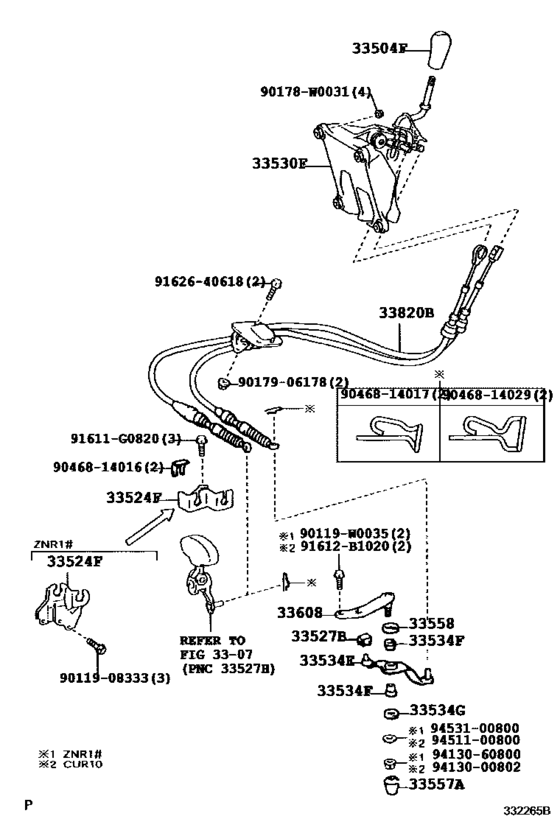

Shift Lever & Retainer ([02.2004 - ] (0402- )5F) Diagram Toyota COROLLA VERSO
- Year
- 2004 - 2005
- Sales region
- Europe
- Frame
- CUR10
- grade
- TERRA
- ENGINE
- 1CDFTV
- From
- 02.2004
- To
- 08.2005
- Gear Shift Type
- 5F
- Seating Capacity
- 07S
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-02030-B0
Knob Sub-Assy, Shift Lever
[02.2004 - 05.2007] CUR10,ZNR1#..5F..TERRA DK.GRAY,TRIM1# |
33504-02030-B0 |
— | ||
|
33524F
|
33524F
33524-28020
Bracket, Control Lever Housing Support (For Floor Shift)
[02.2004 - 08.2005] CUR10 |
33524-28020 |
— | ||
|
33527B
|
33527B
33557-33010 Bush (For Shift & Select Lever)[02.2004 - 08.2005] CUR10 |
33557-33010 |
from US $7.20 |
||
|
33530F
|
33530F
33530-0F010
Lever Assy, Shift (For Floor Shift)
[02.2004 - 05.2007] AUR10,CUR10,ZNR1#..5F,6F |
33530-0F010 |
— | ||
|
33534E
|
33534E
33534-28090
Crank, Selecting Bell, No.2
[02.2004 - 08.2005] CUR10 |
33534-28090 |
— | ||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[02.2004 - 08.2005] CUR10 |
90386-12022 |
from US $2.08 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[02.2004 - 05.2007] CUR10,ZNR1#..5F |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[02.2004 - 05.2007] CUR10,ZNR1#..5F |
33557-32010 |
from US $4.48 |
||
|
33558
|
33558
33558-10030 Cover, Selecting Bellcrank Dust, No.2[02.2004 - 05.2007] CUR10,ZNR1#..5F |
33558-10030 |
from US $3.68 |
||
|
33608
|
33608
33608-12031 Support Sub-Assy, Selecting Bellcrank[02.2004 - 08.2005] CUR10 |
33608-12031 |
US $12.38 |
||
|
33820B
|
33820B
33820-0F020
Cable Assy, Transmission Control
[02.2004 - 12.2004] CUR10 |
33820-0F020 |
— | ||
| replacement | |||||
|
33820B
|
33820B
33820-0F021
Cable Assy, Transmission Control
[02.2004 - 12.2004] CUR10 |
33820-0F021 |
— | ||
|
33820B
|
33820B
33820-0F021
Cable Assy, Transmission Control
[01.2005 - 08.2005] CUR10 |
33820-0F021 |
— | ||
|
90119W0035
|
90119W0035
90119-W0035
Bolt (For Transfer Case)Cover No.2
|
90119-W0035 |
— | ||
| replacement | |||||
|
90119W0035
|
90119W0035
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
90178W0031
|
90178W0031
90178-W0031
Nut (For Transmission Control Cable)
|
90178-W0031 |
— | ||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.25 |
||
|
91612B1020
|
91612B1020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9011908333
|
9011908333
90119-08333 BOLT |
90119-08333 |
US $1.92 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.94 |
||
|
9046814029
|
9046814029
90468-14029 CLIP |
90468-14029 |
US $0.70 |
||
|
9162640618
|
9162640618
91626-40618 BOLTWWASHER |
91626-40618 |
US $1.44 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001 New Genuine Part |
90170-A0001 |
US $1.59 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.72 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $1.93 |
||
